ENG & ENG/DSNG Combo News Vehicles

KPRC-TV

Customer Name: KPRC-TV
Location: Houston, TX
Product Name: Ford Transit 350 High Roof ENG & Combo ENG/DvB DSNG
Job #: 71970 & 71971

Project Overview:

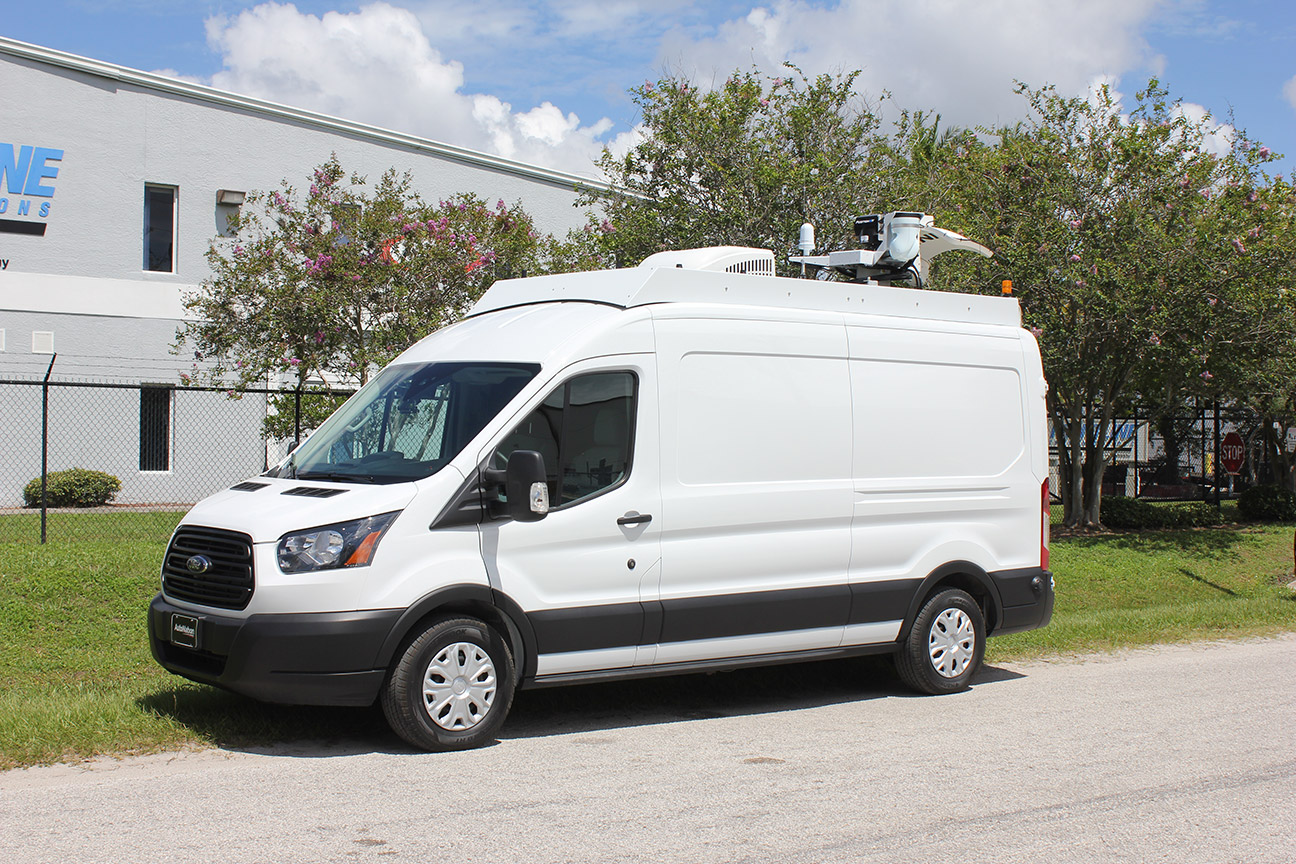

Graham Media station KPRC in Houston recently took delivery of TWO Ford Transit Diesel MR vehicles: one for ENG and one combo for ENG and DvB DSNG operations.

Technology:

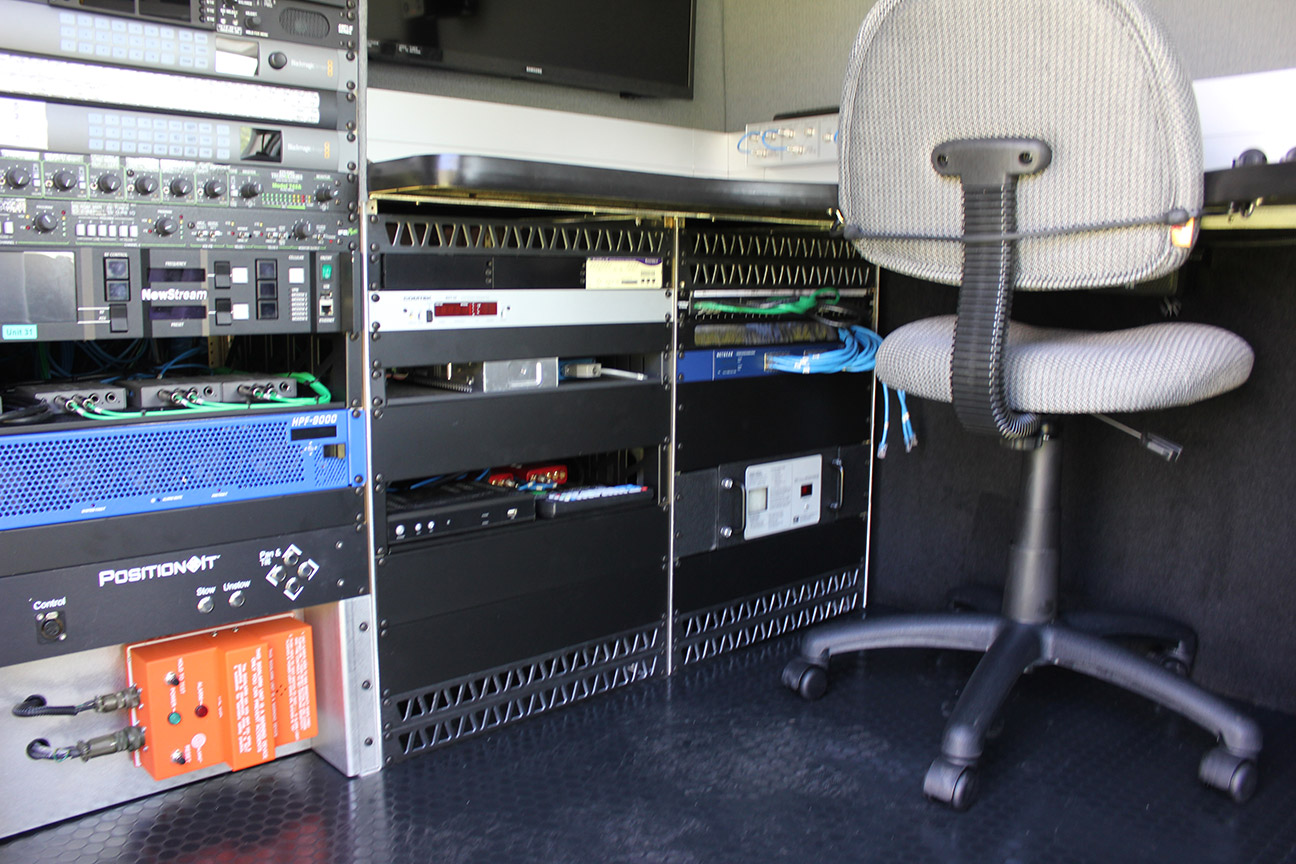

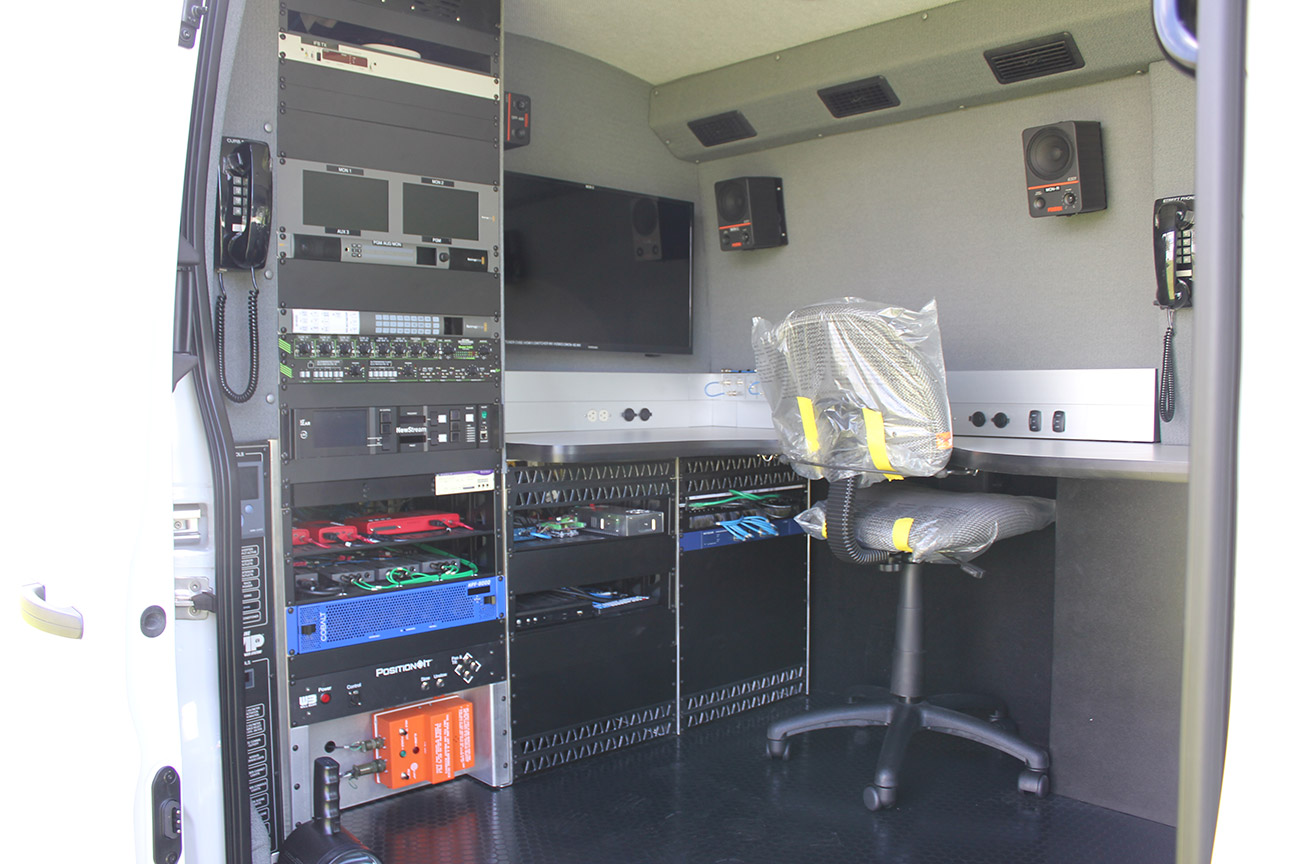

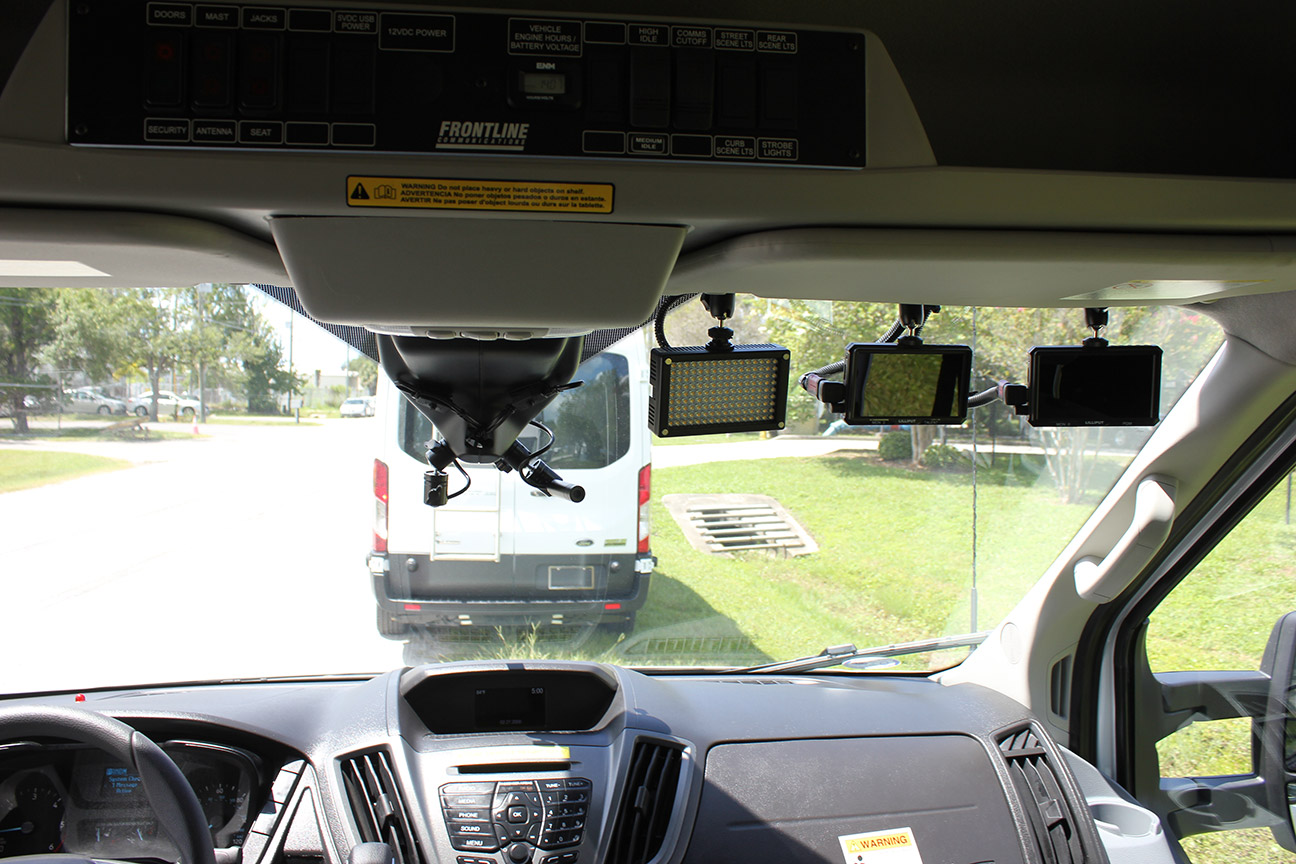

The full featured A/V system includes a Blackmagic ATEM studio switcher utilizing a Cobalt frame for clean and quiet switching and a Smart Videohub 20x20 router. The Persistent Systems 2GHZ radio system, Comtek wireless IFB allow for seamless communication with both crew and studio. The Live & Drive camera system includes our custom handheld controller to allow the talent to switch thee camera views for real-time traffic reporting on the move. An AvL 1.2m satellite antenna with Advantech 100W SSPB and Adtec EN210 encoder and RD71 IRD were installed for satellite transmission.






Download Drawing

Specifications

Vehicle Specs

Chassis

Ford Transit 350
Overall Length

22’
Slide-outs

N/A
Generator Power

Frontline VIP®
Workstations

1
HVAC

27,000 BTU Cooling/28,000 BTU Heat with auxiliary 15,000 BTU rooftop air conditioner
Vehicle Options
  • 50’ LowStow Mast (10’-6” height)
  • DSNG package
  • I/O compartment
  • Sigalarm mast warning system
