Large Mobile Command Vehicles

Frontline Communications green Large Mobile Command vehicle parked outside the building on a sunny day.

Big on size. Even bigger on capabilities.

Overview

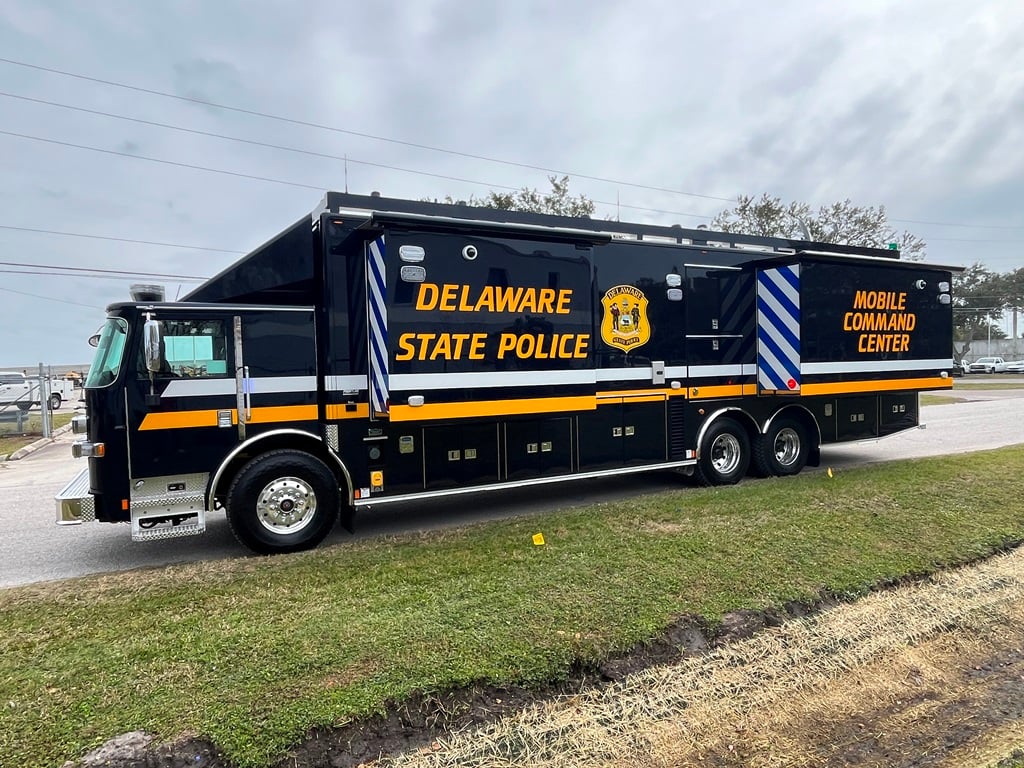

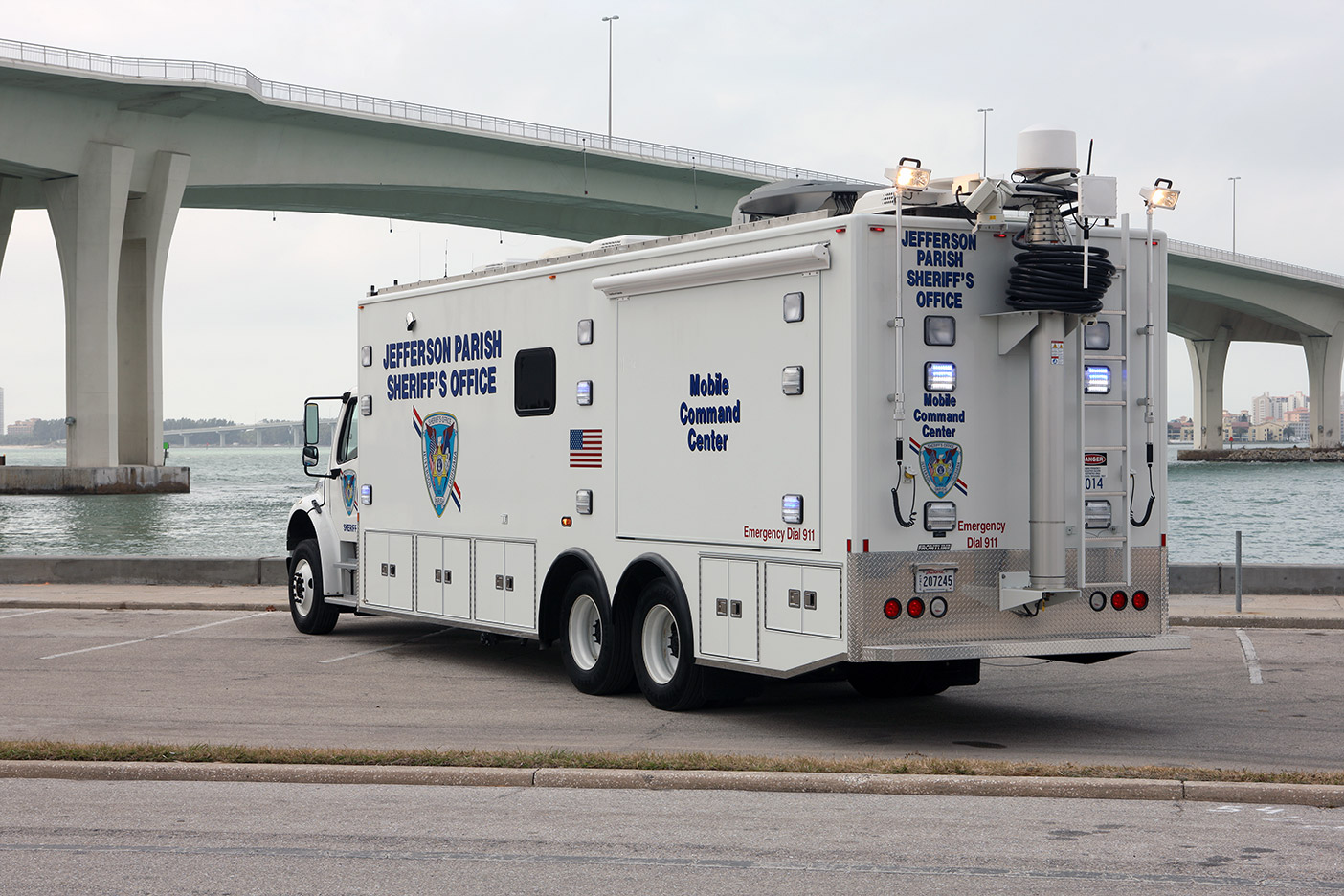

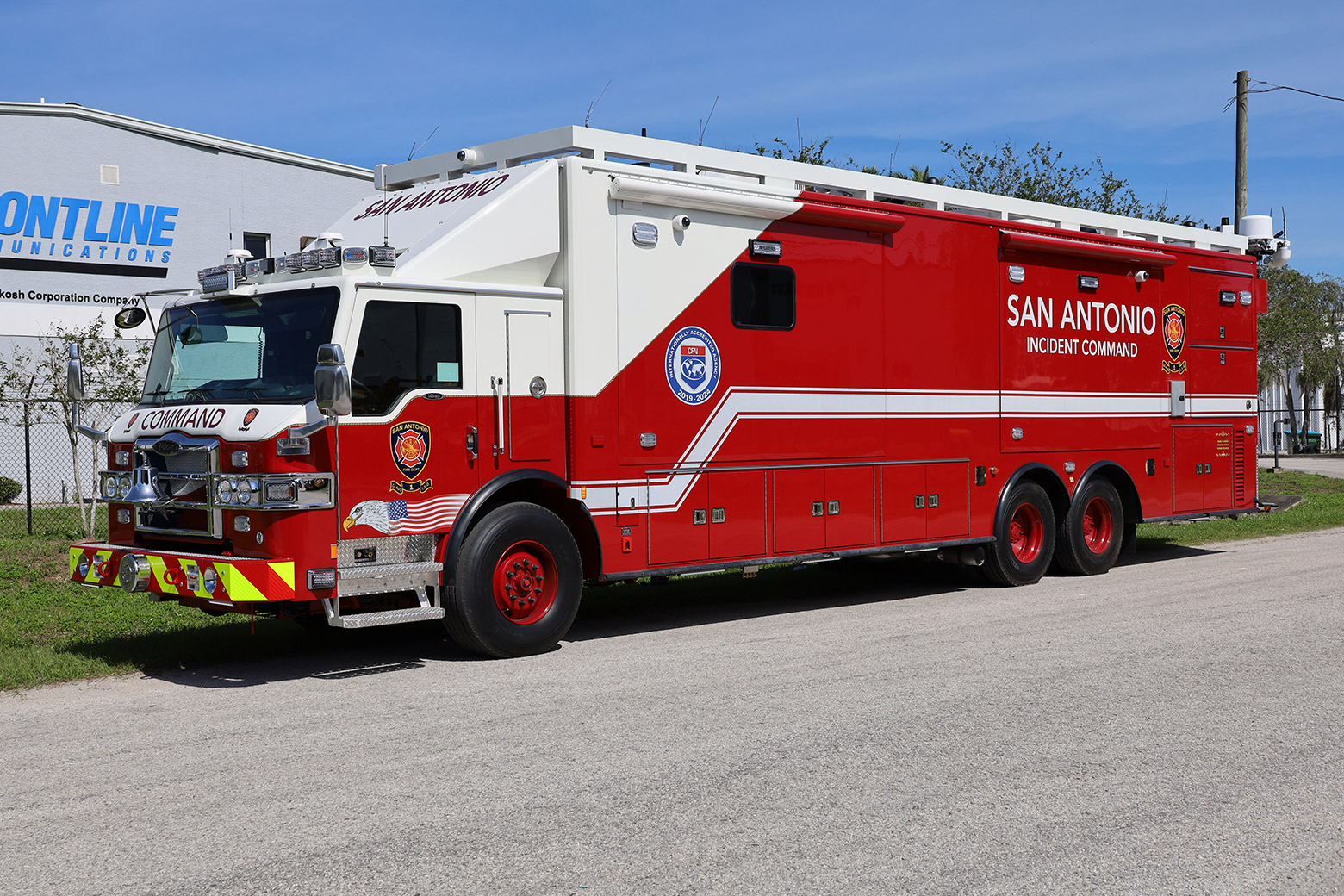

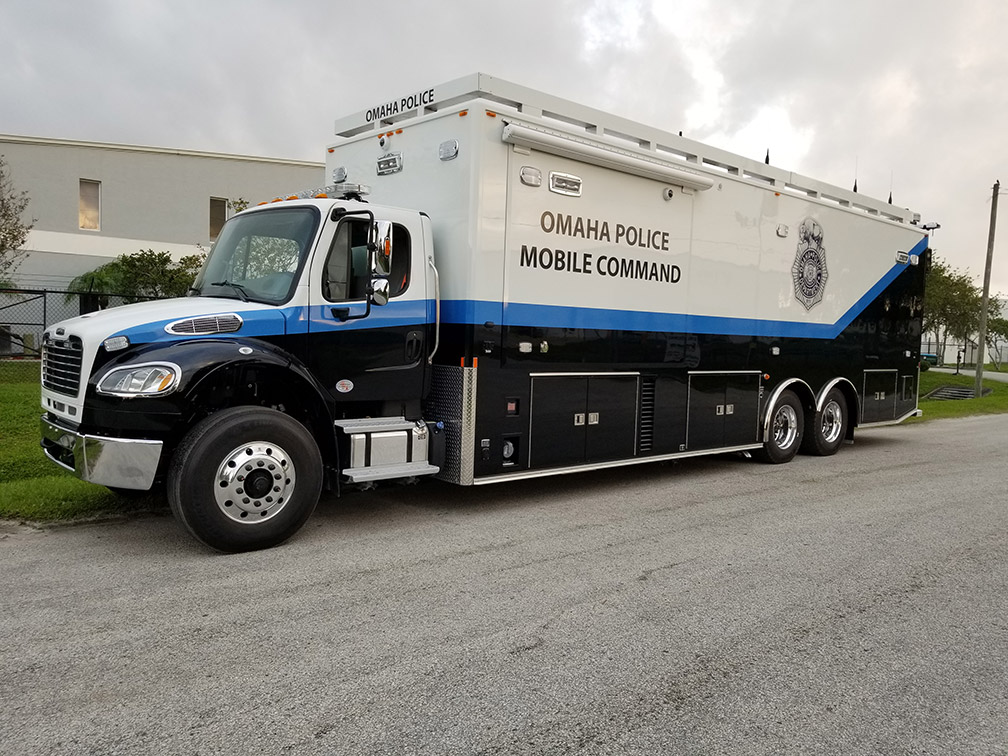

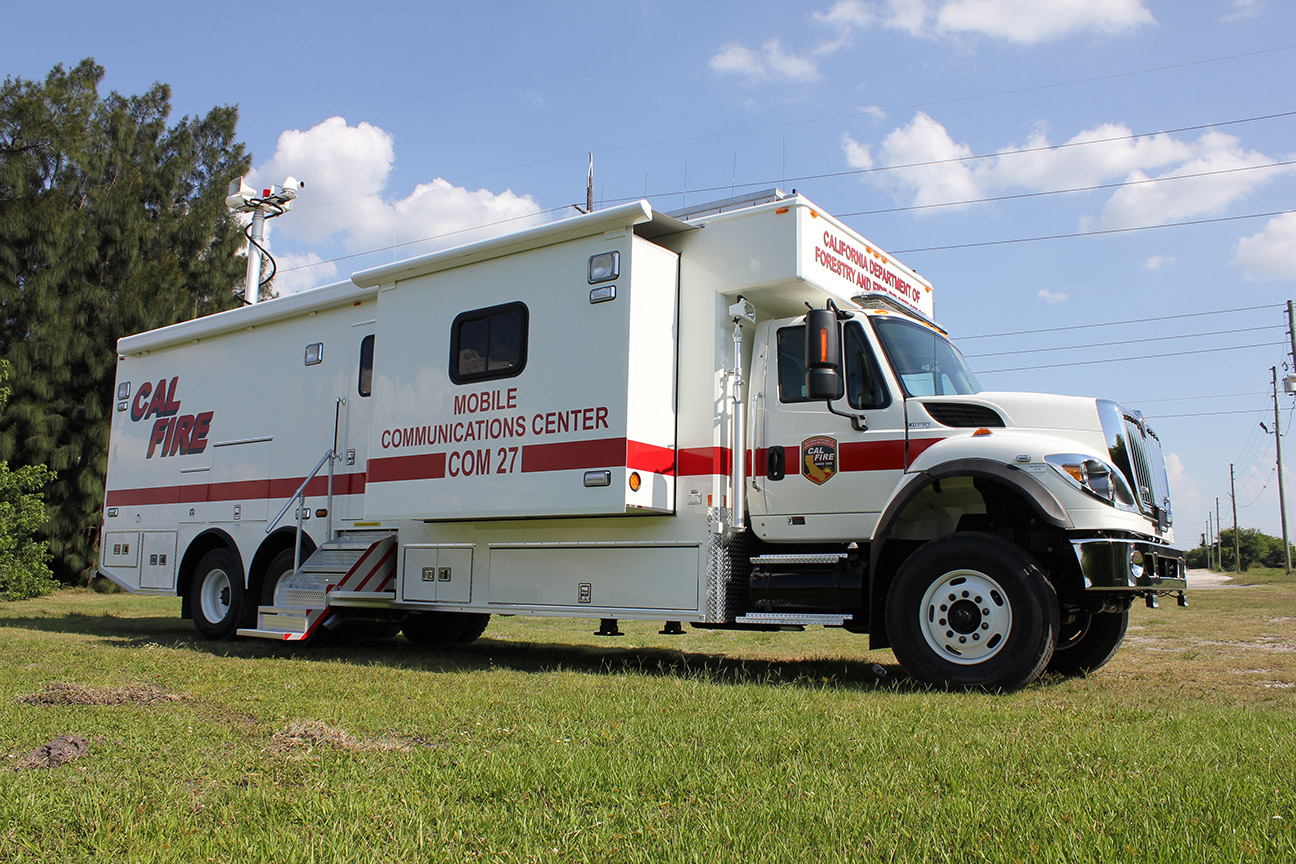

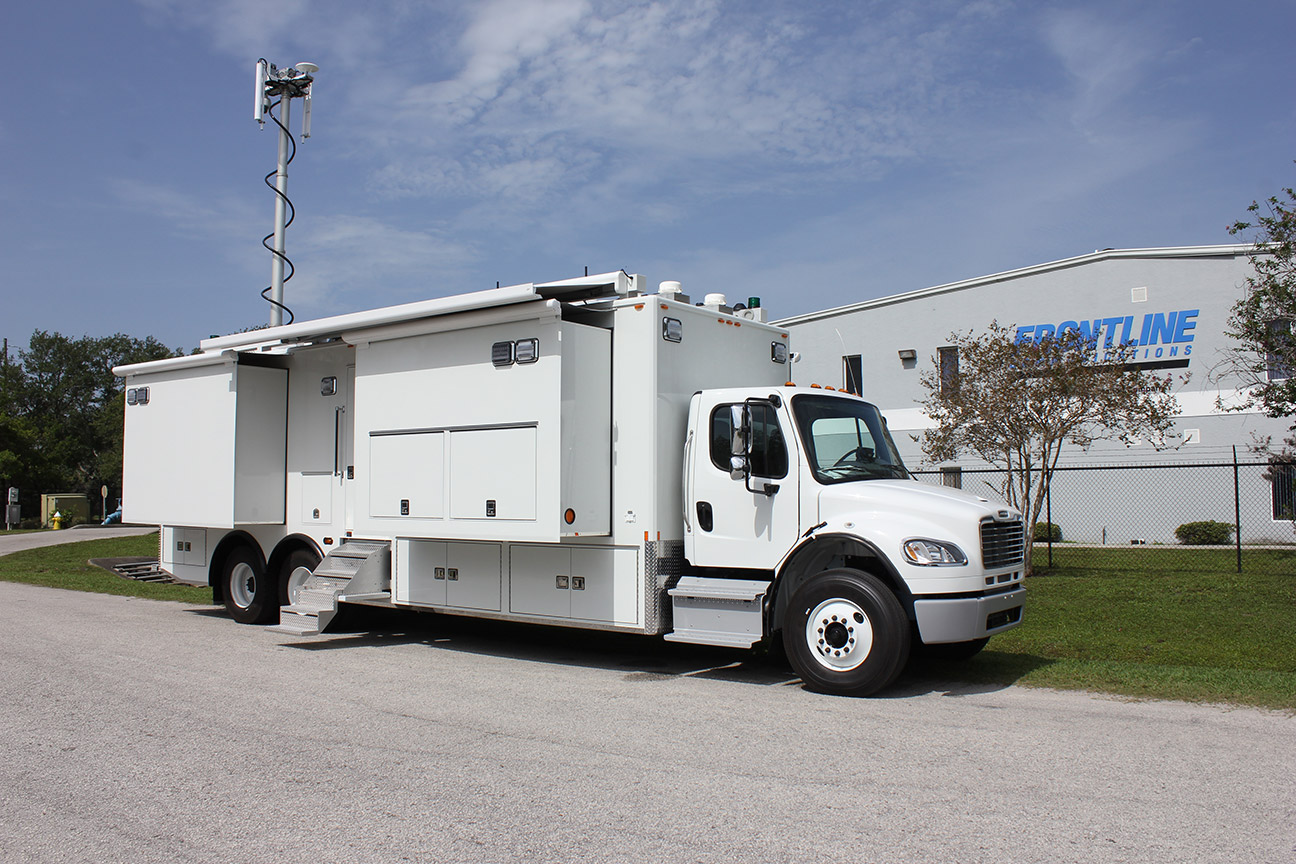

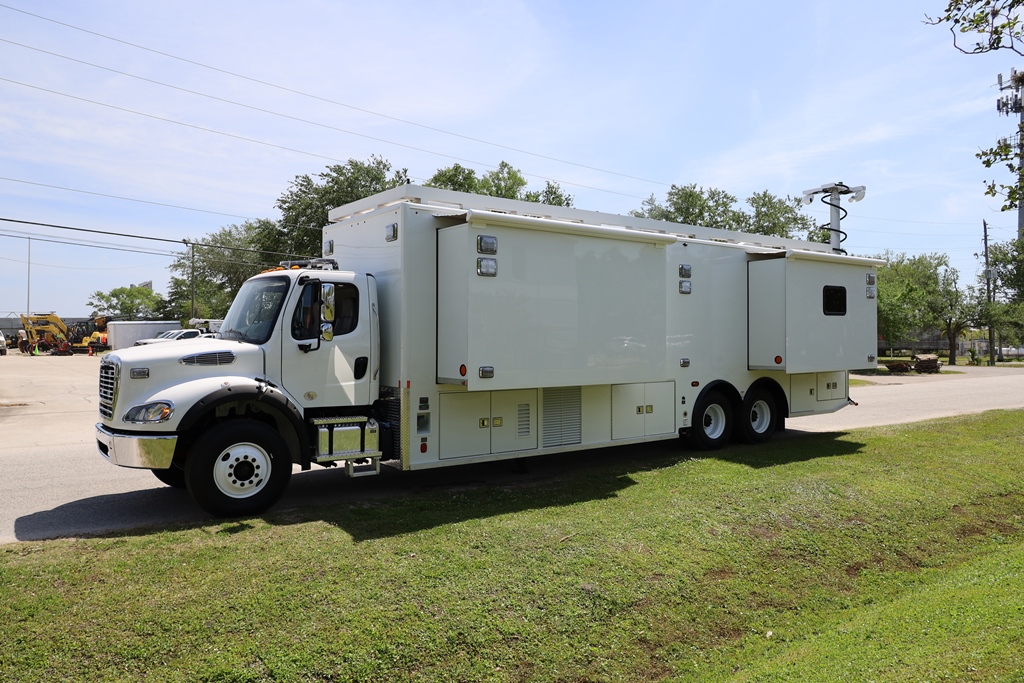

Frontline Communications’ large mobile command vehicles range in sizes from 35’ self-propelled units to 53’ trailers and are meticulously designed to replicate an agency’s emergency operation center with advanced technology and communications capabilities.

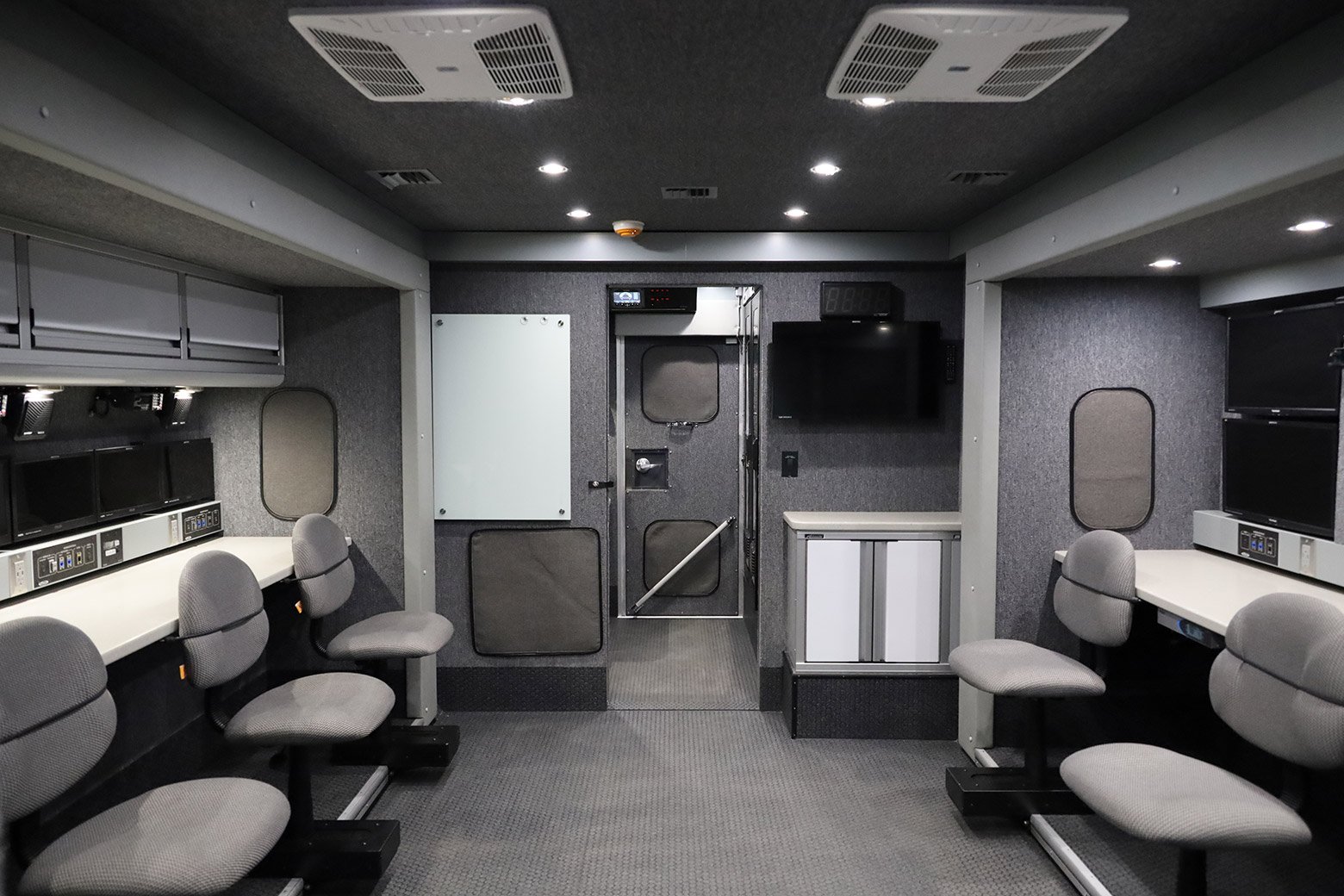

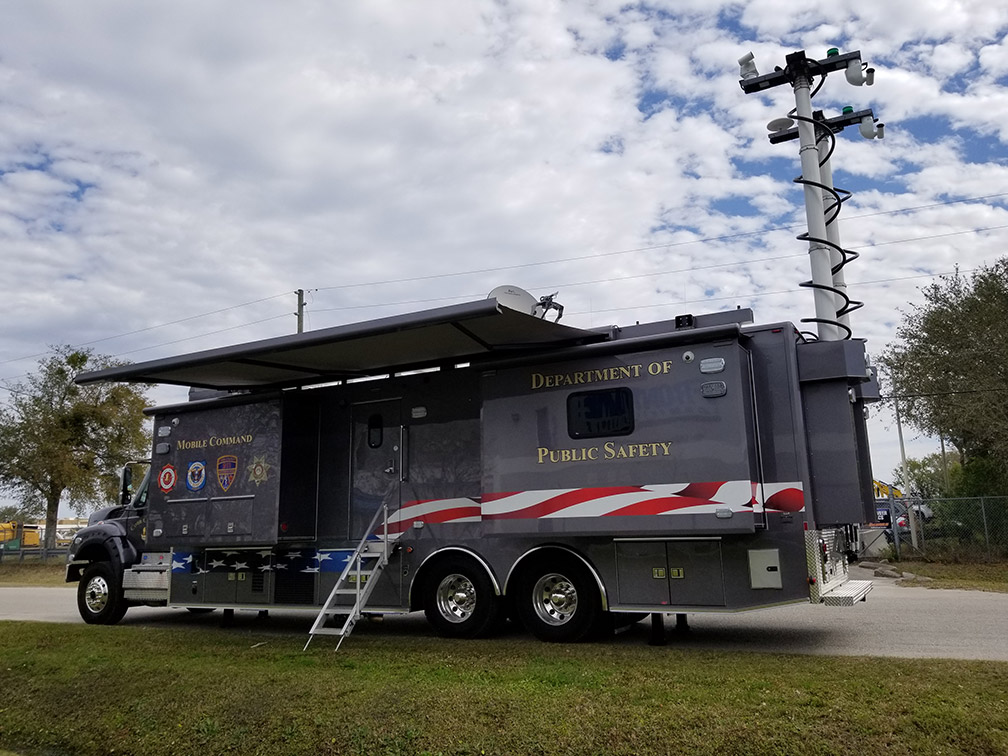

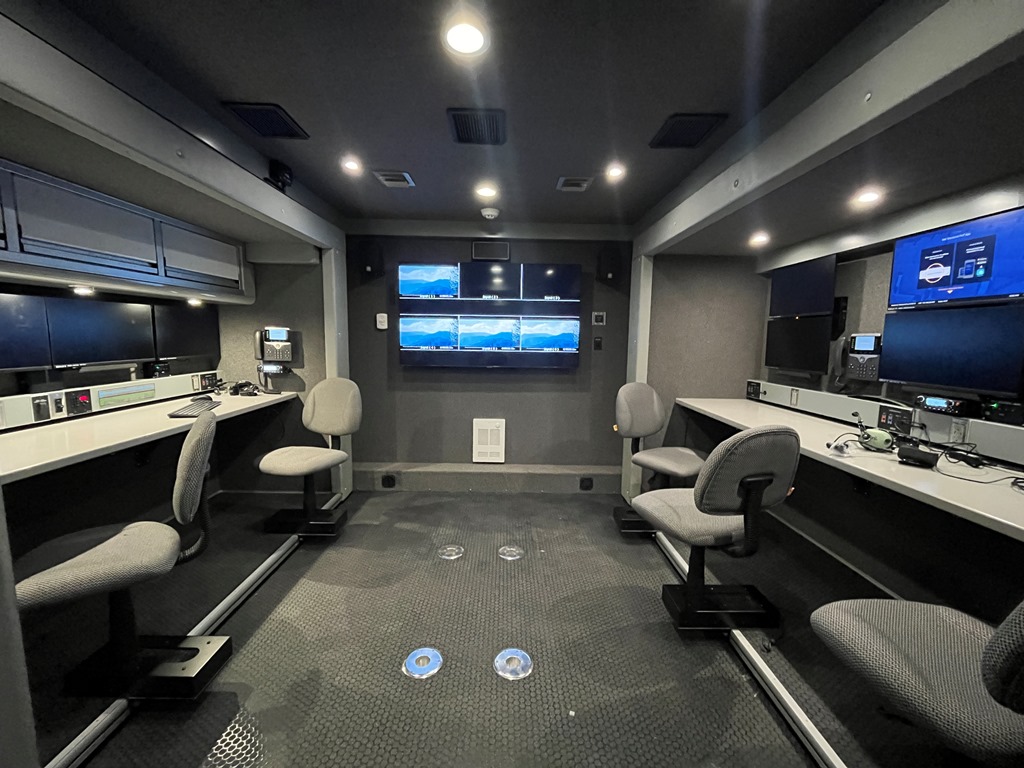

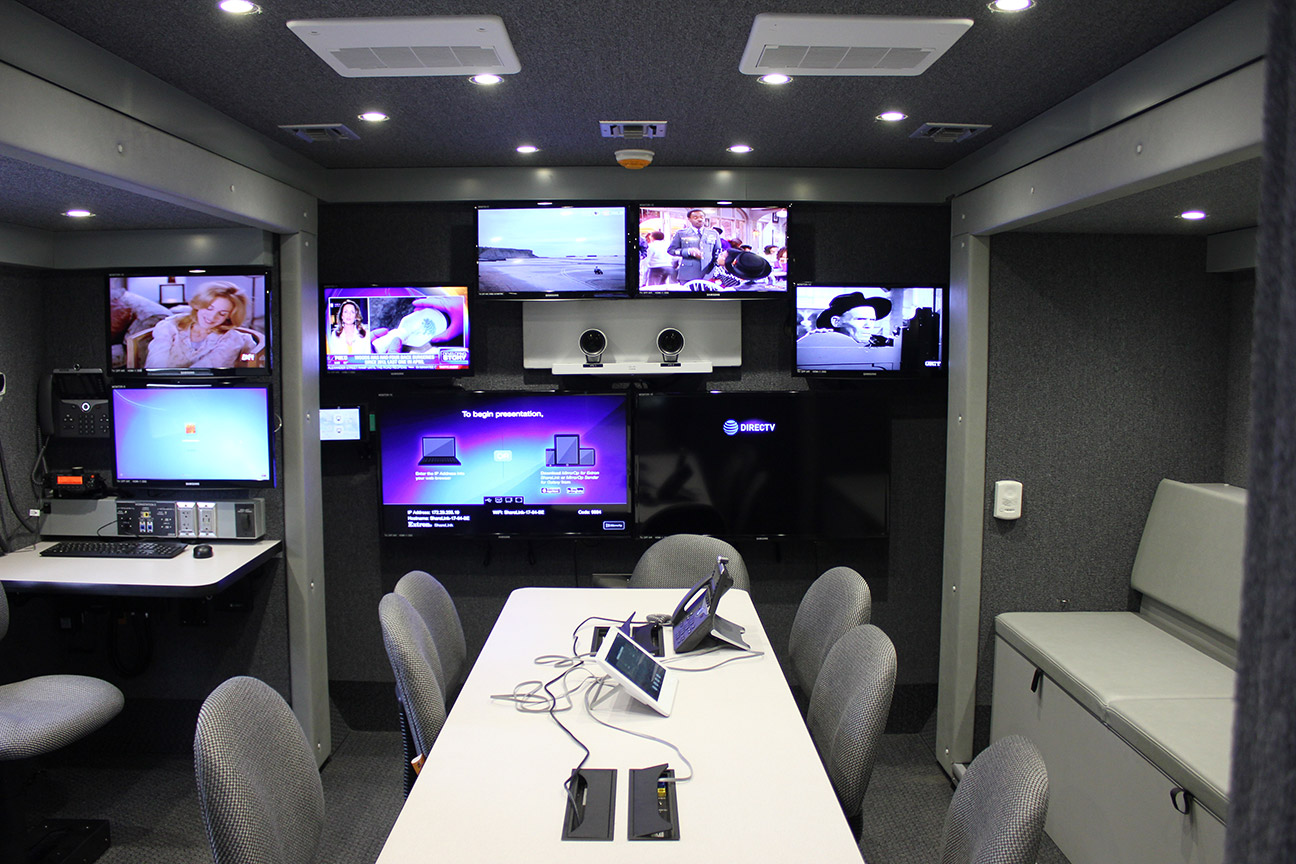

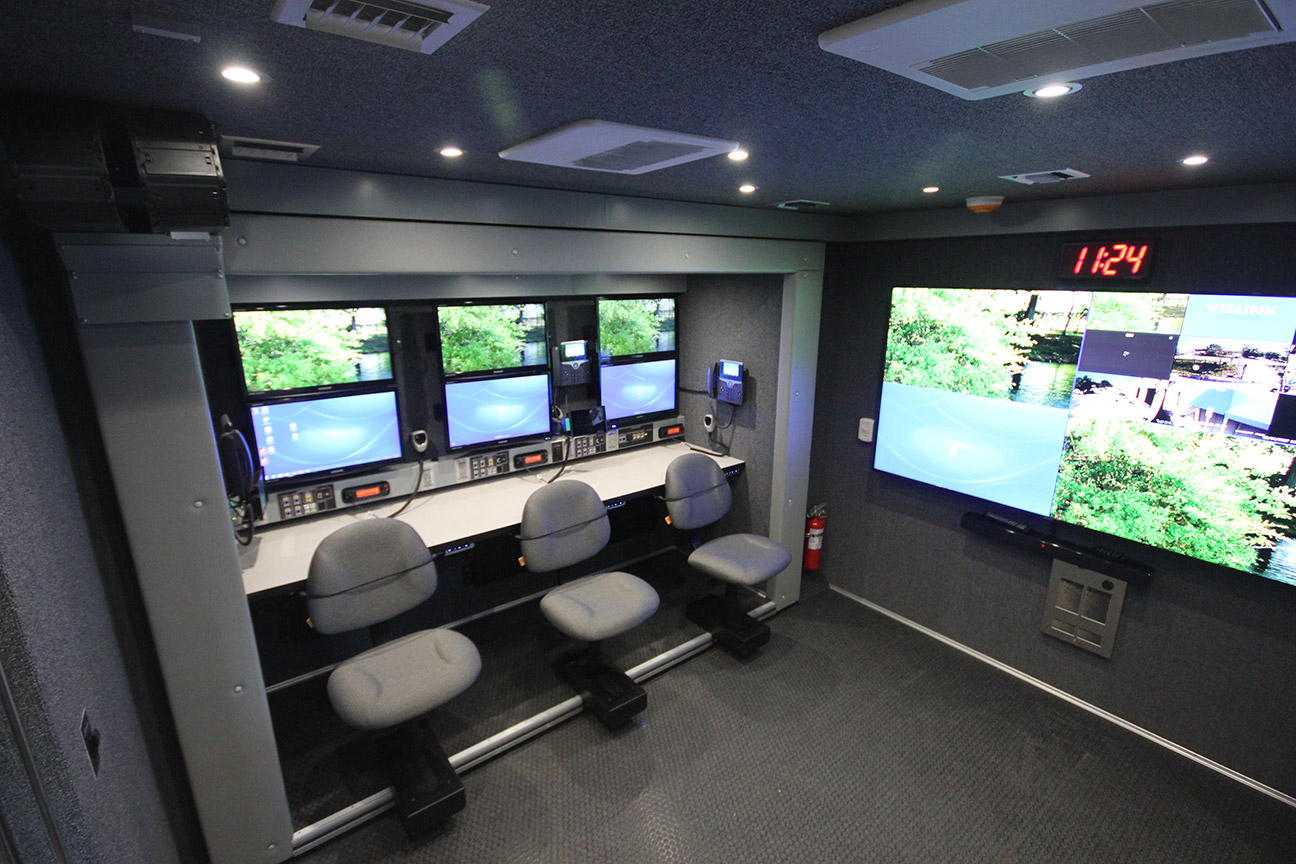

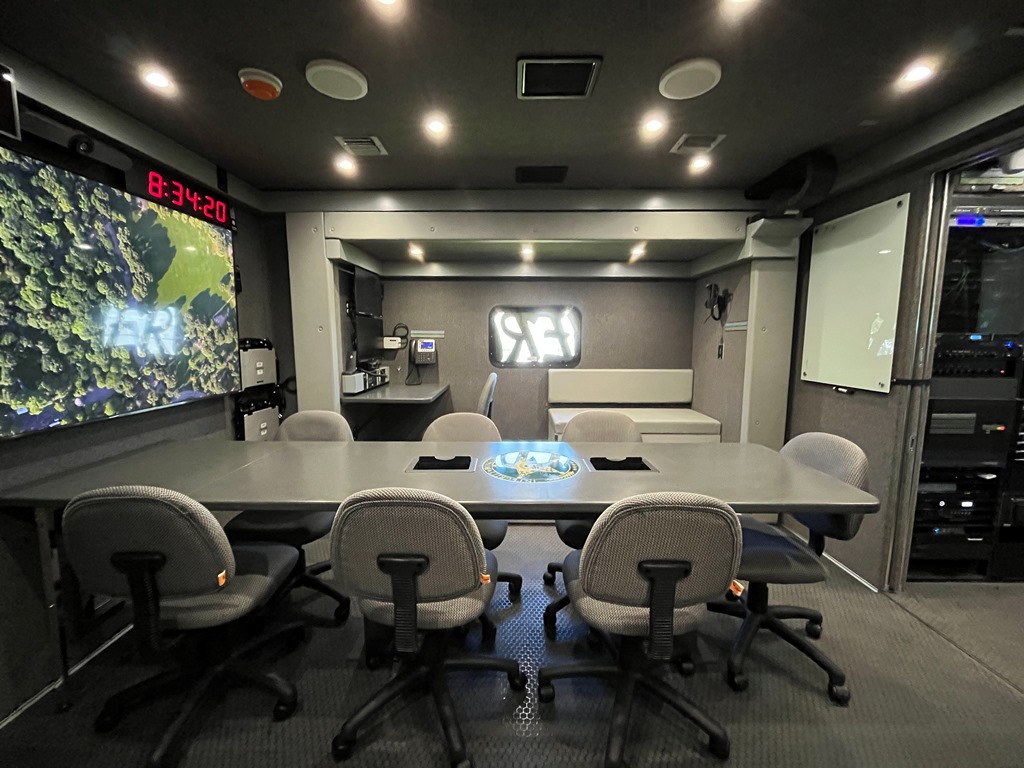

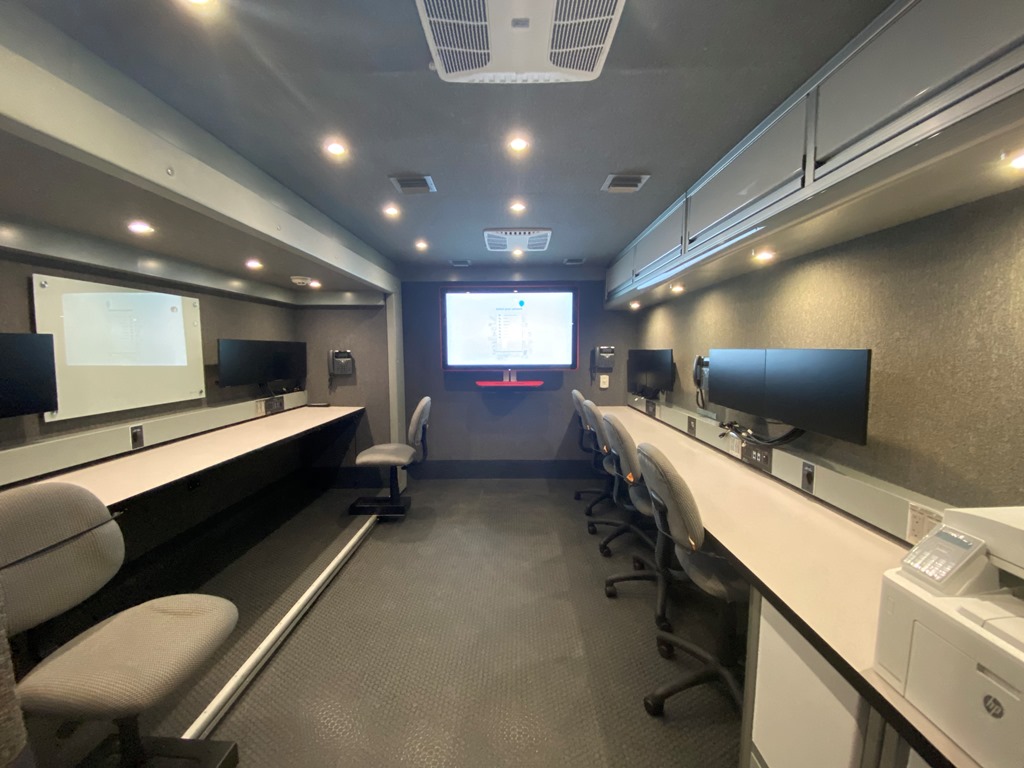

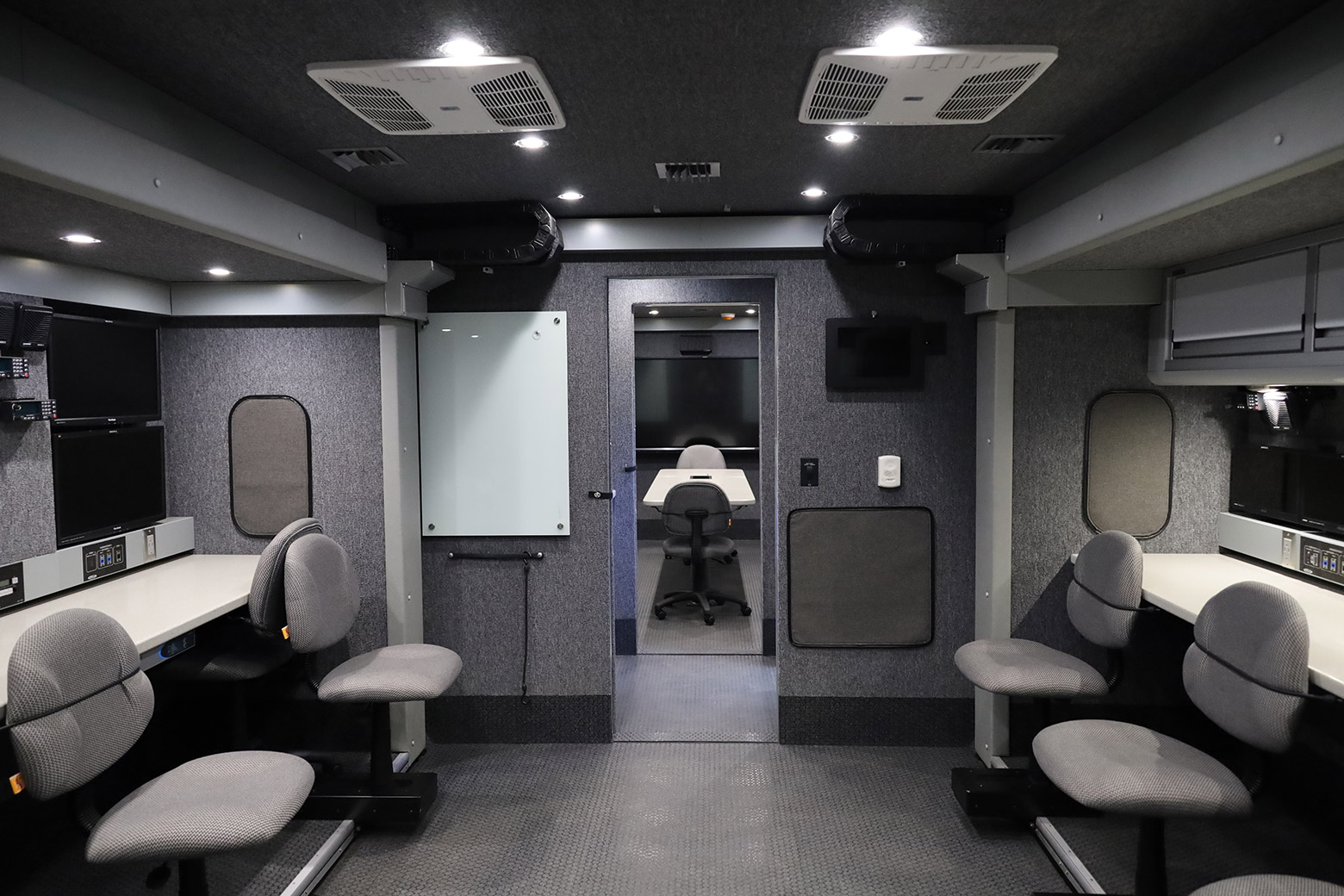

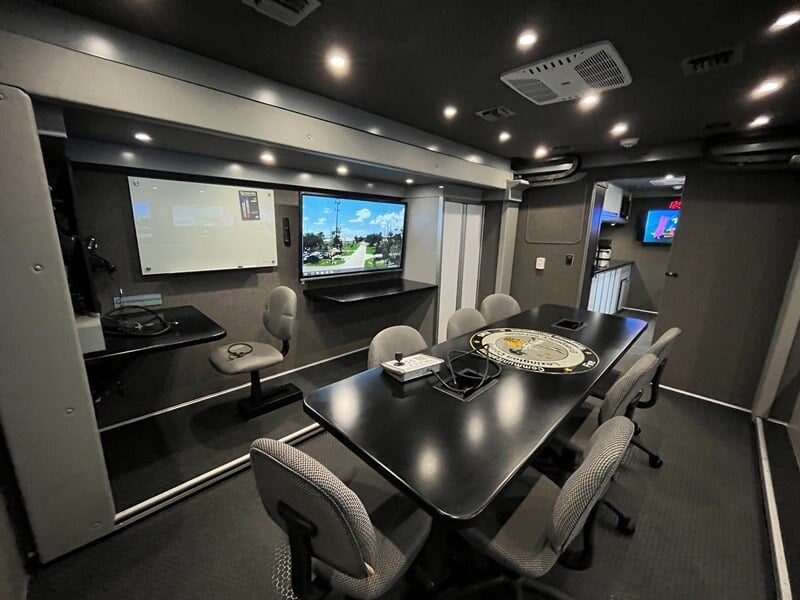

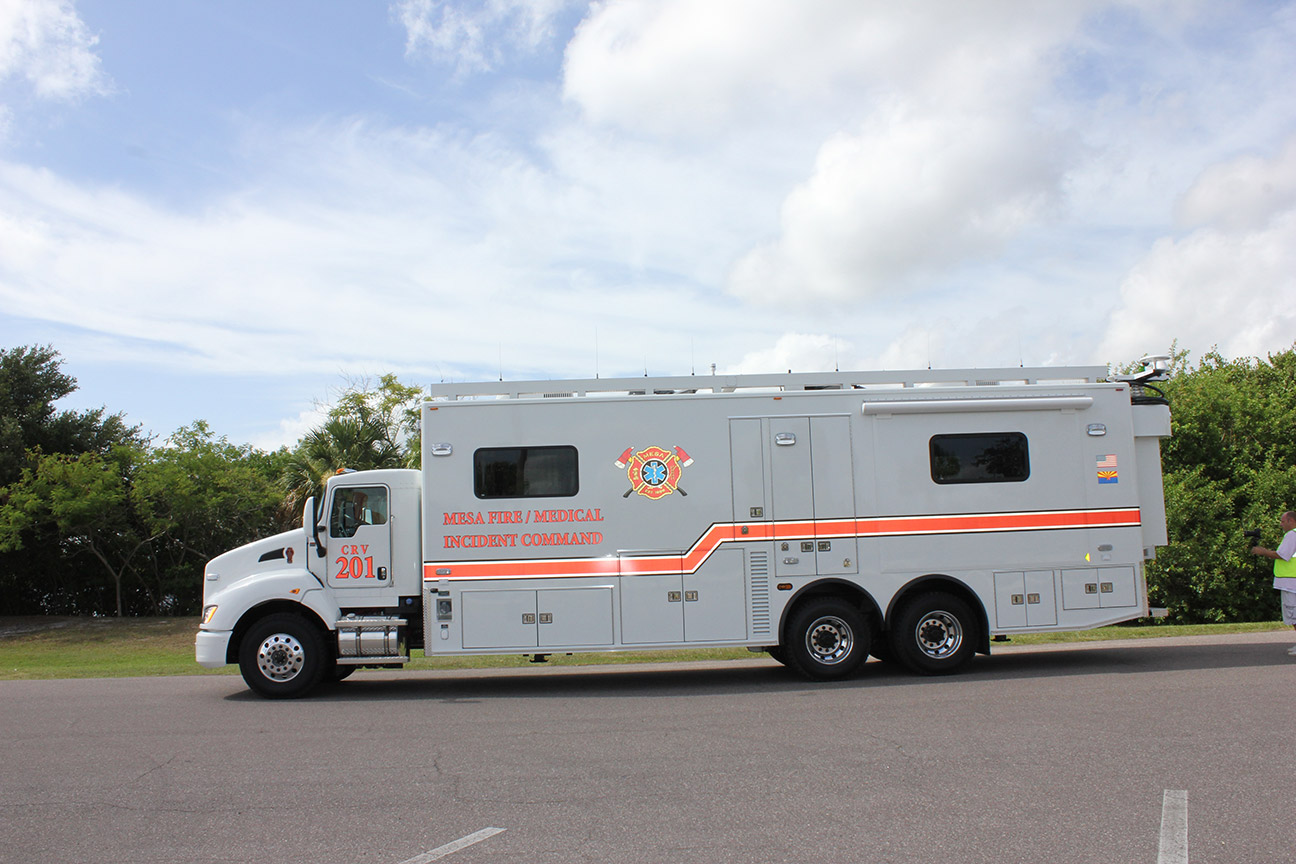

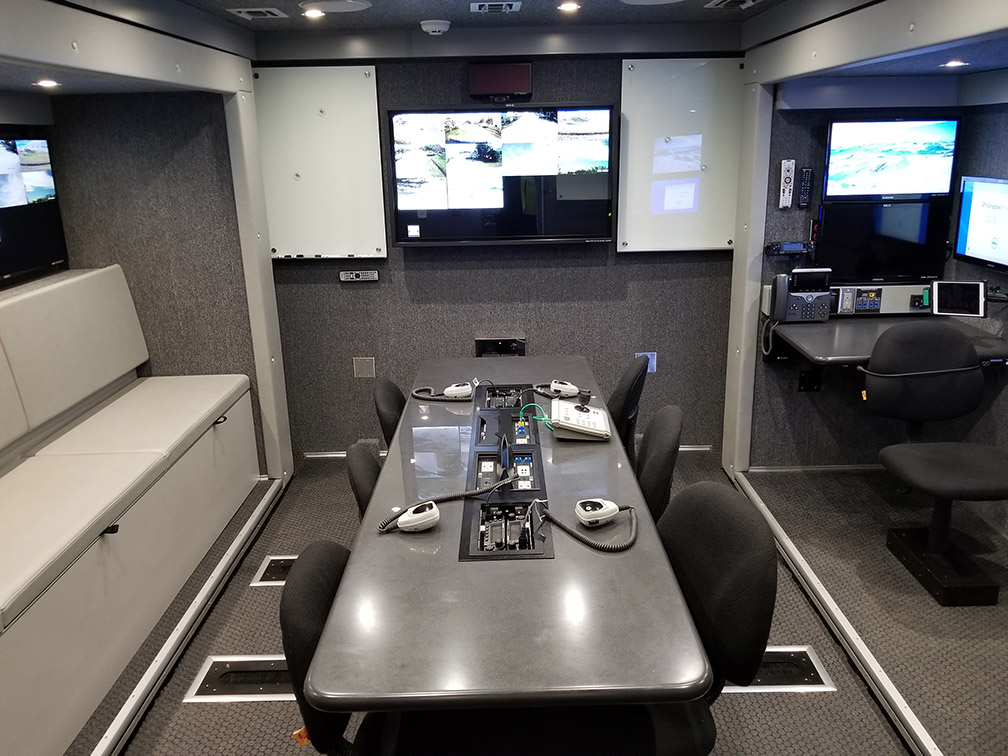

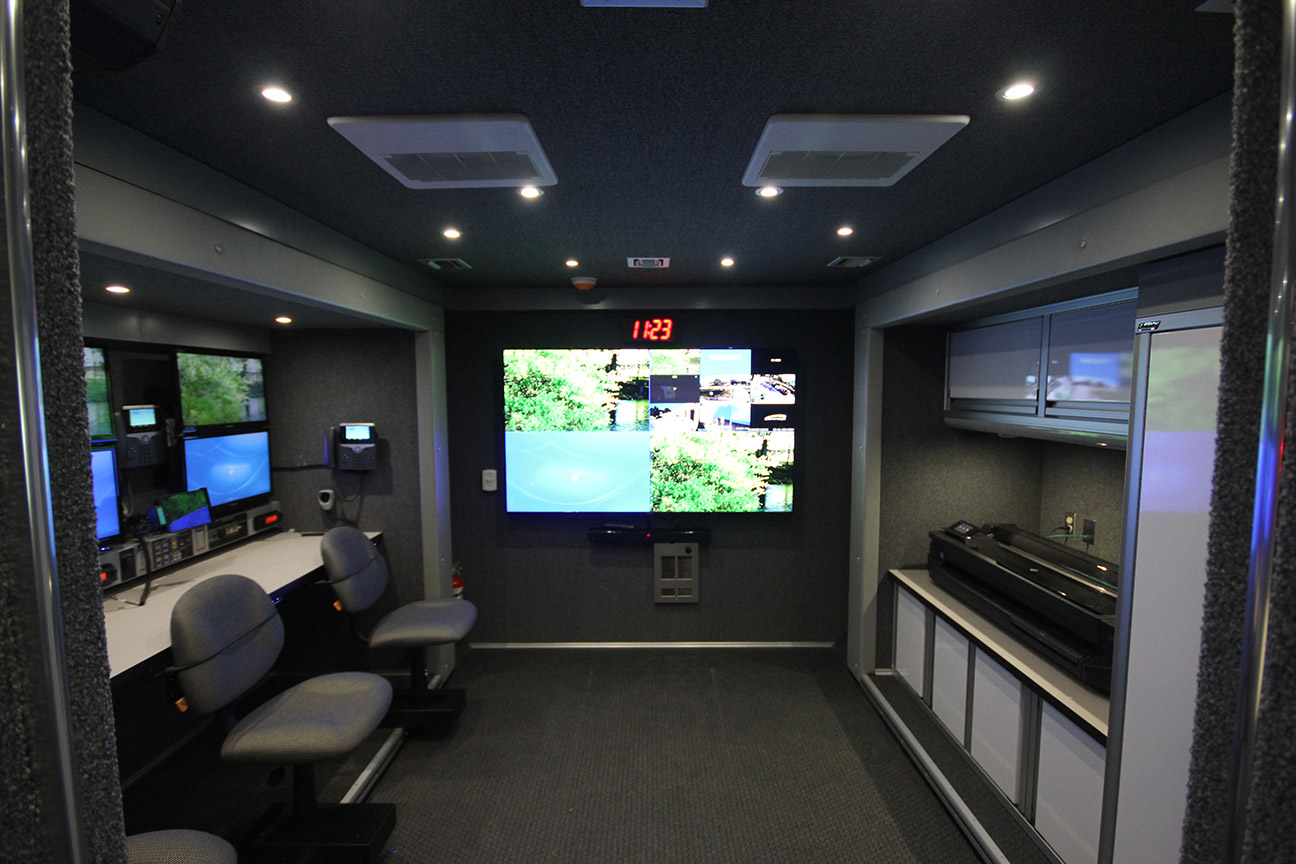

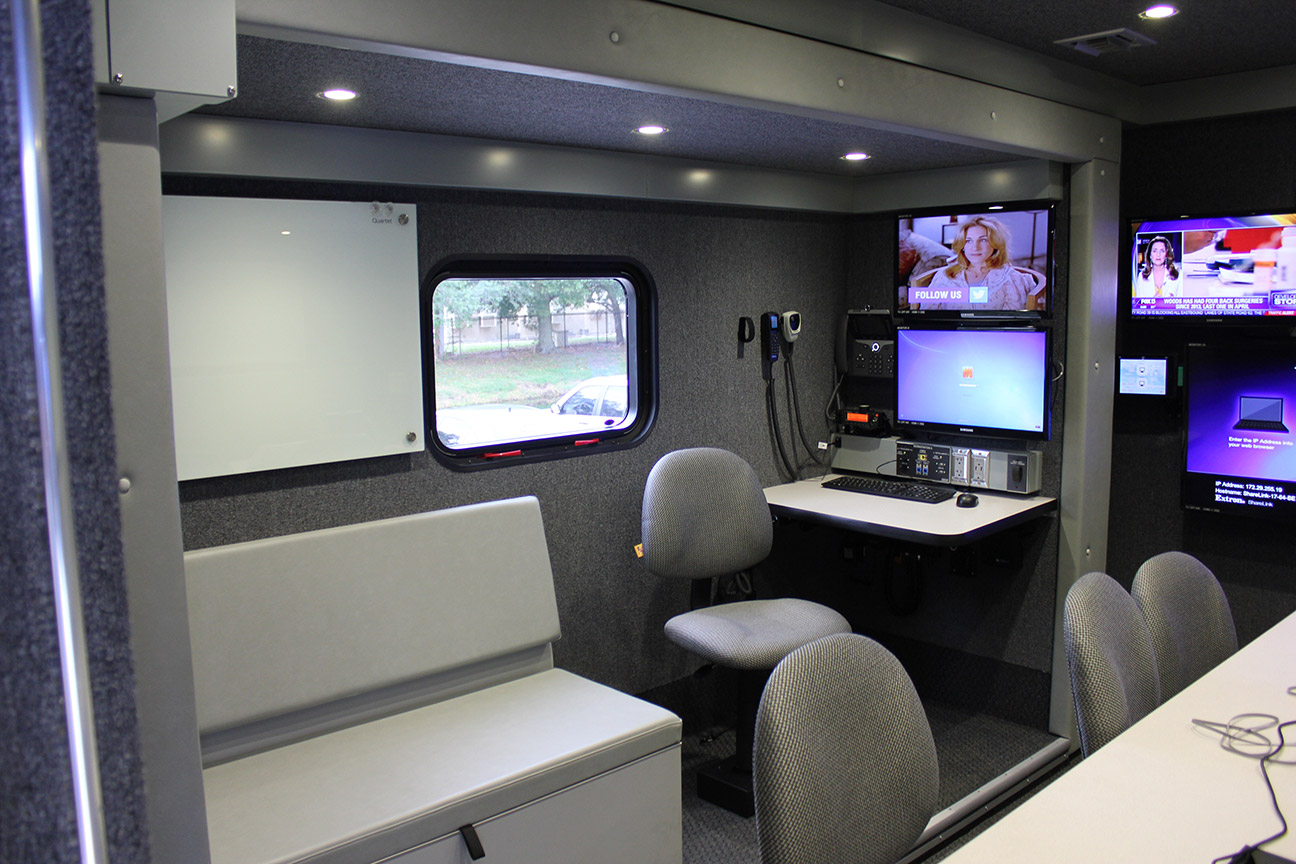

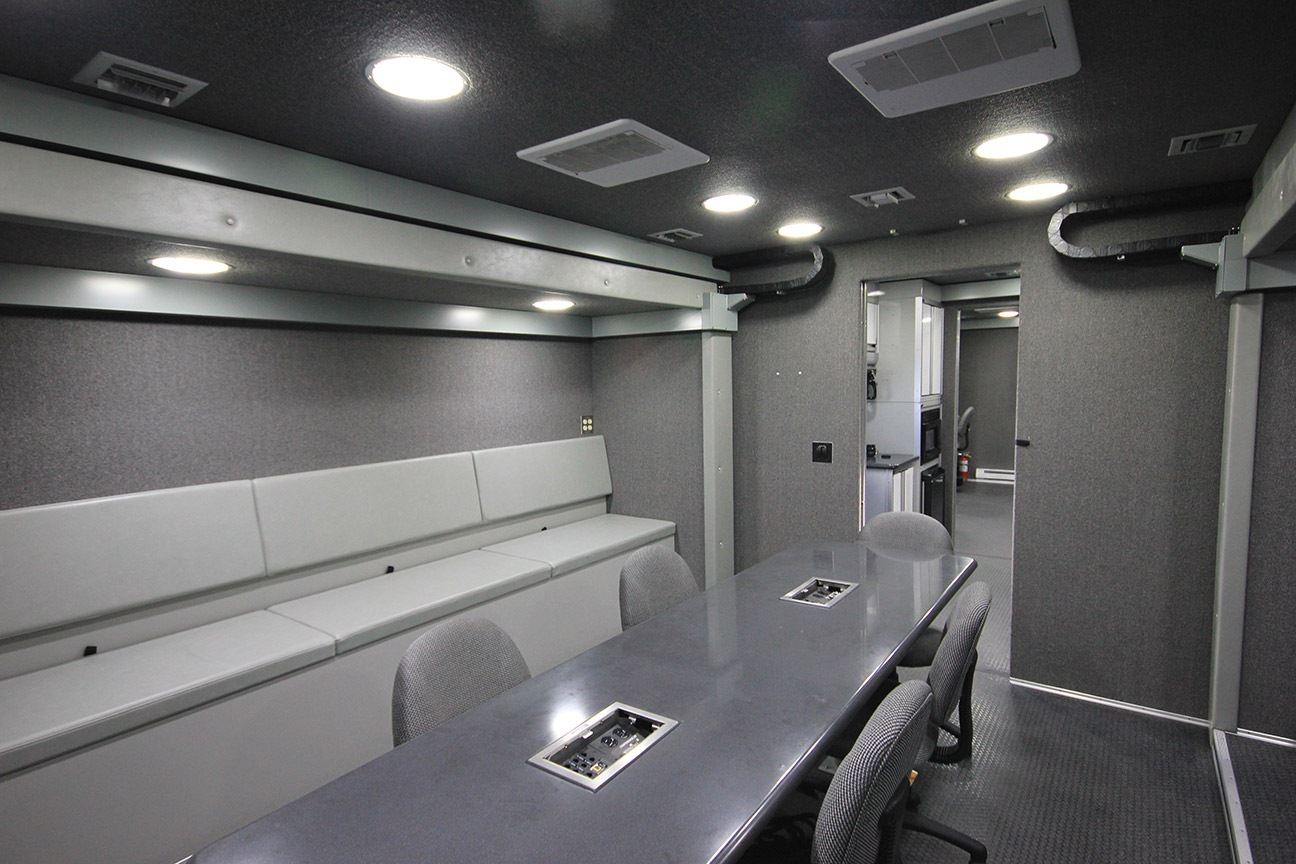

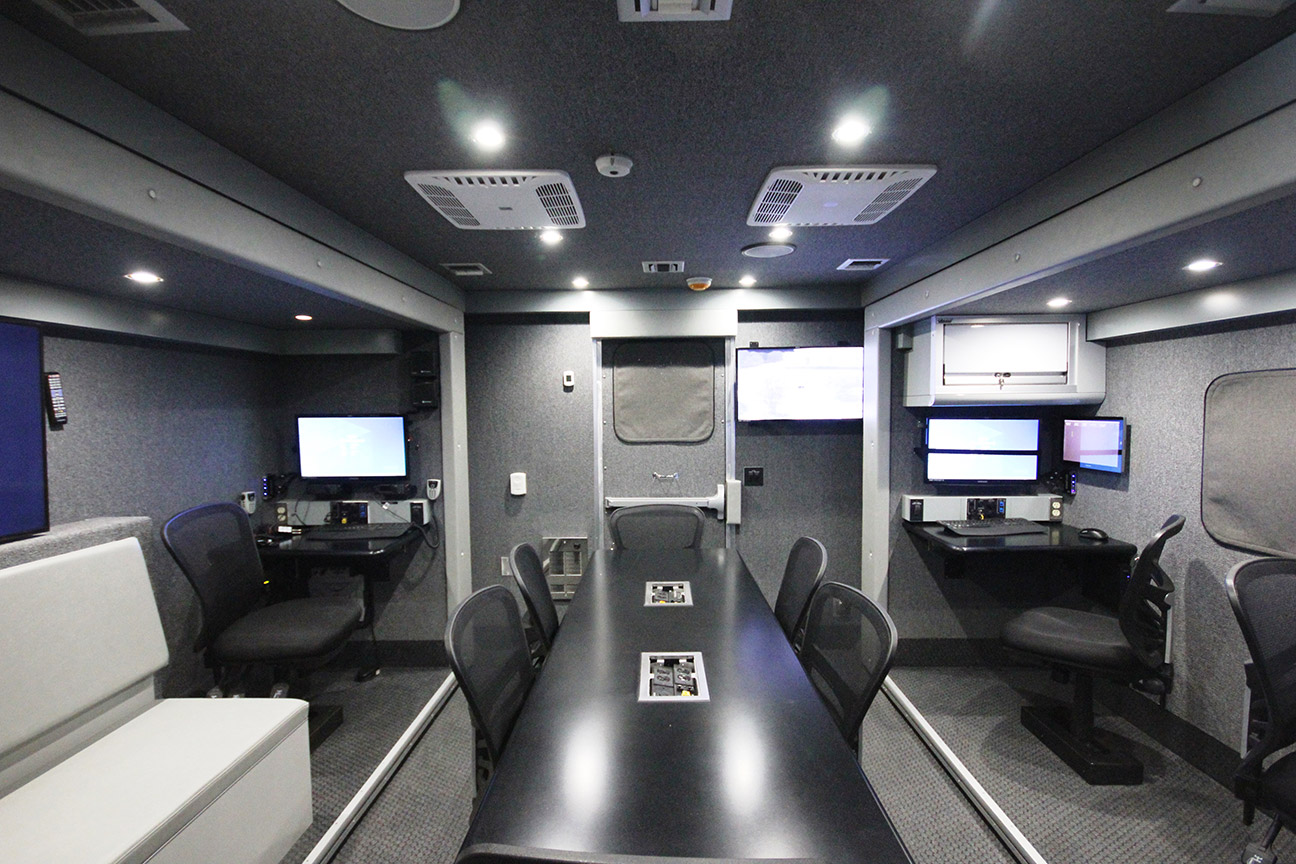

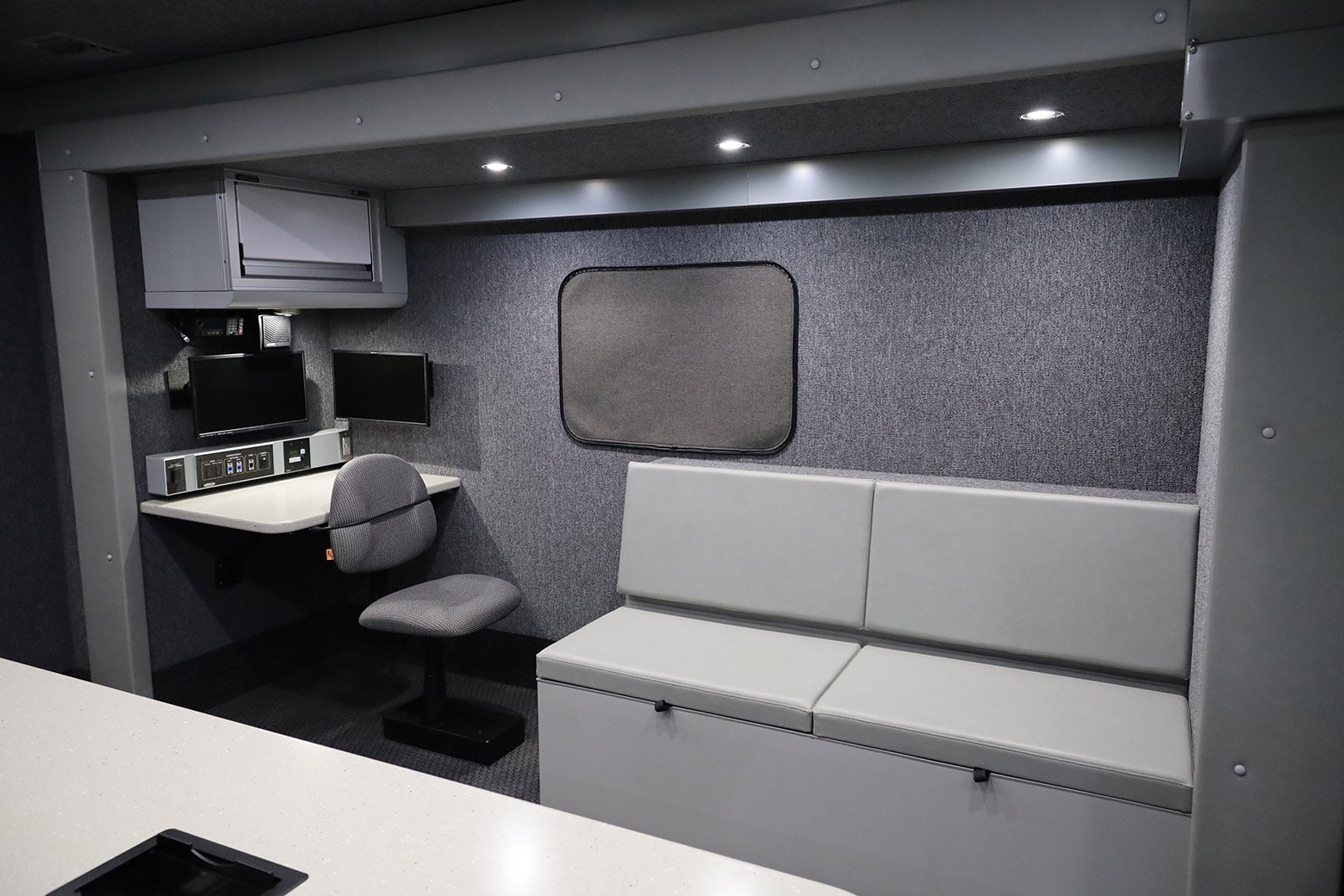

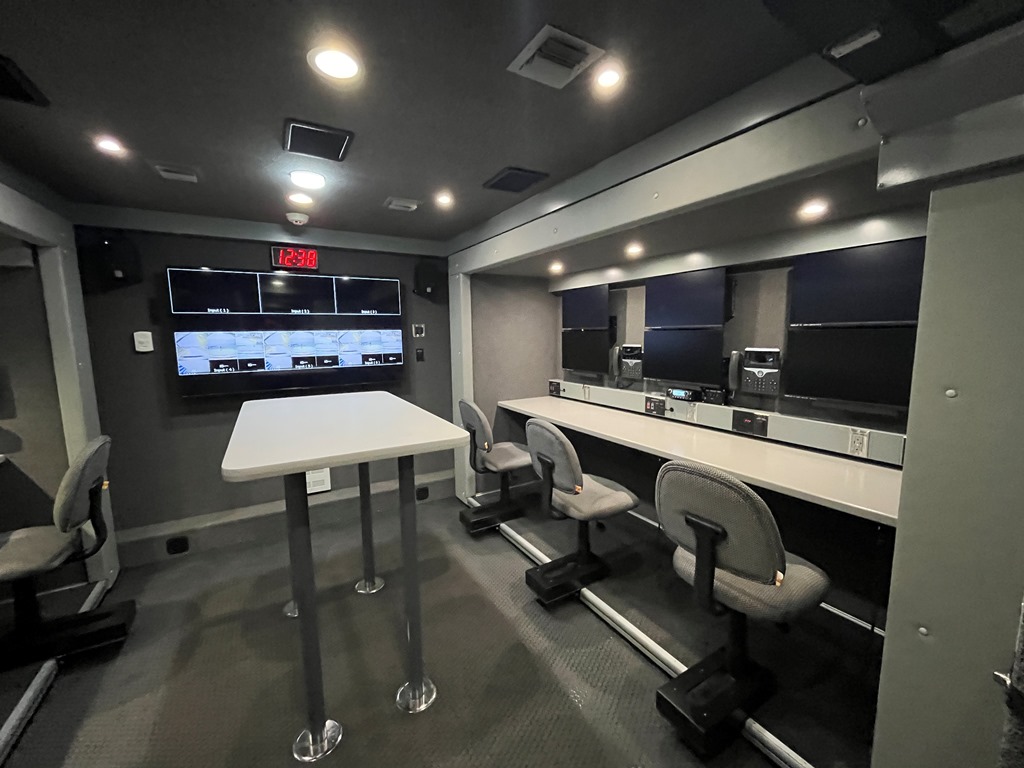

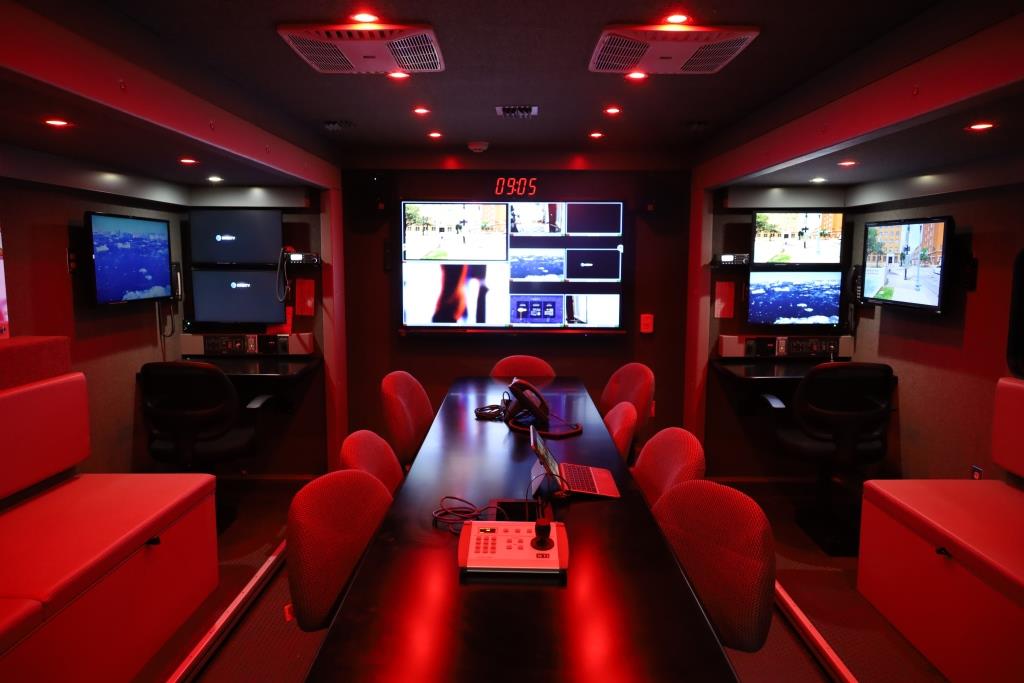

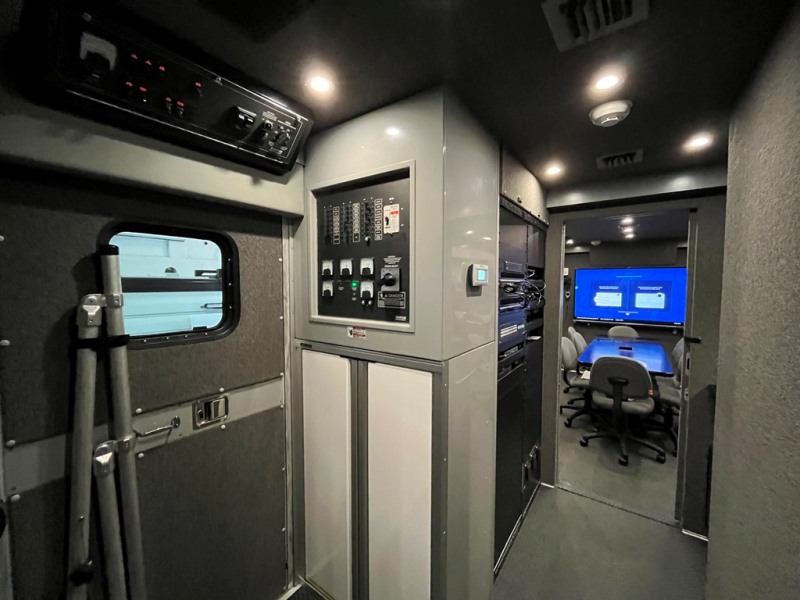

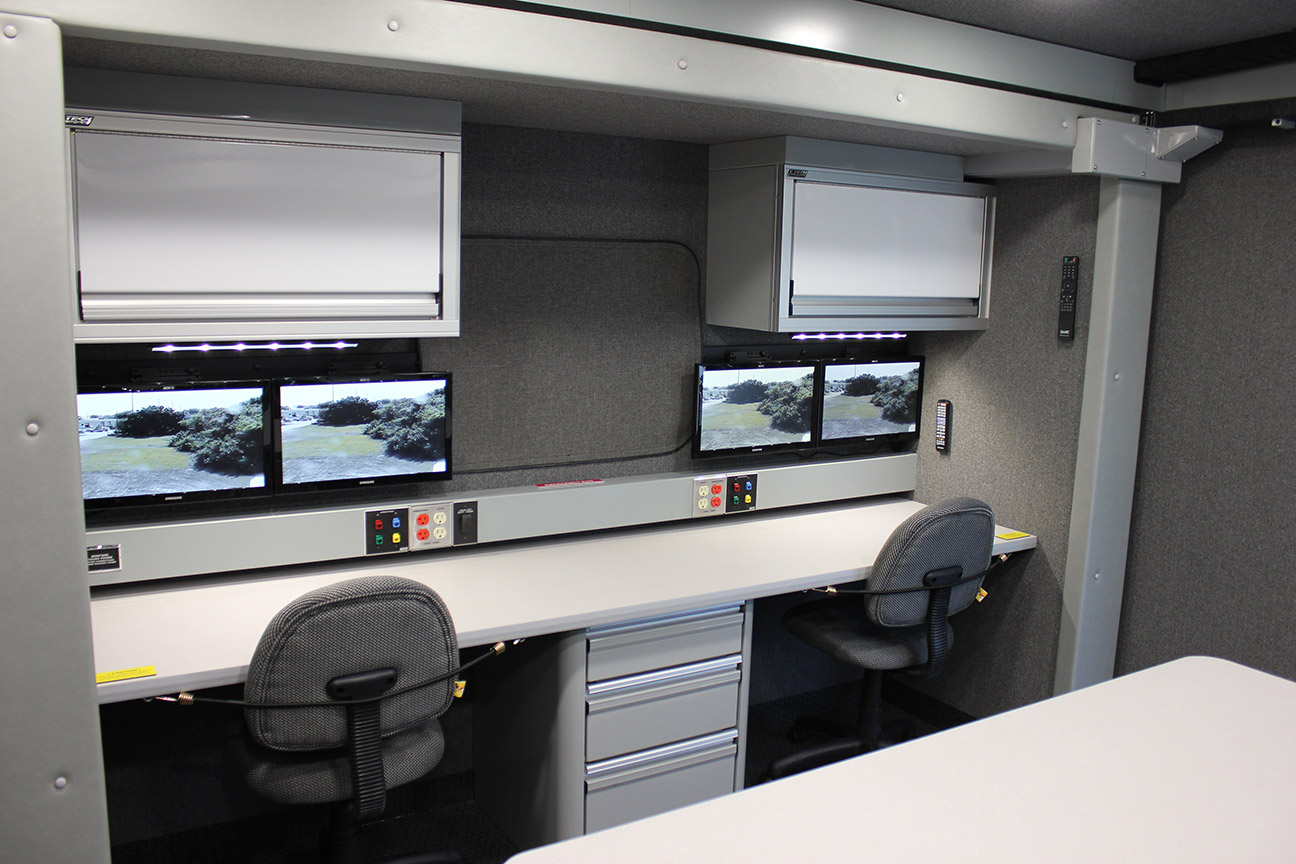

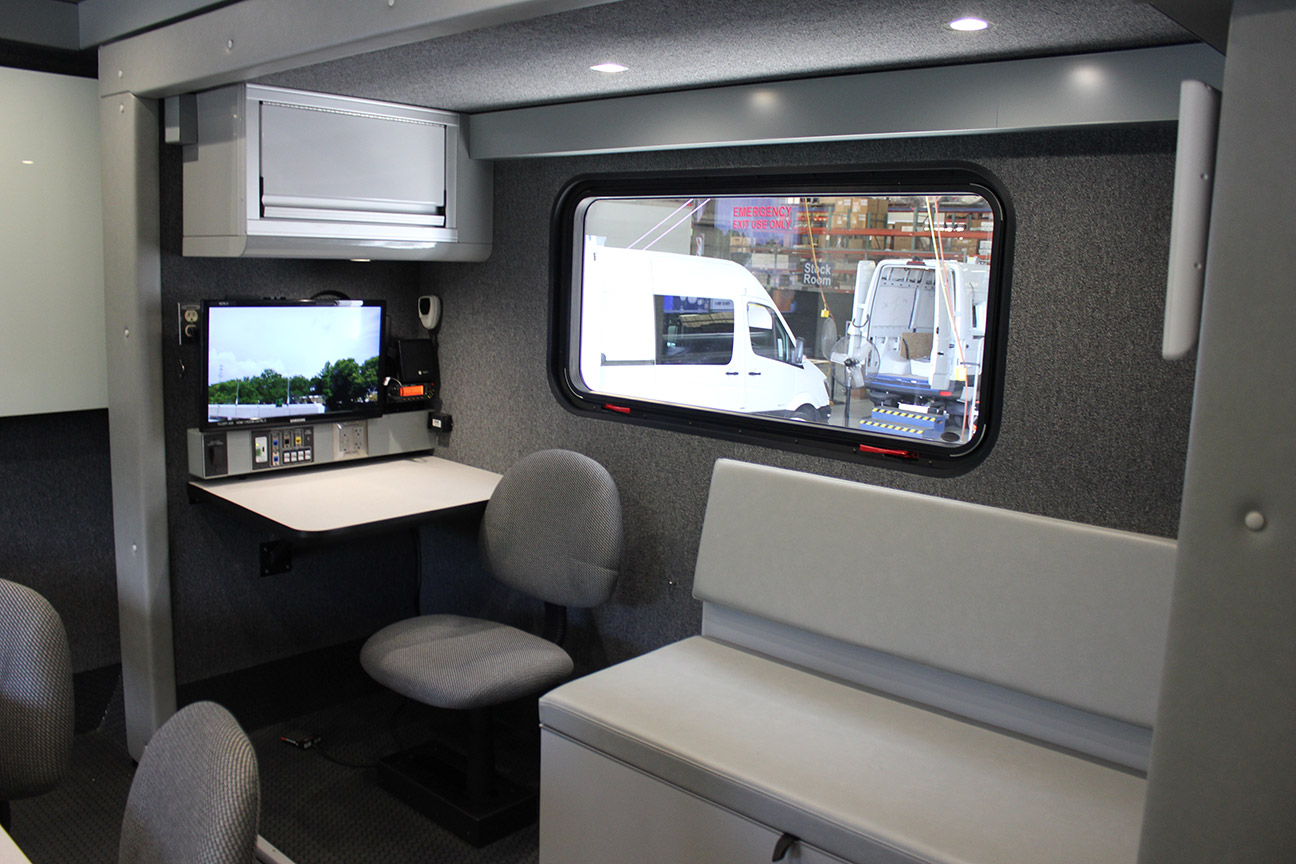

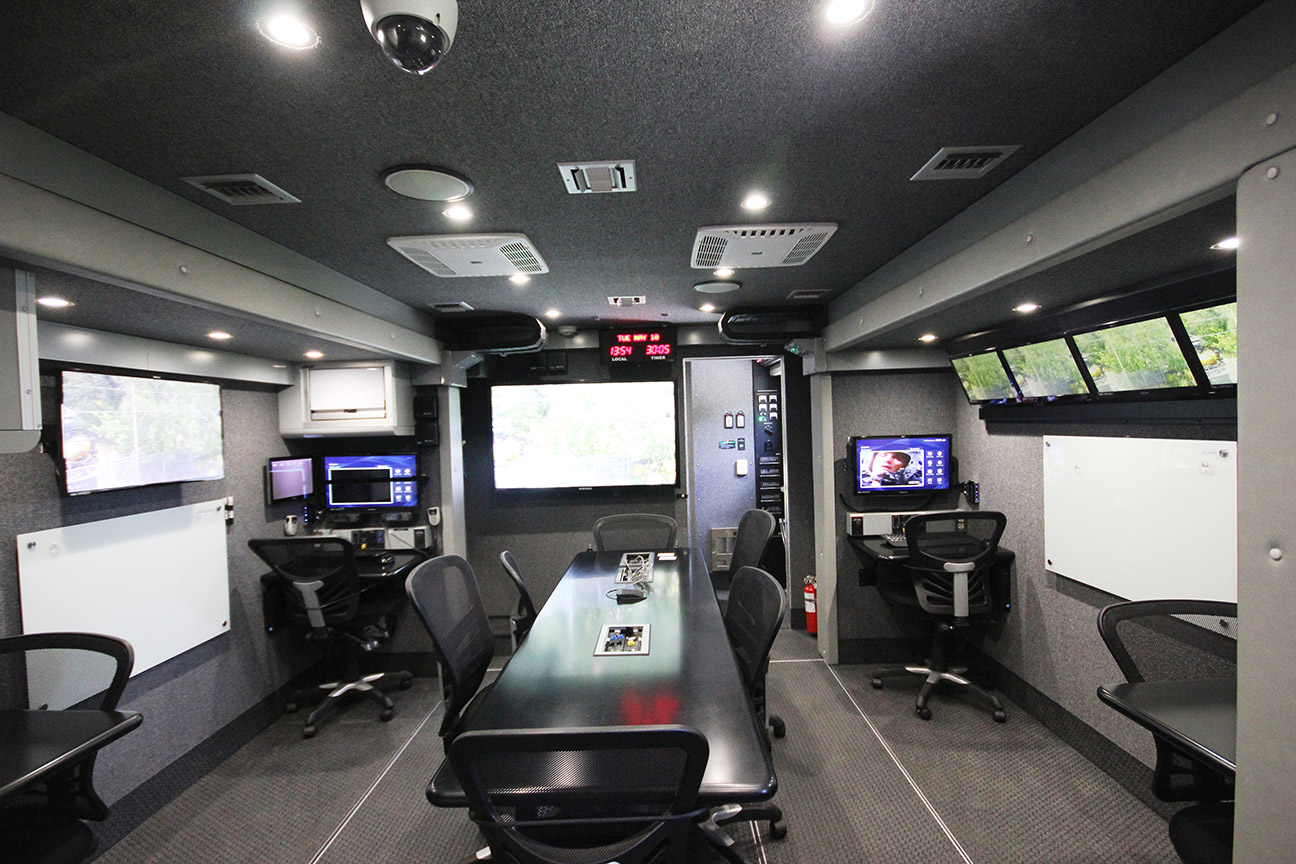

Providing up to 800 square feet of operations space, the Frontline Communications' C-40X-4 platform can accommodate a large conference room and numerous workstations. A commander’s aid station is built into a slide out in the conference room to control video inputs and communications streams for use by the incident team.

Our systems engineers, with decades of technical systems design experience, will customize each Frontline Communications emergency response vehicle as needed, to include satellite, microwave or cellular video transmission, teleconferencing, HD and thermal cameras, radio communications and dispatch, weather stations, and more.

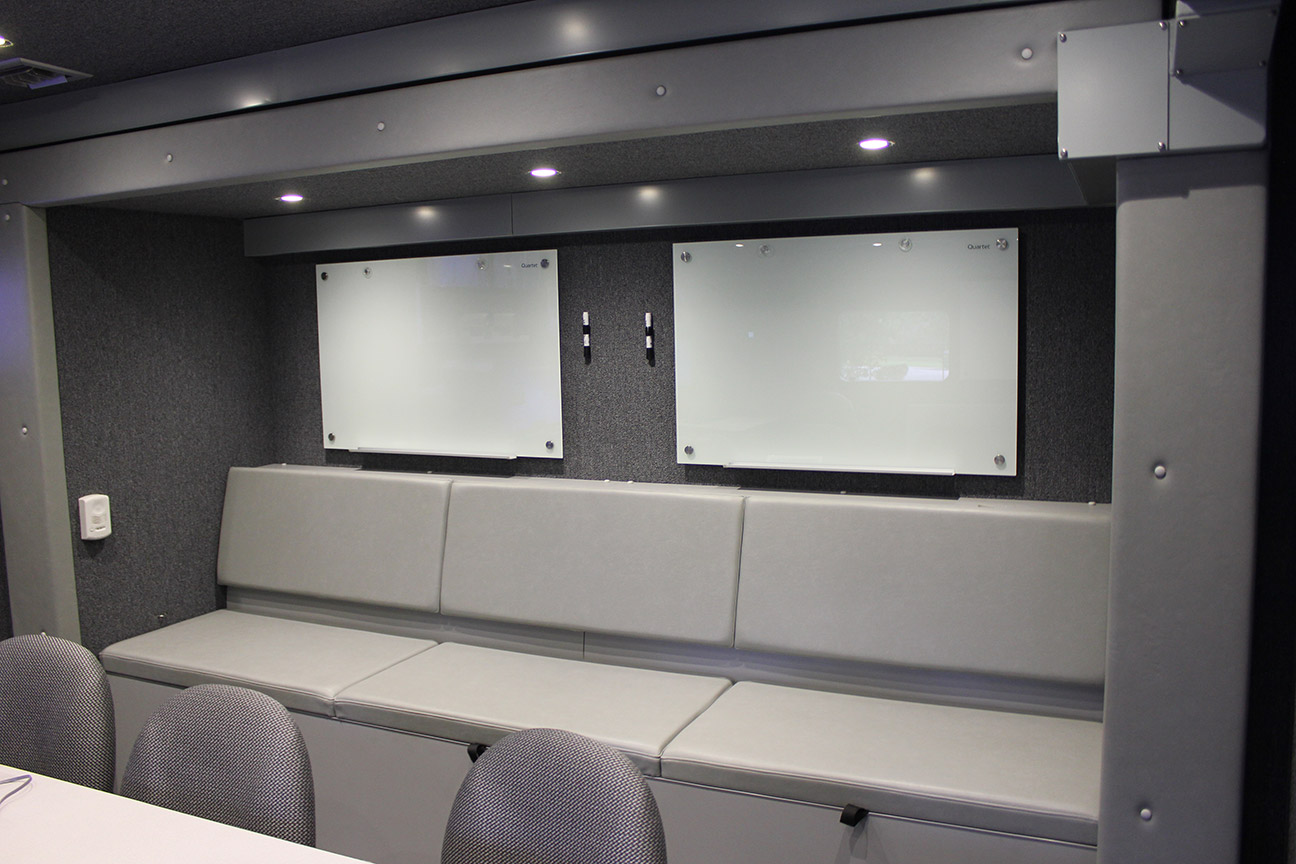

Each Frontline Communications large mobile command vehicle is designed to be set up and operational in minimal time. Features and equipment such as full electric awnings, sliding swivel seating, white board surfaces, lavatory, galley, and custom paint and graphics can be included on any design.

When it comes to a custom mobile communications vehicles, we make your concept a reality.

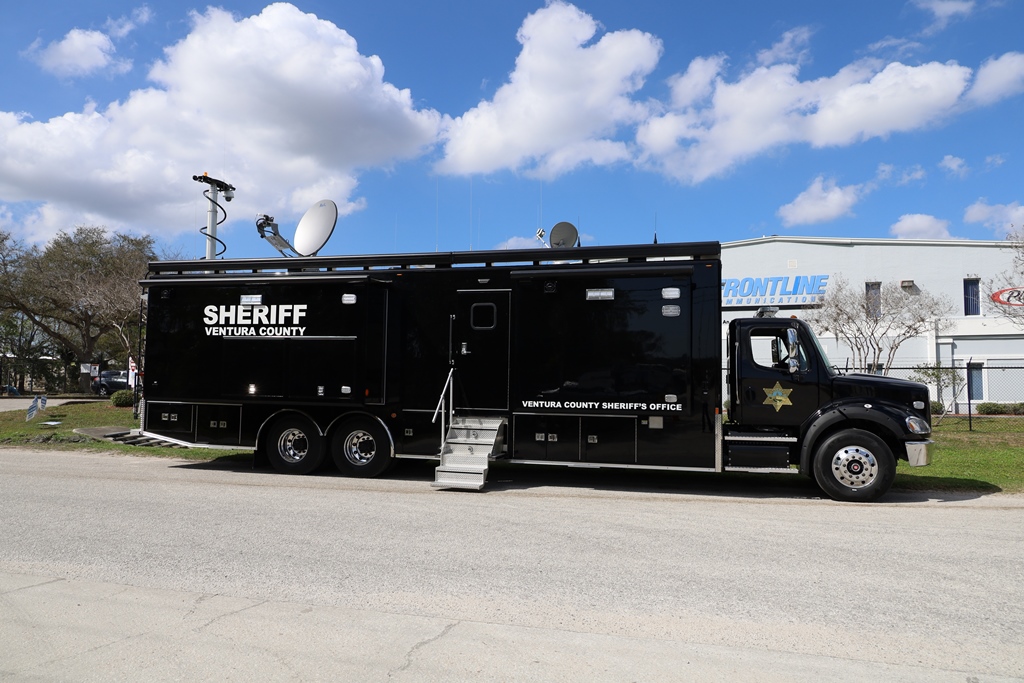

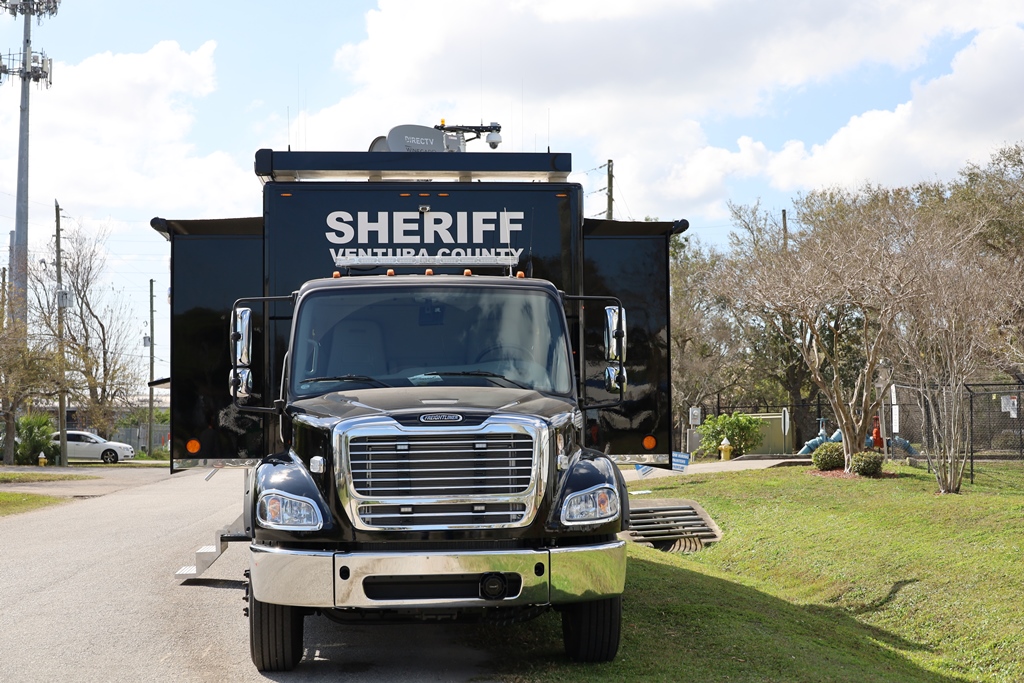

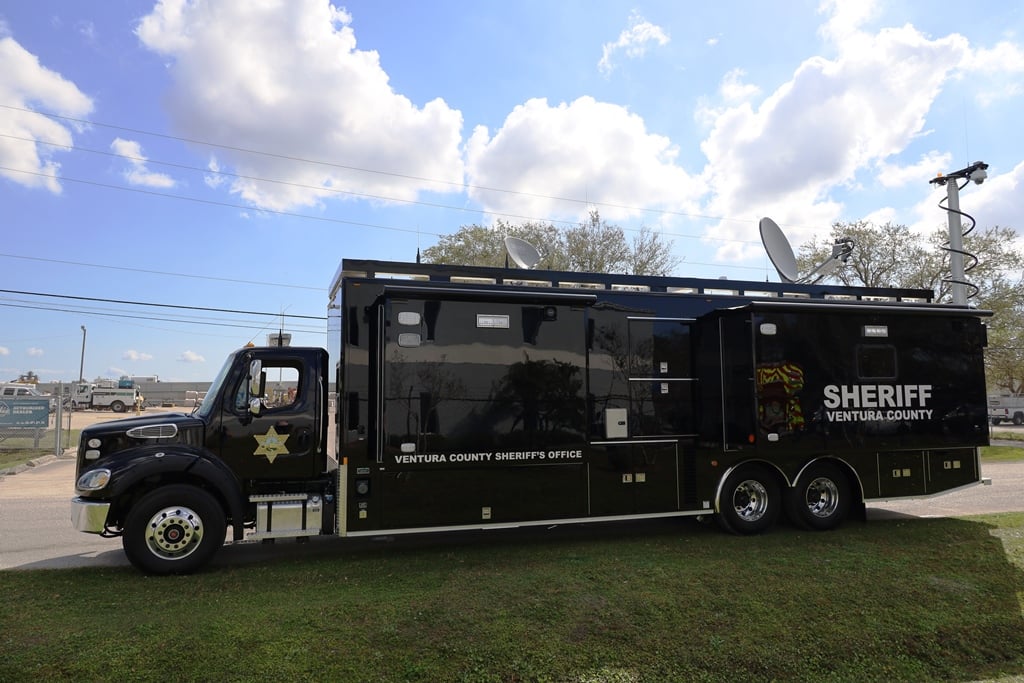

Frontline Communications black Large Mobile Command vehicle for Venture County Sheriff’s Office parked outside the building on a cloudy day.

Specifications

Vehicle Specs

Chassis

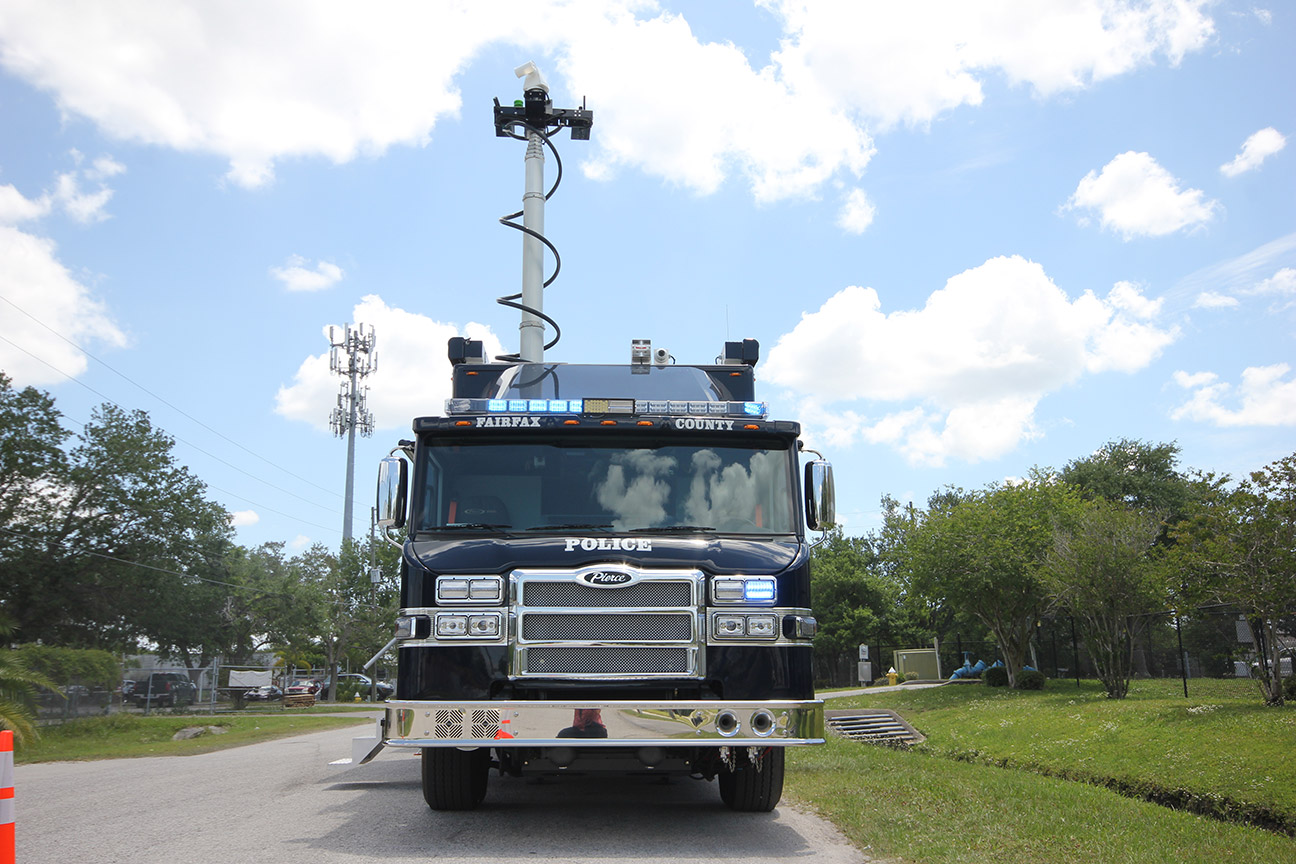

Pierce® Velocity® , EnforcerTM or Impel®  Freightliner M2-106 or 112

Overall Length

40’ to 45’

Body Length

30’ to 35’

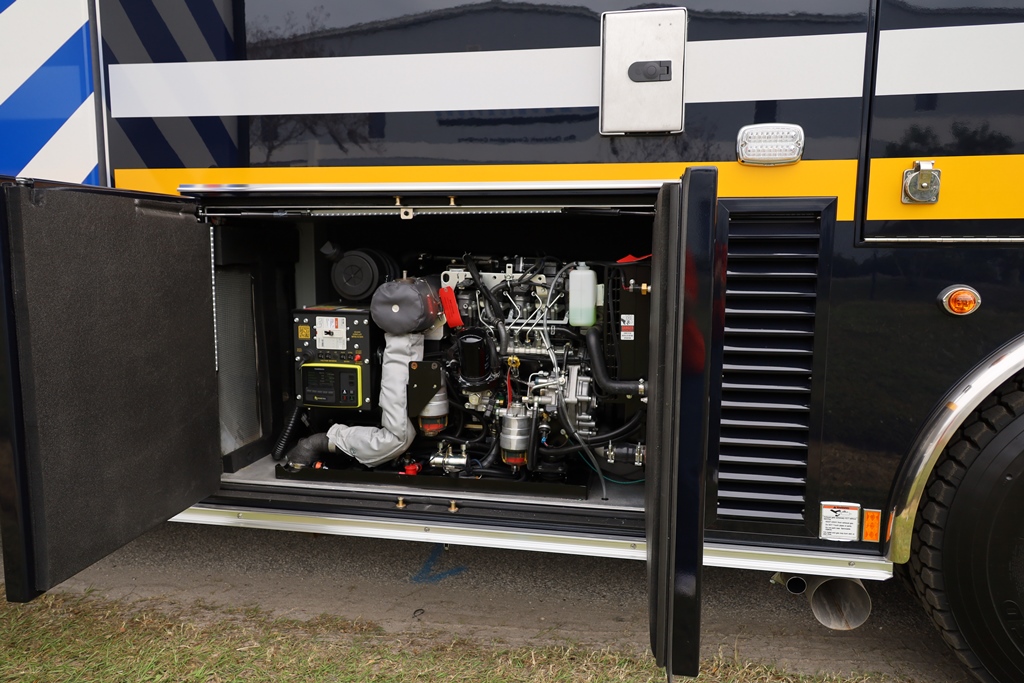

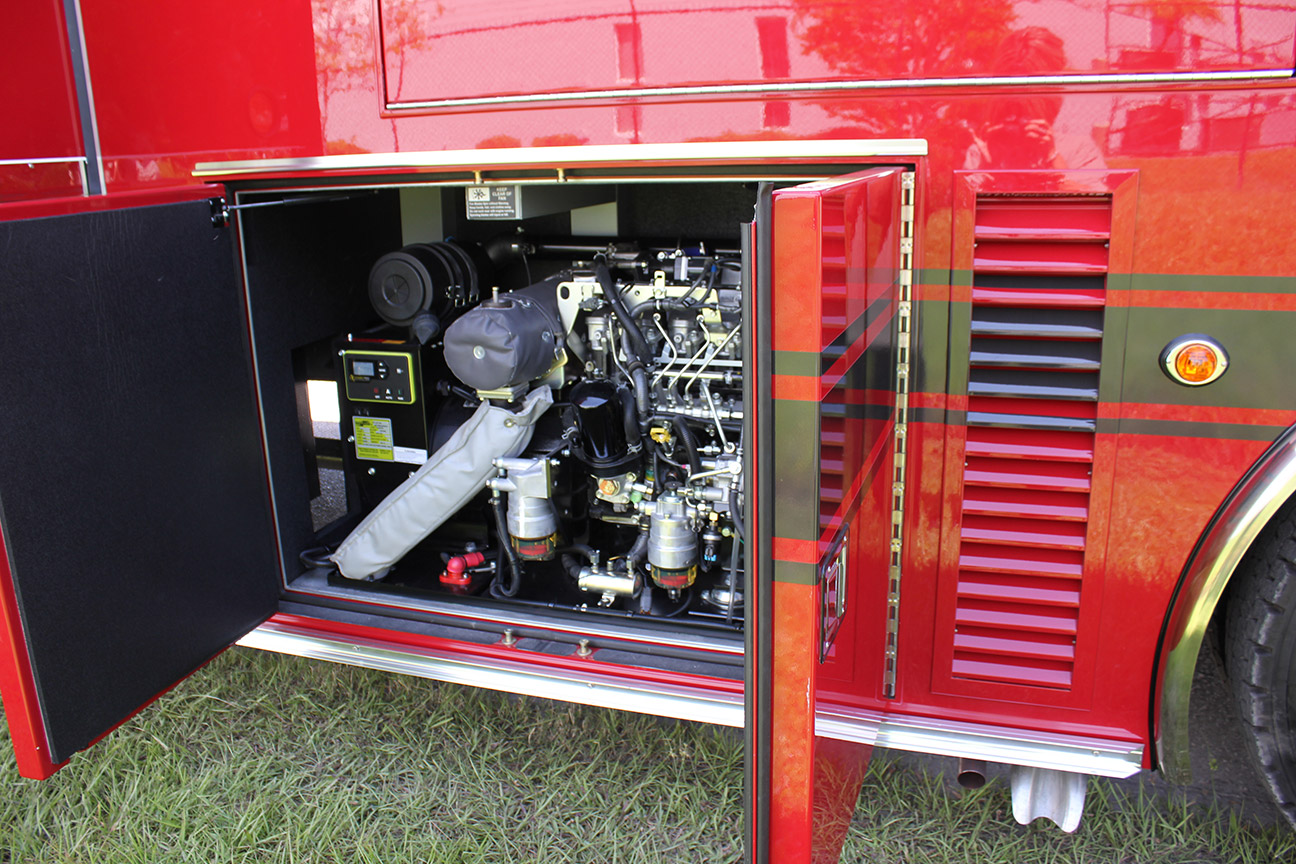

Generator Power

Up to 30kW

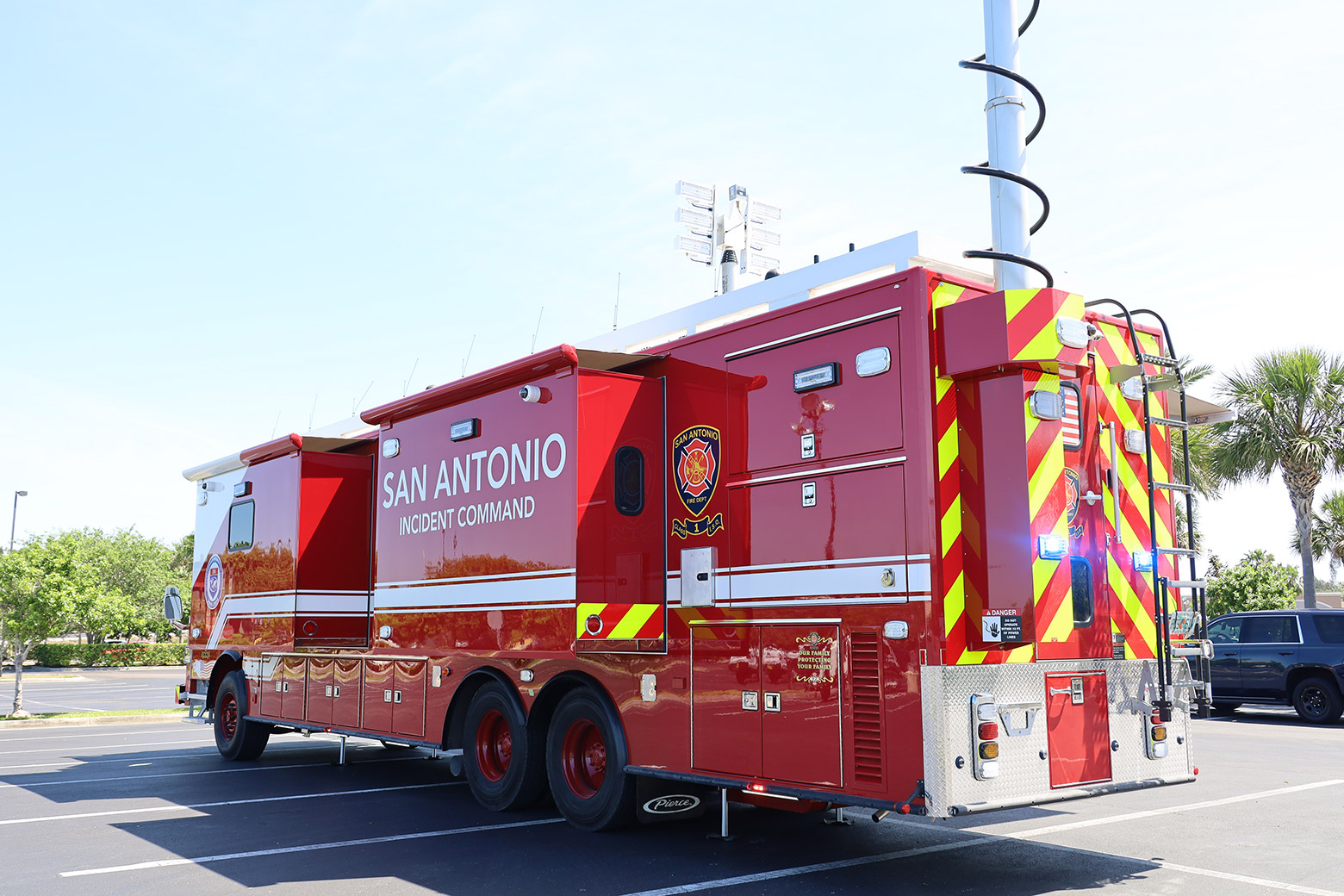

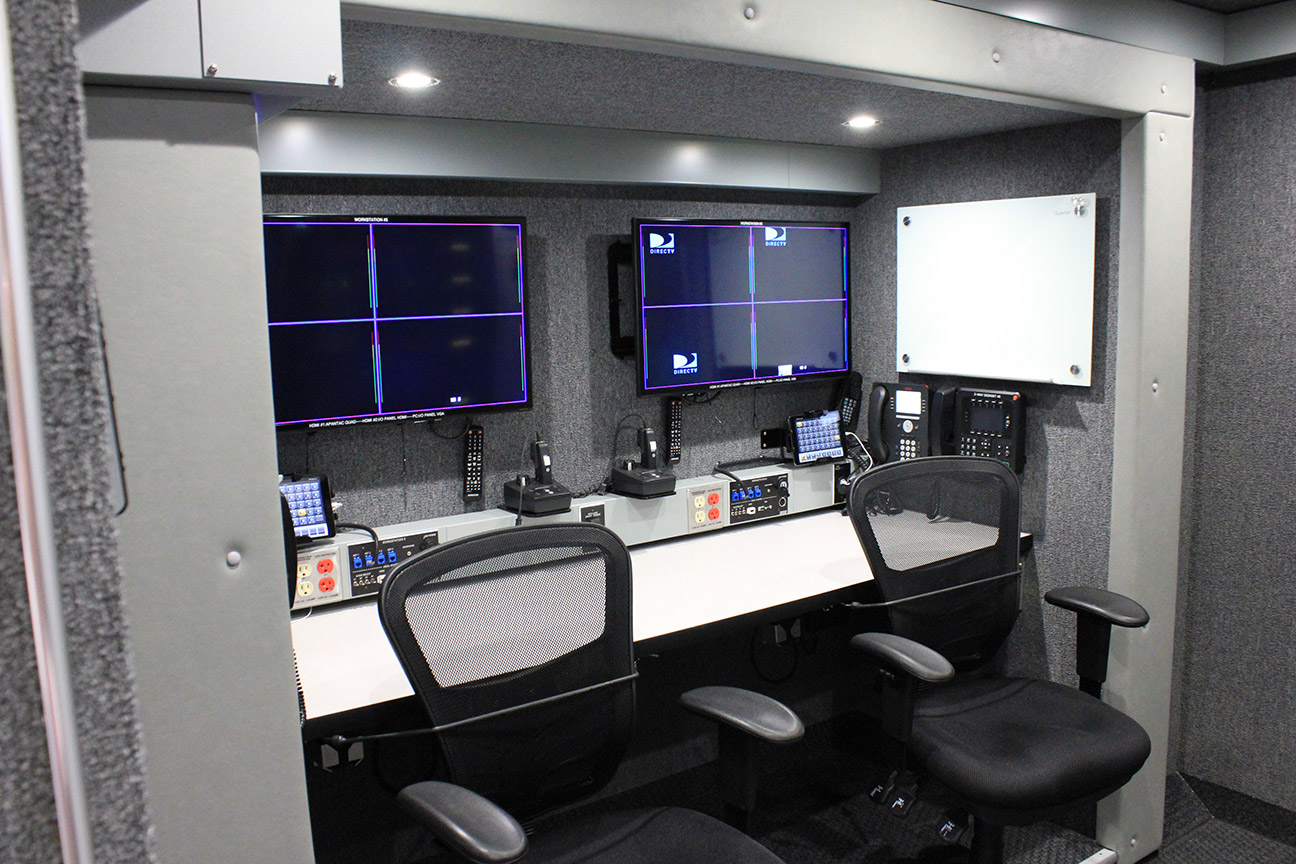

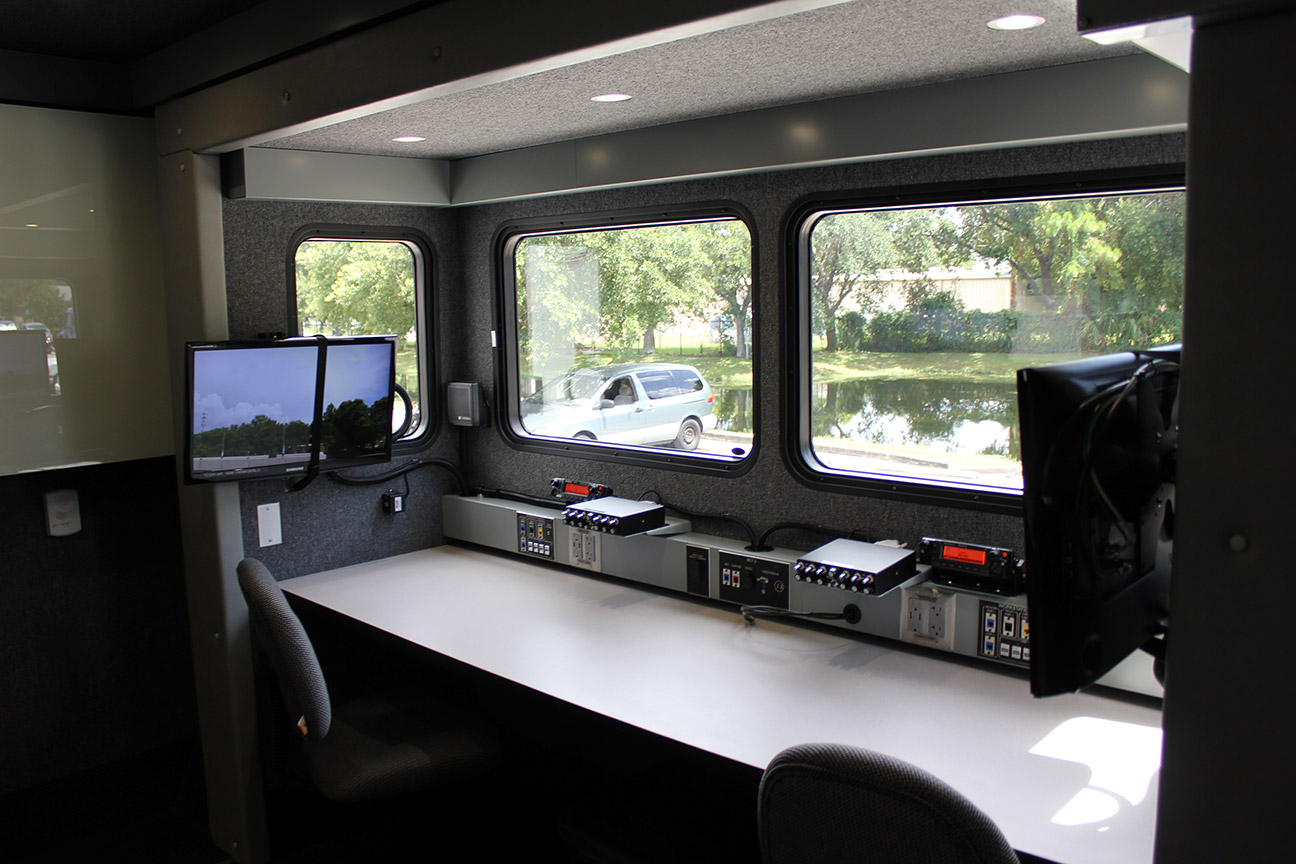

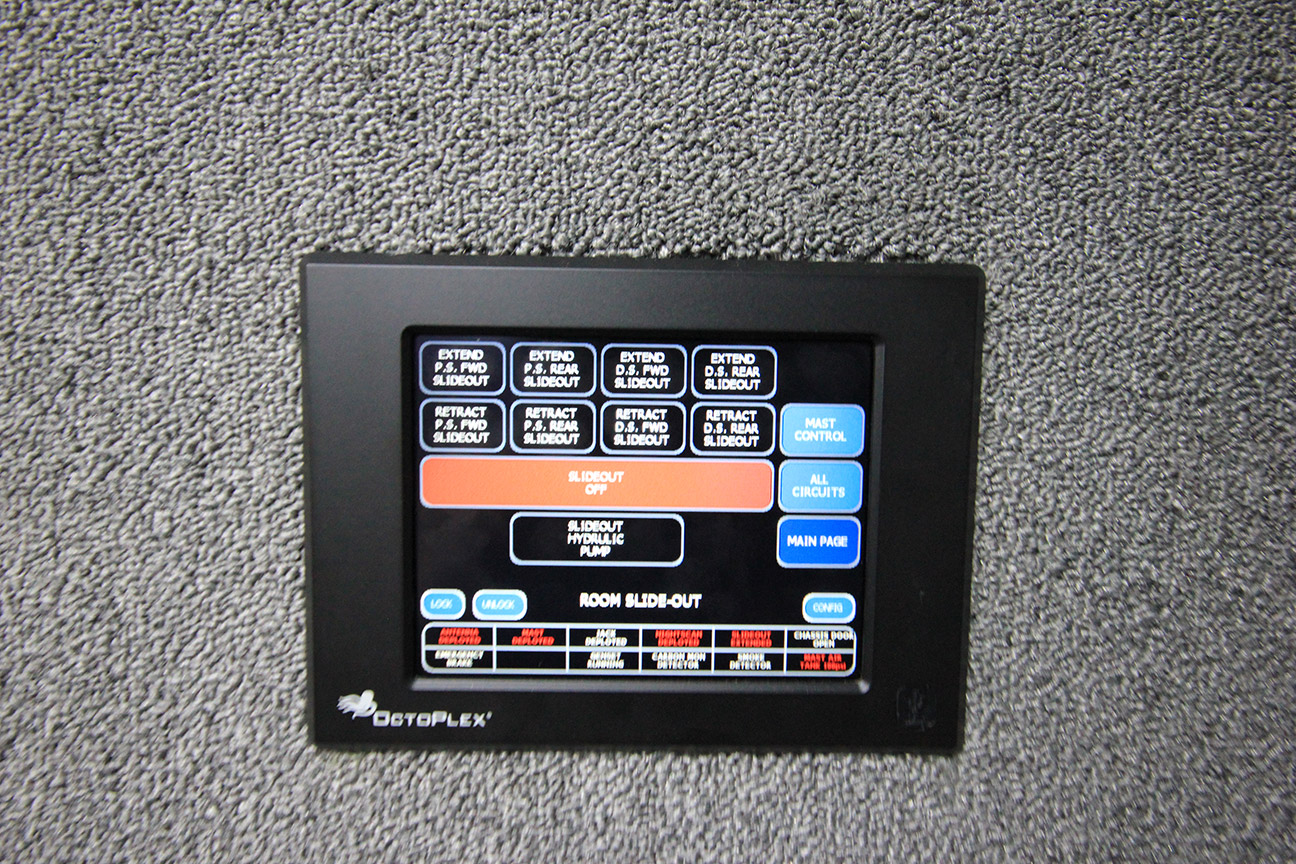

Slide-outs

Up to 4

GVWR

Up to 65,000 lb

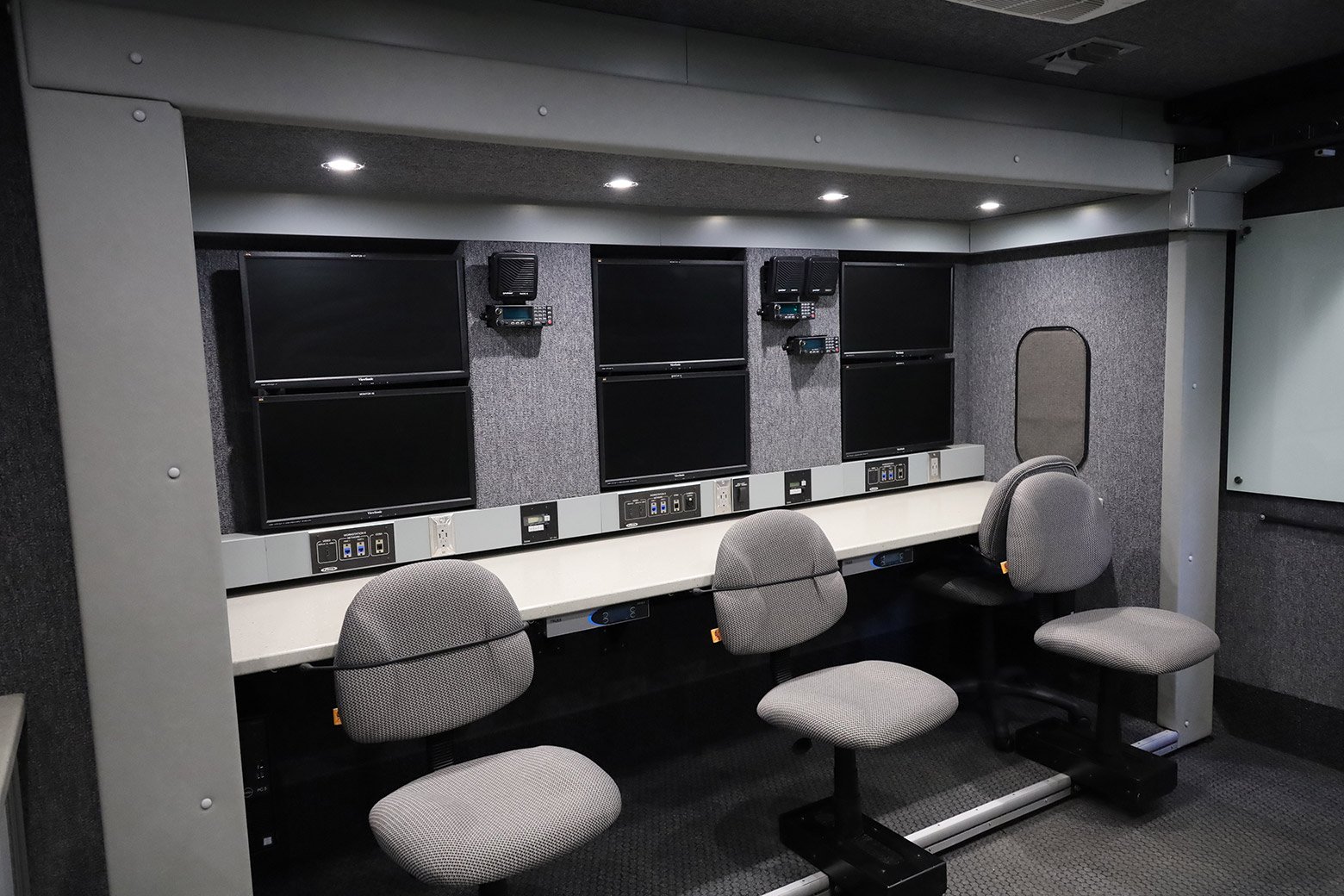

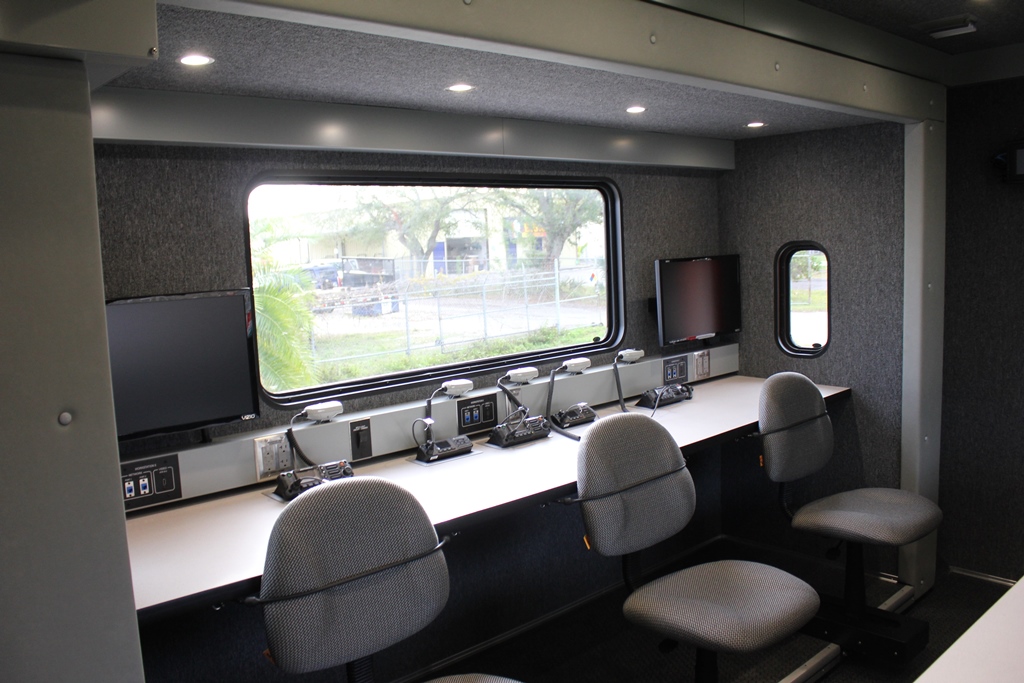

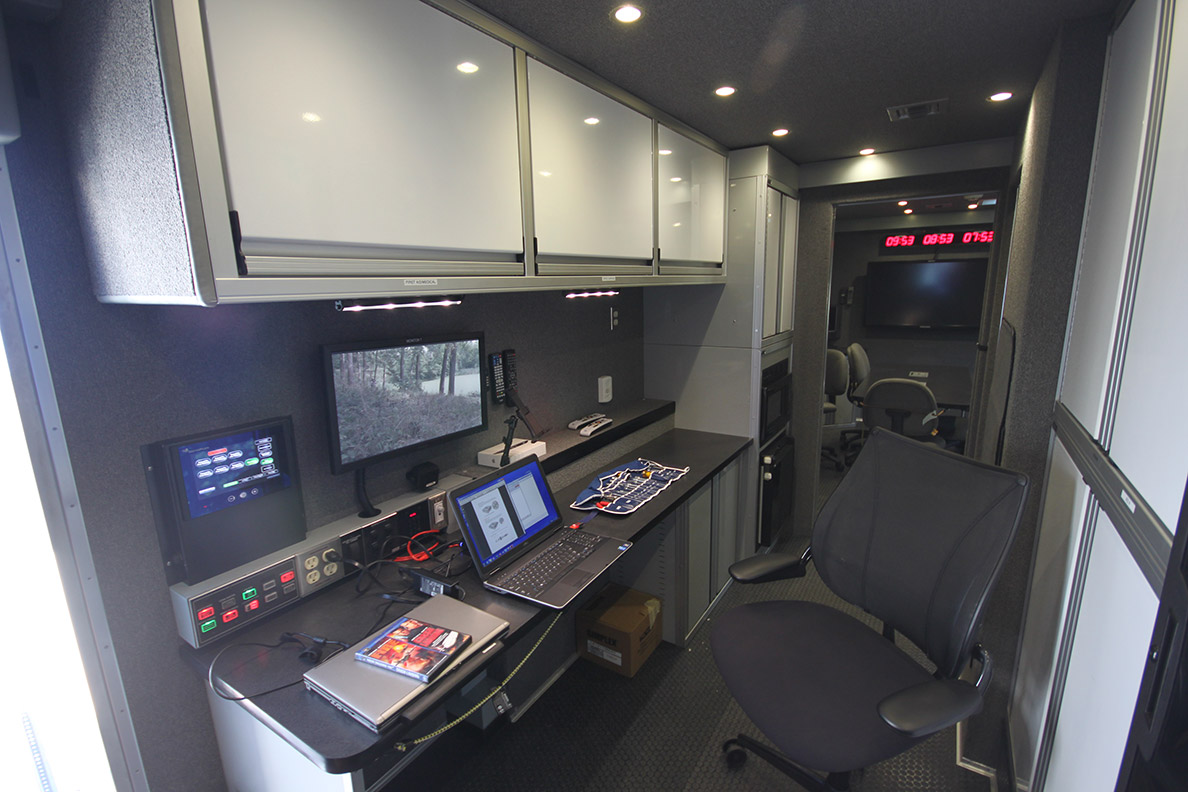

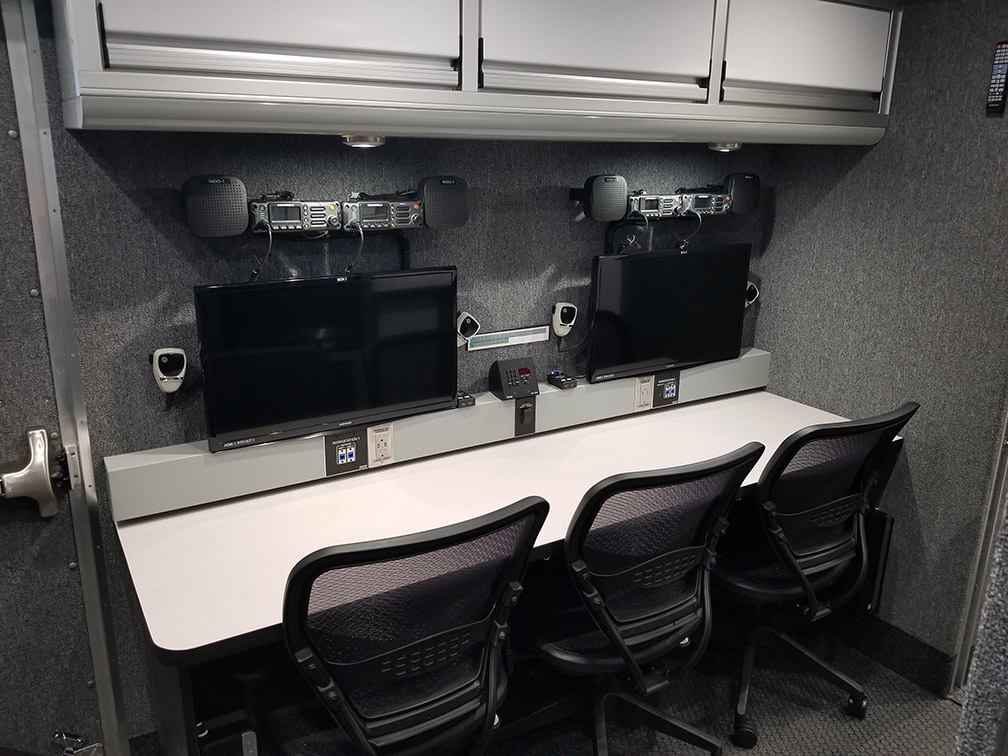

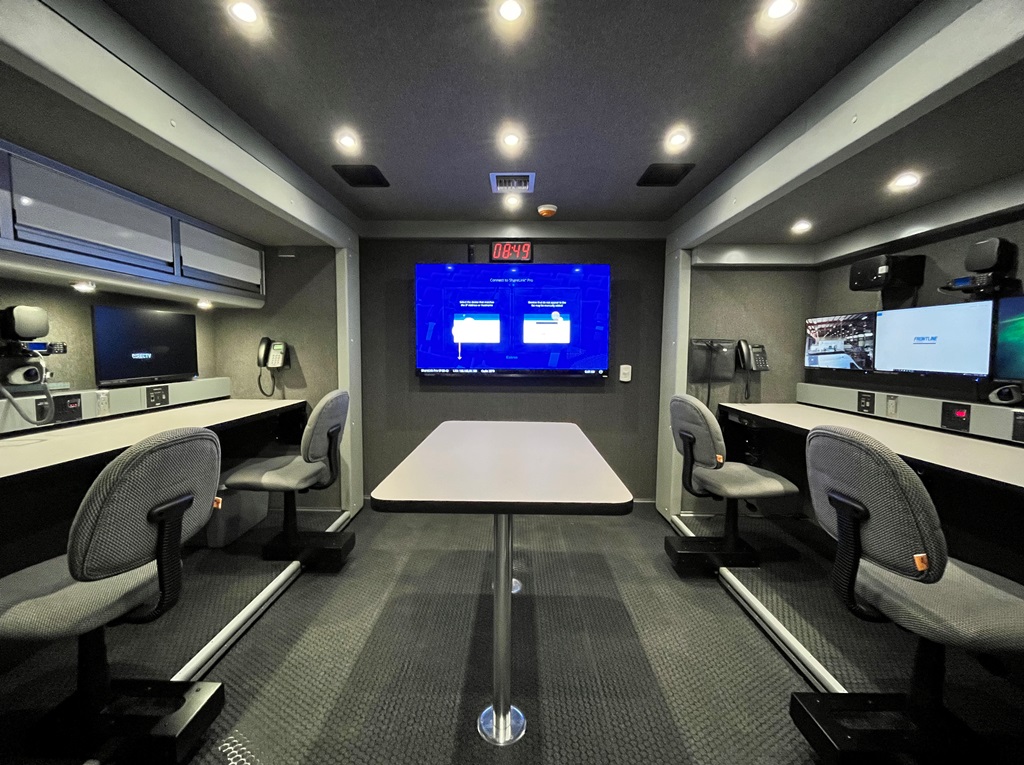

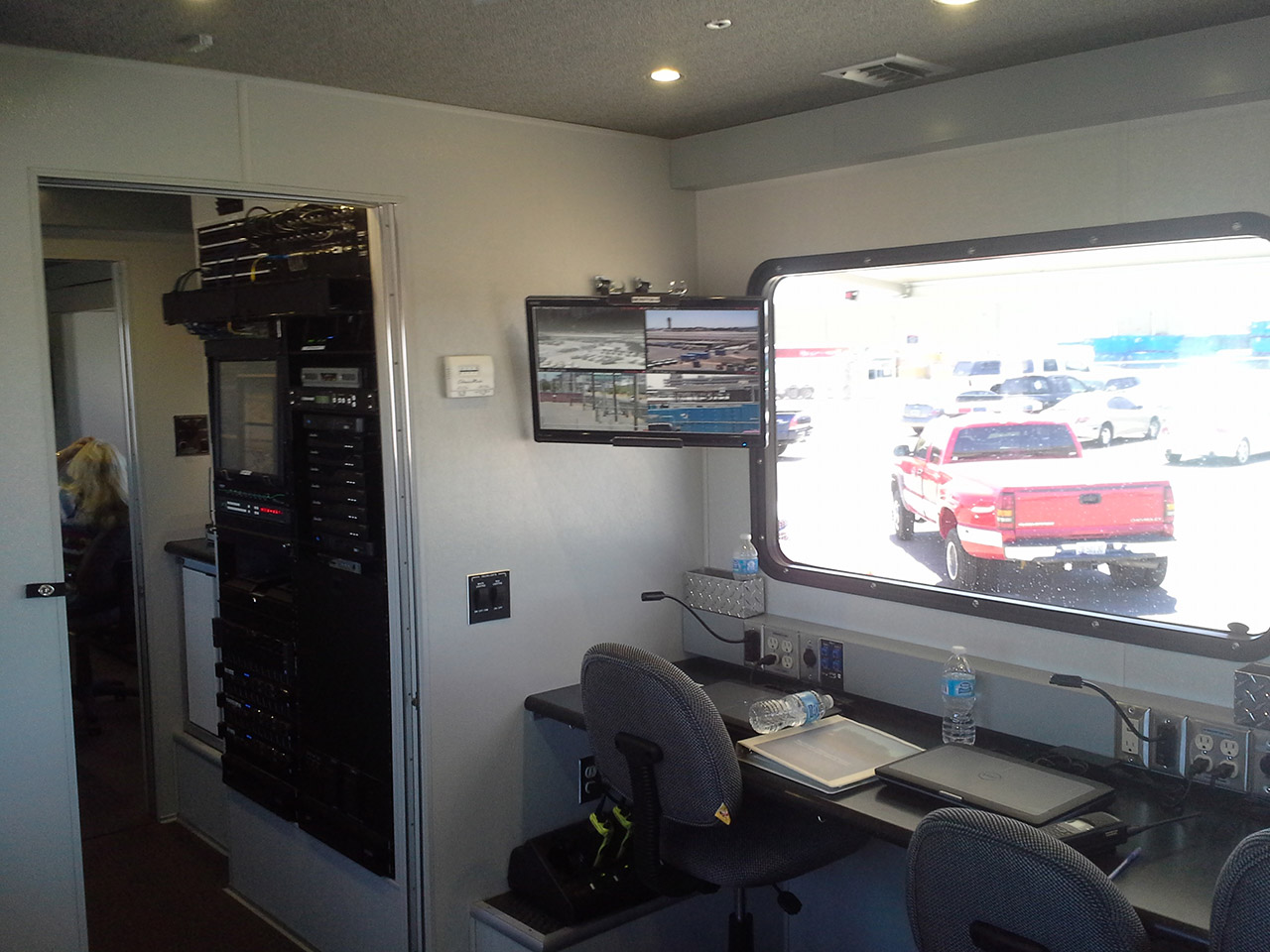

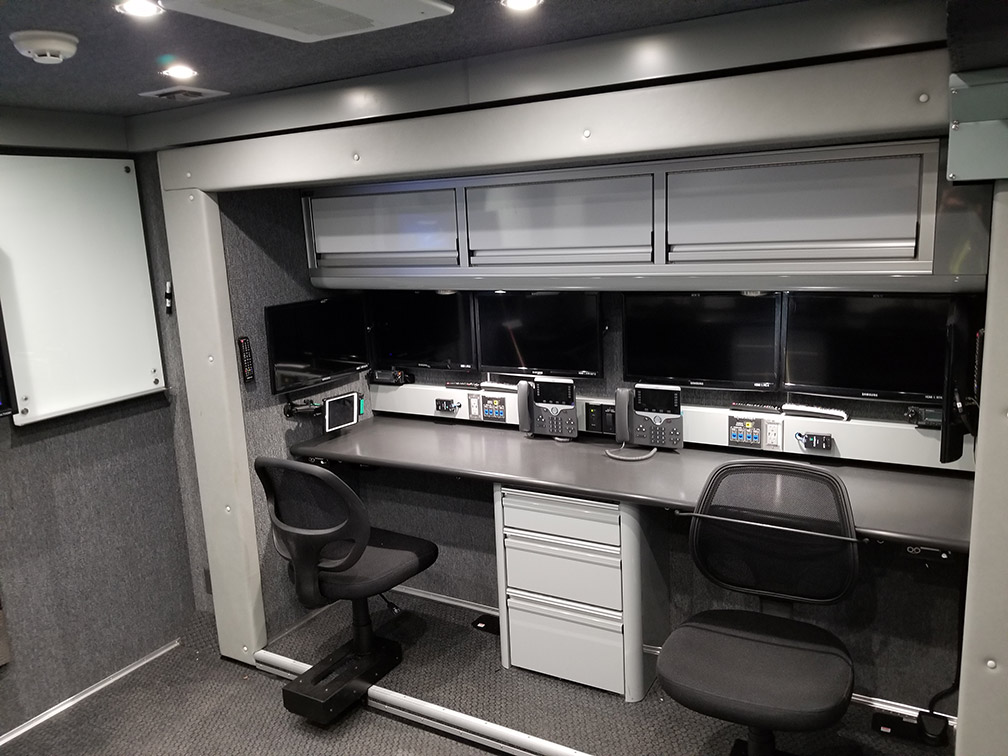

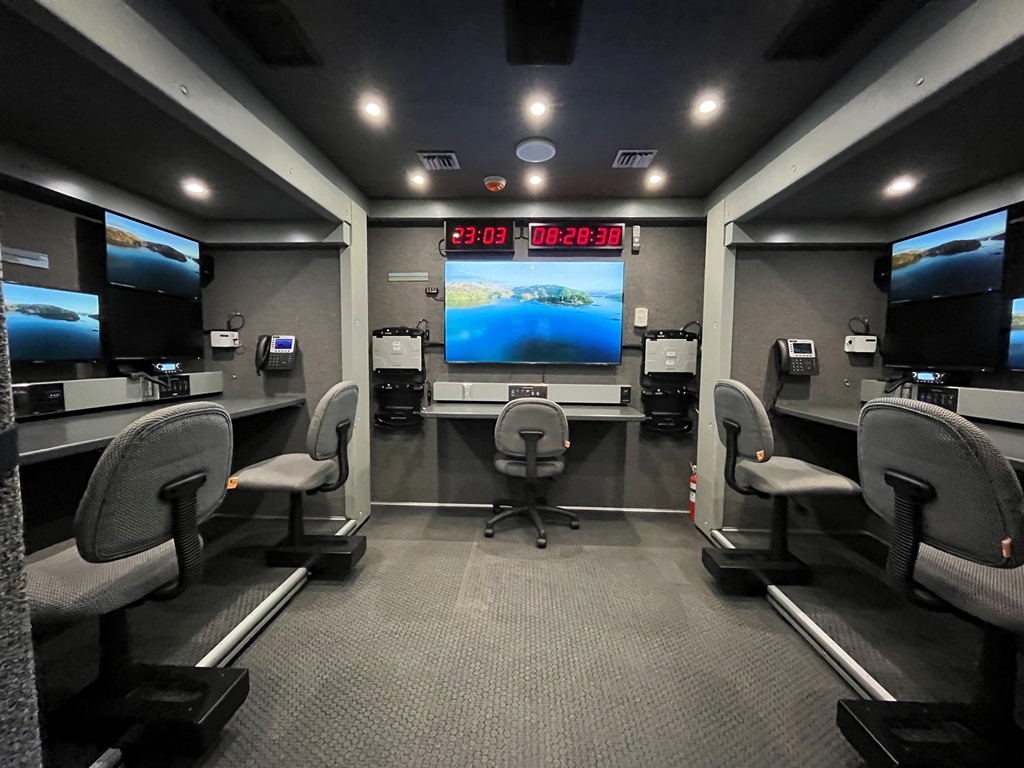

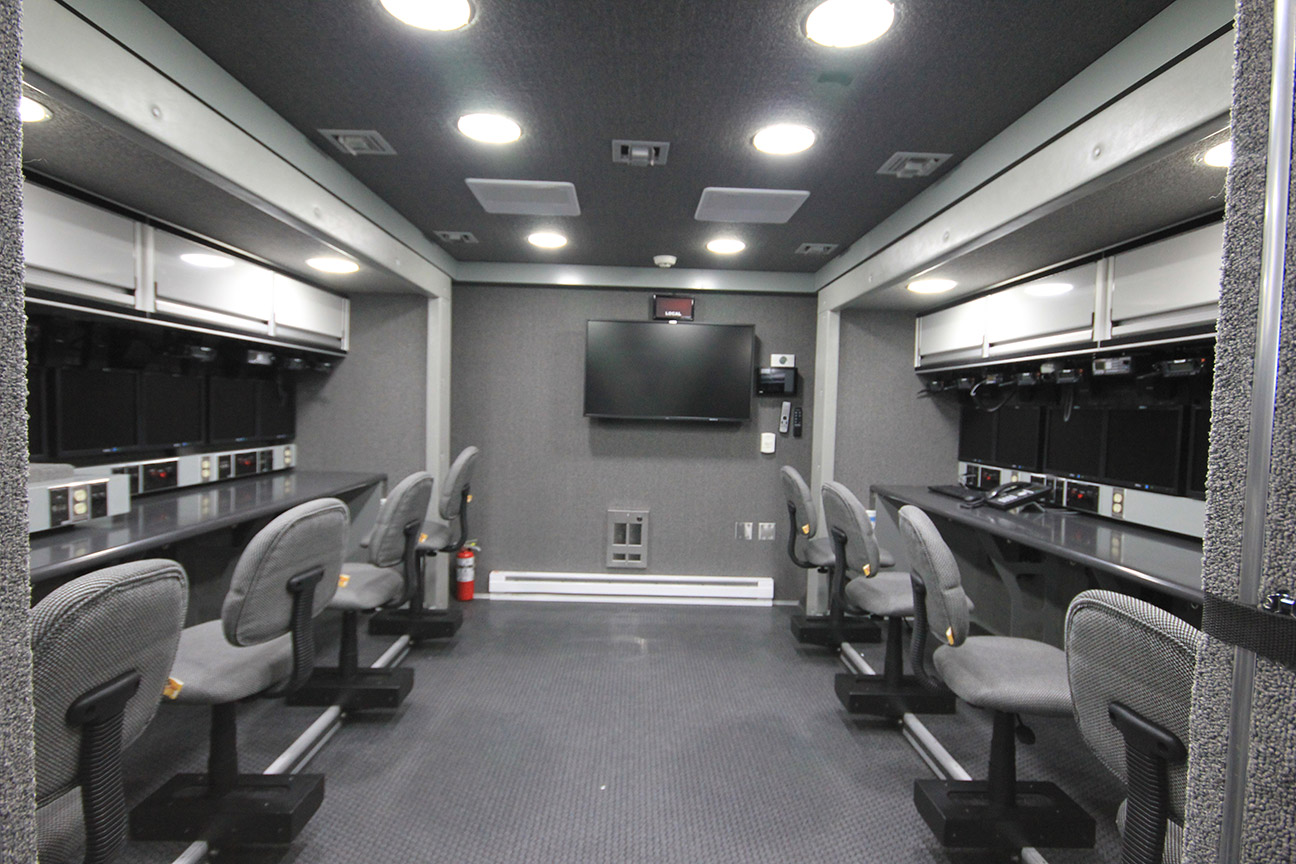

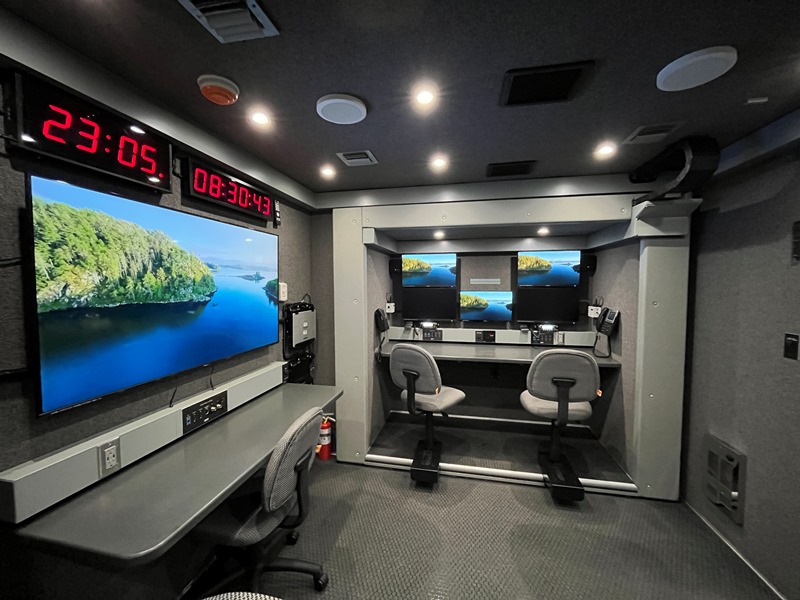

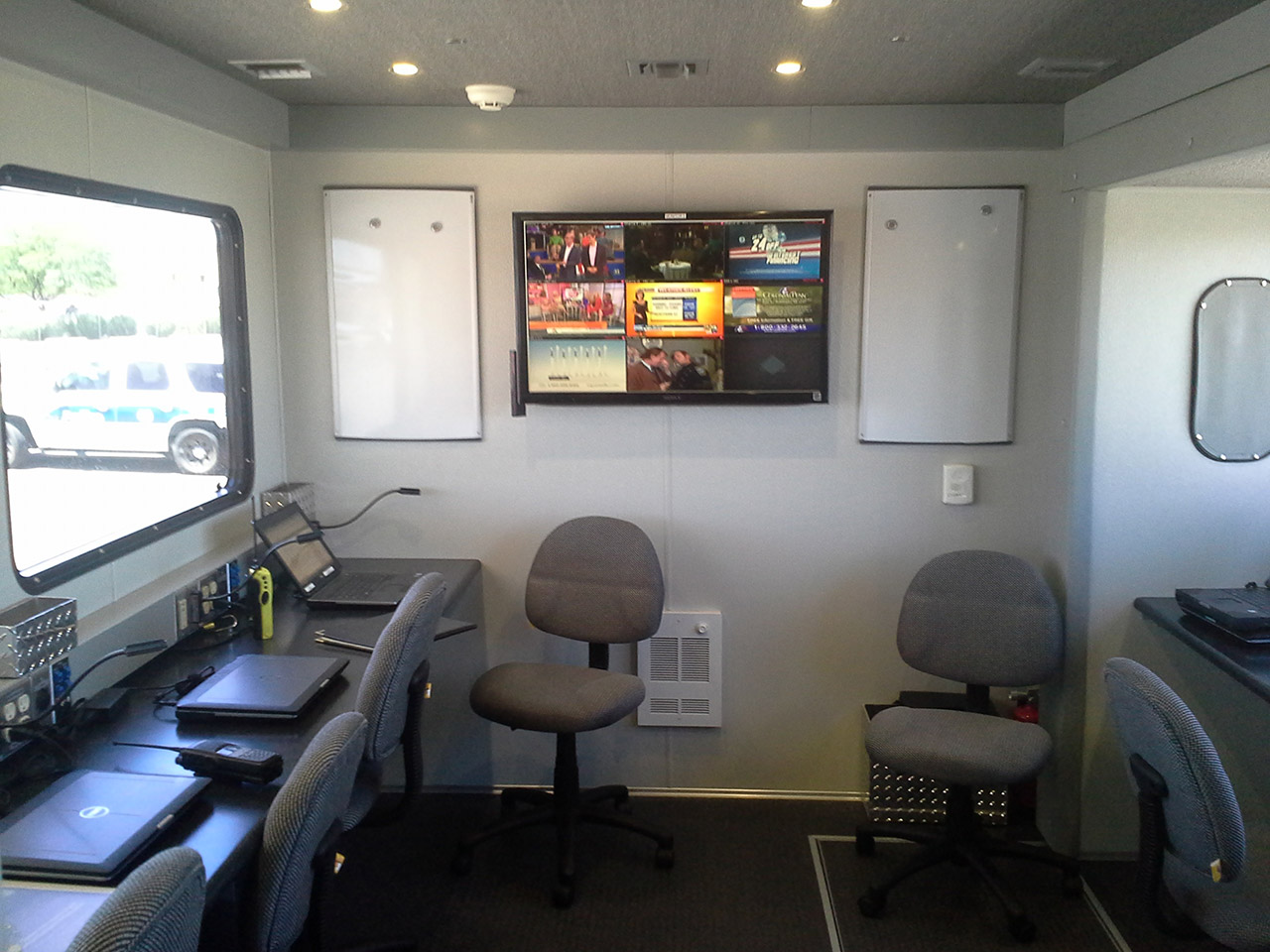

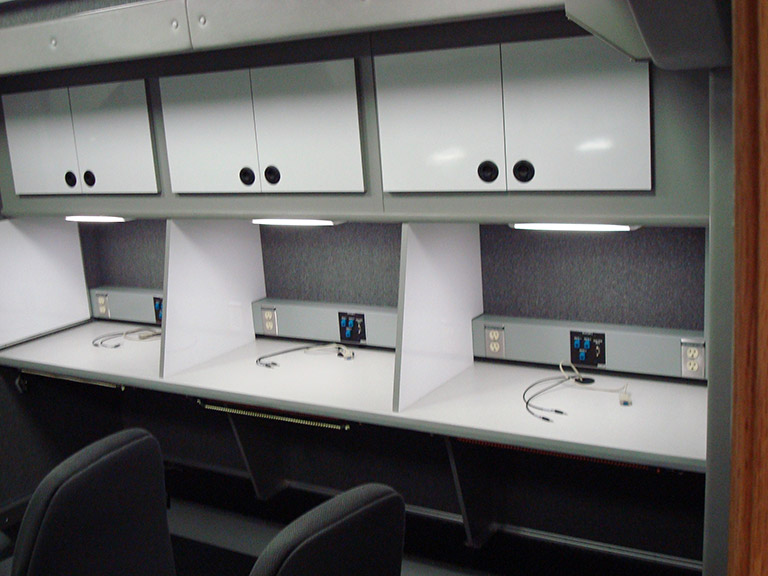

Workstations

Up to 8

Warranty

Body: 10-years
Paint: 5-years
Electrical: 2-years
Fabricated parts: 5-years
Workmanship: 1-year

Vehicle Equipment

Vehicle

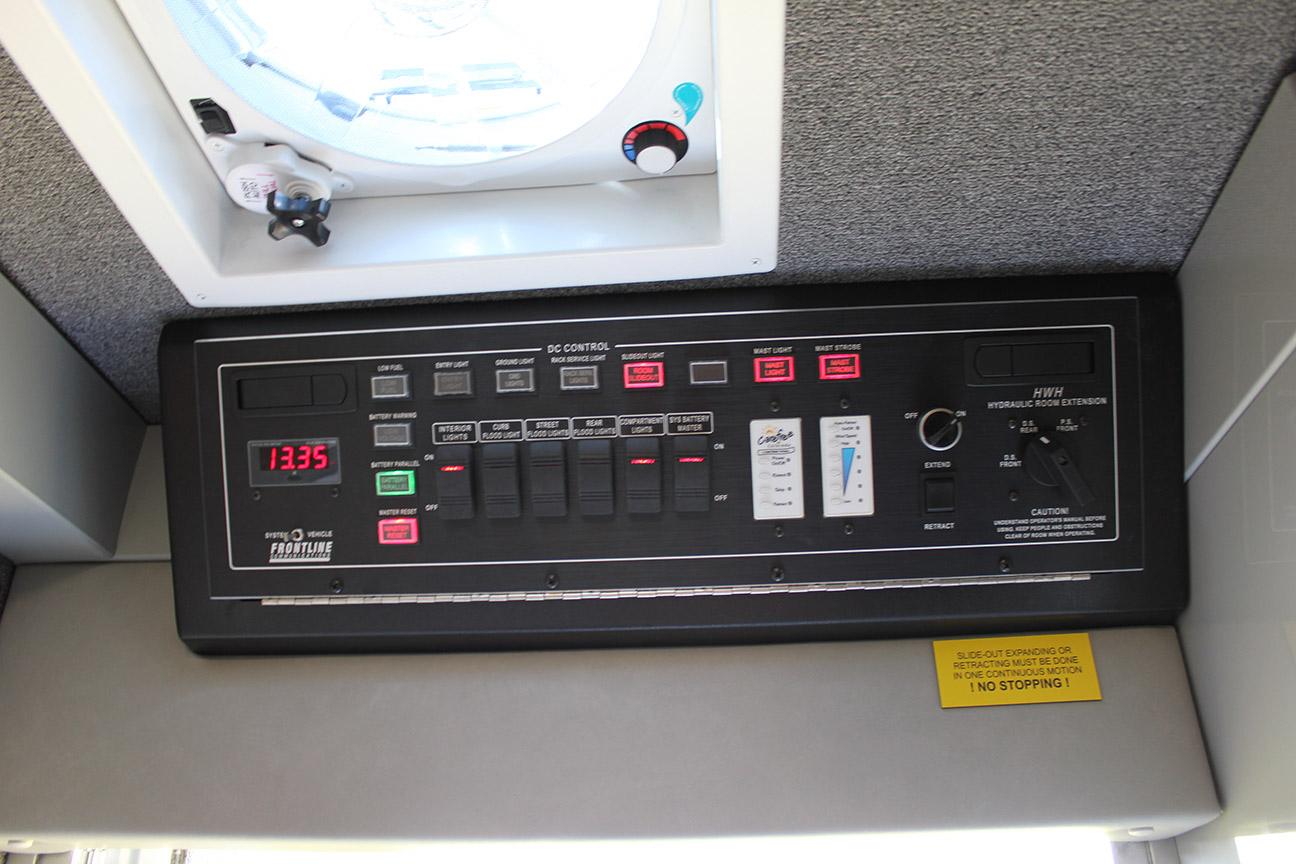

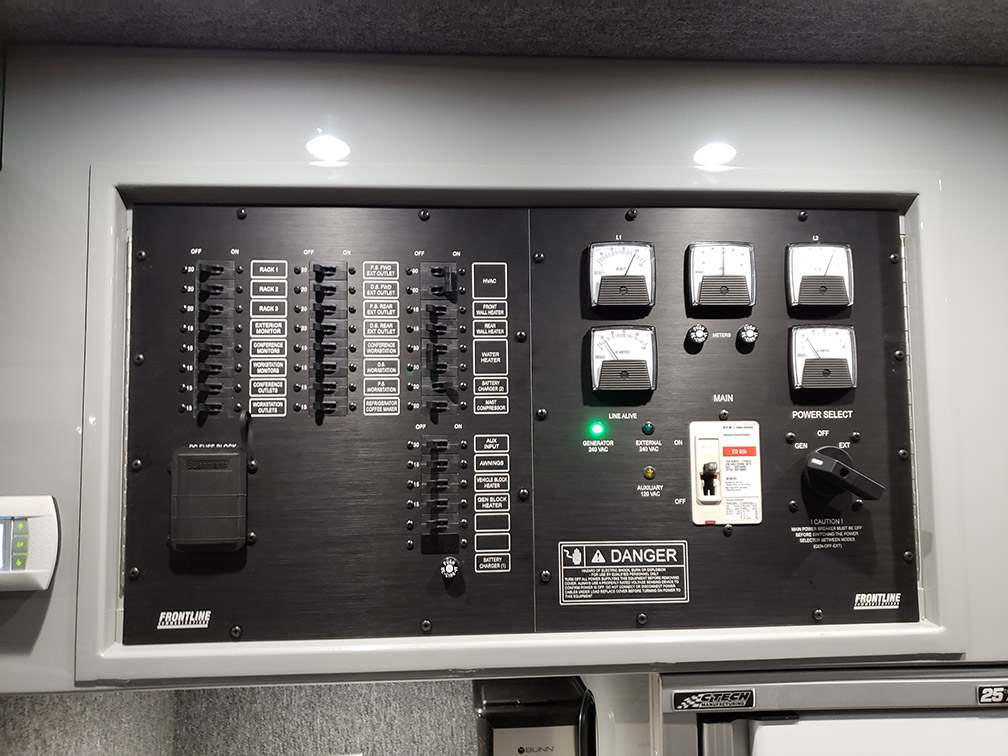

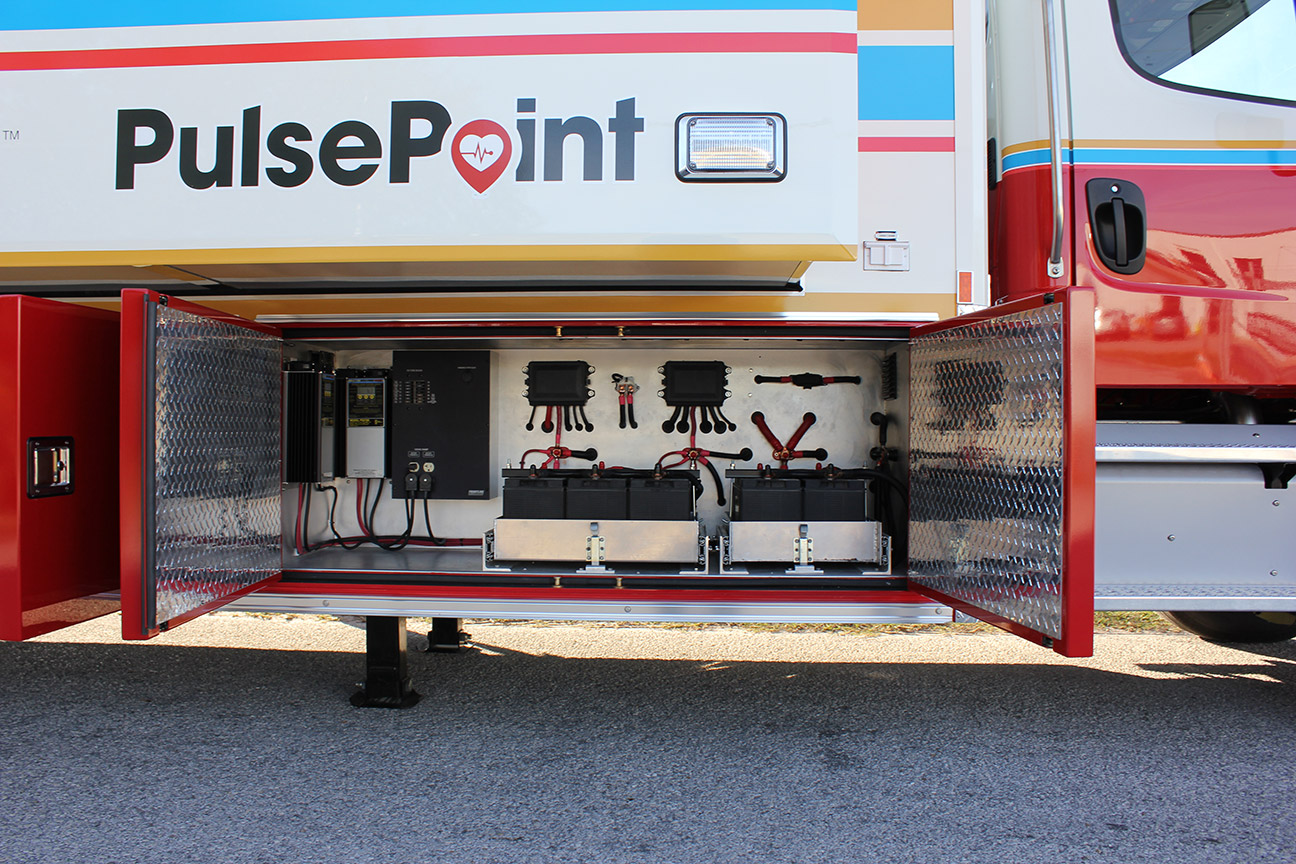

Custom power panel
240V/50A power system

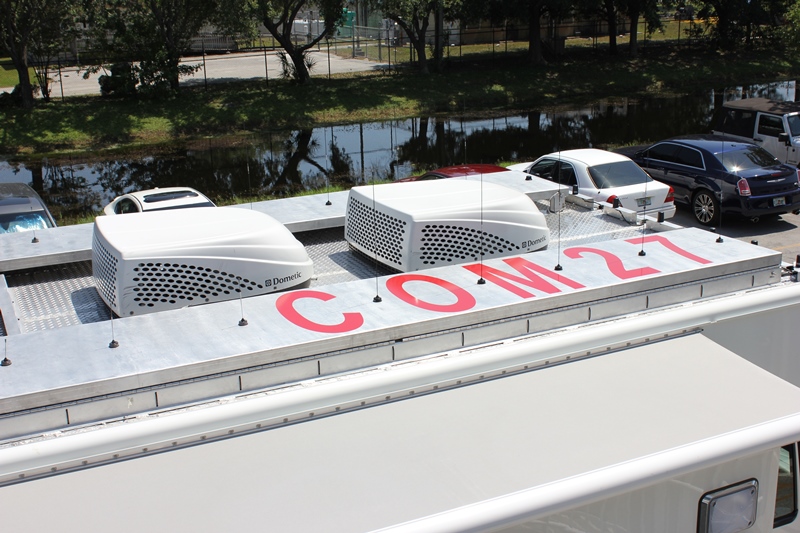

4 roof-mount 15,000 BTU HVAC

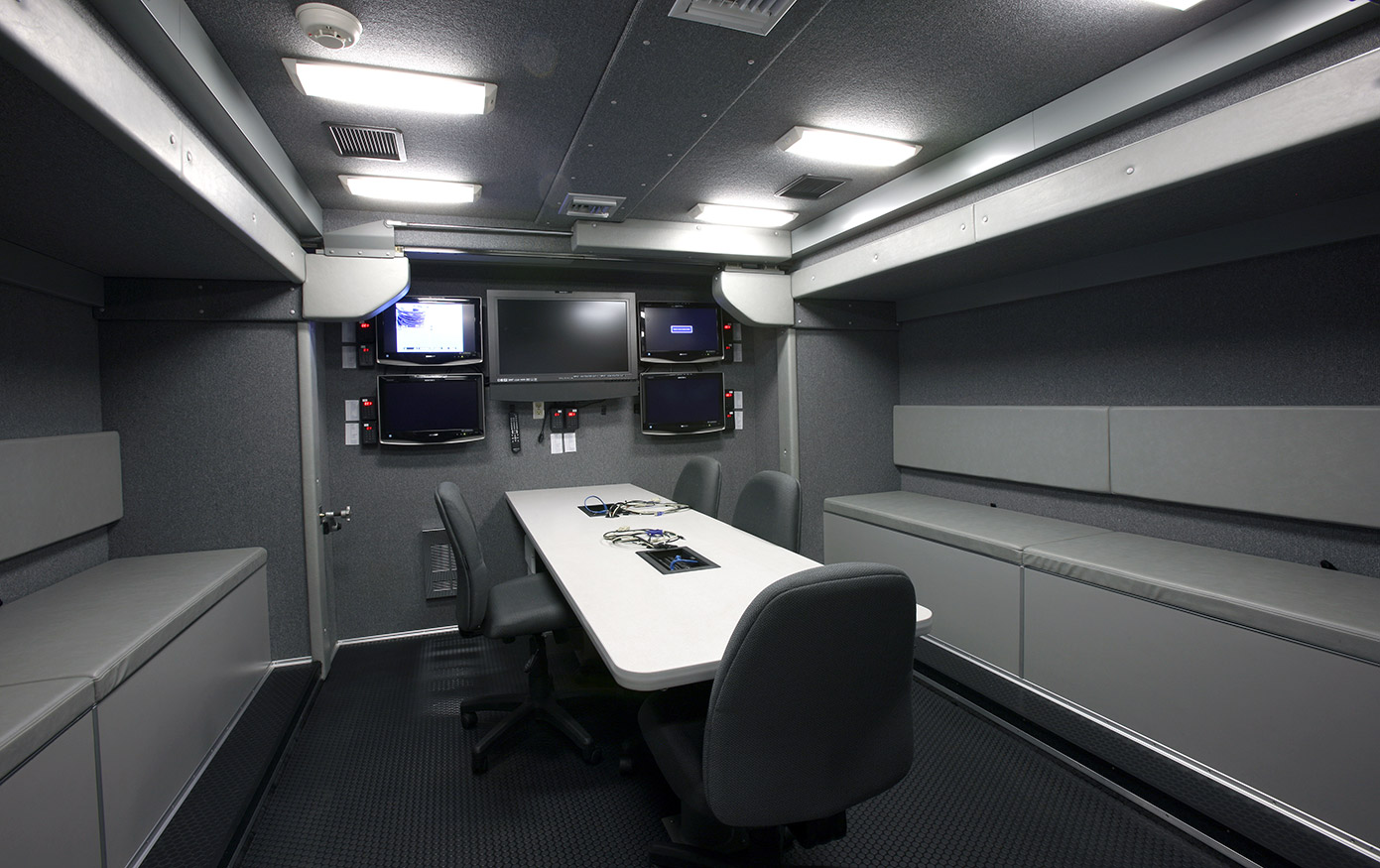

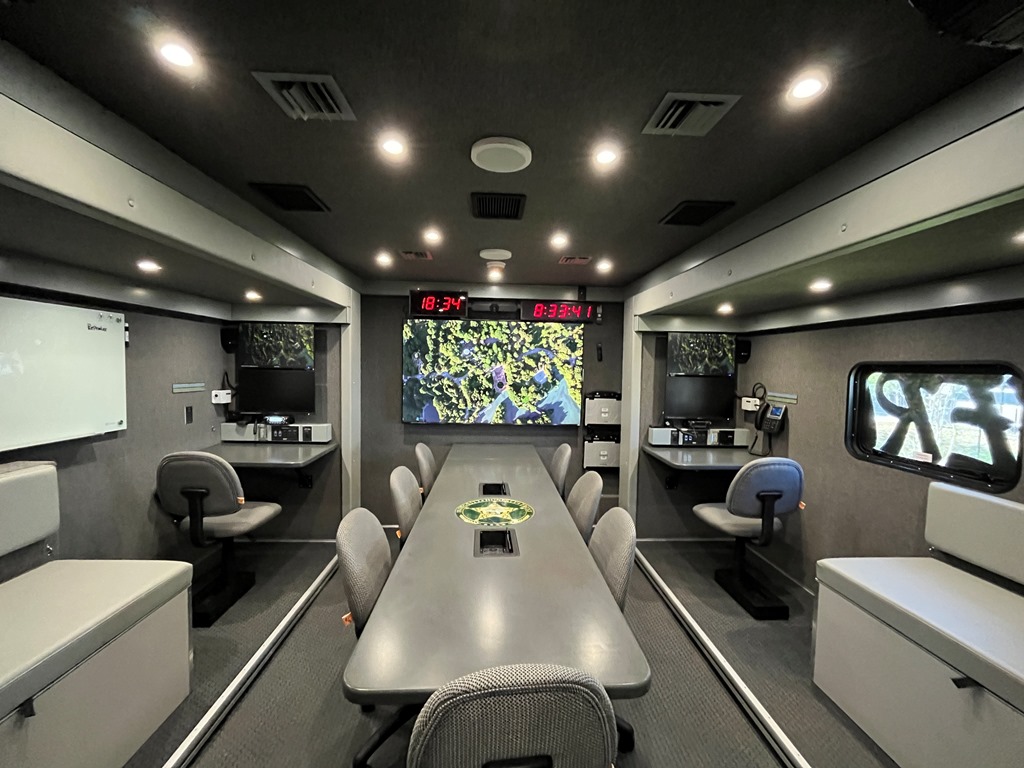

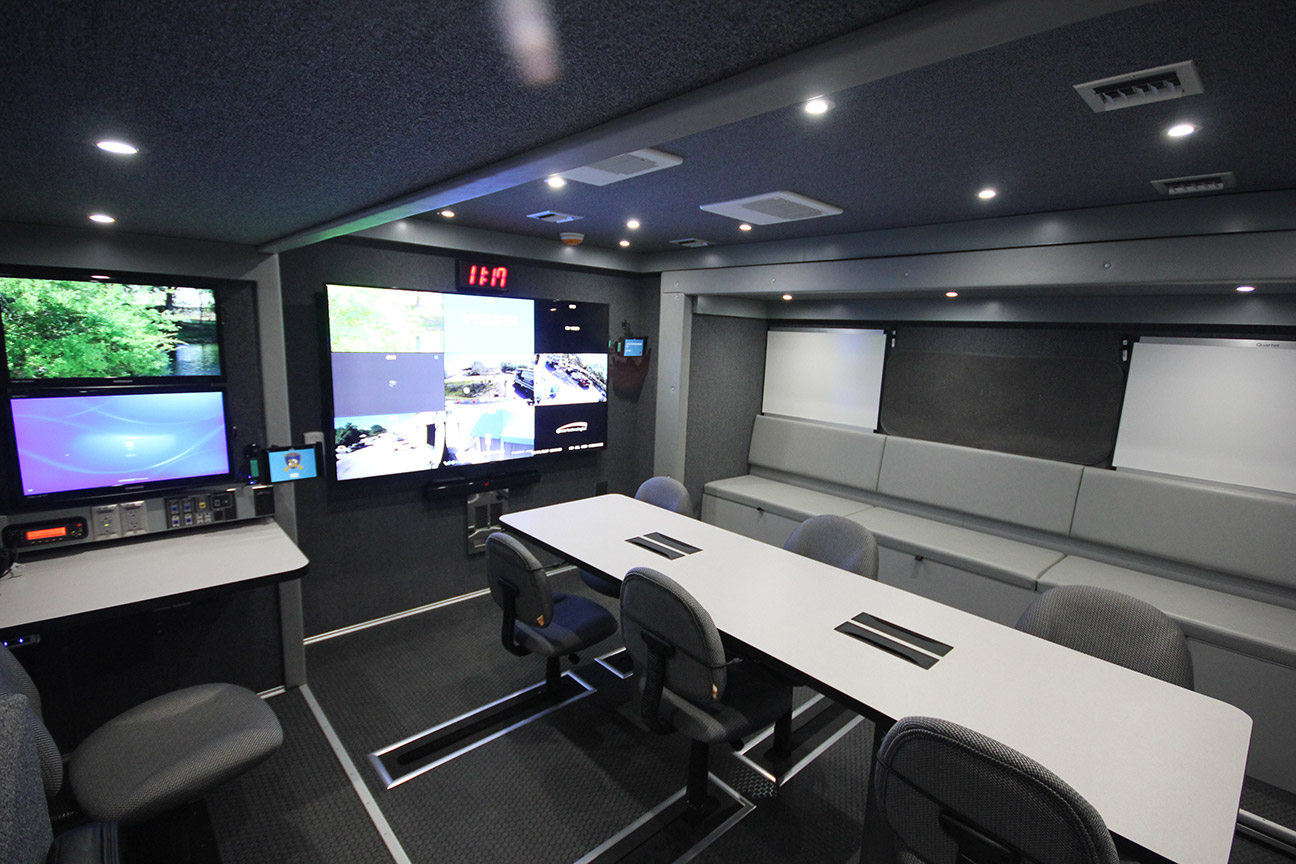

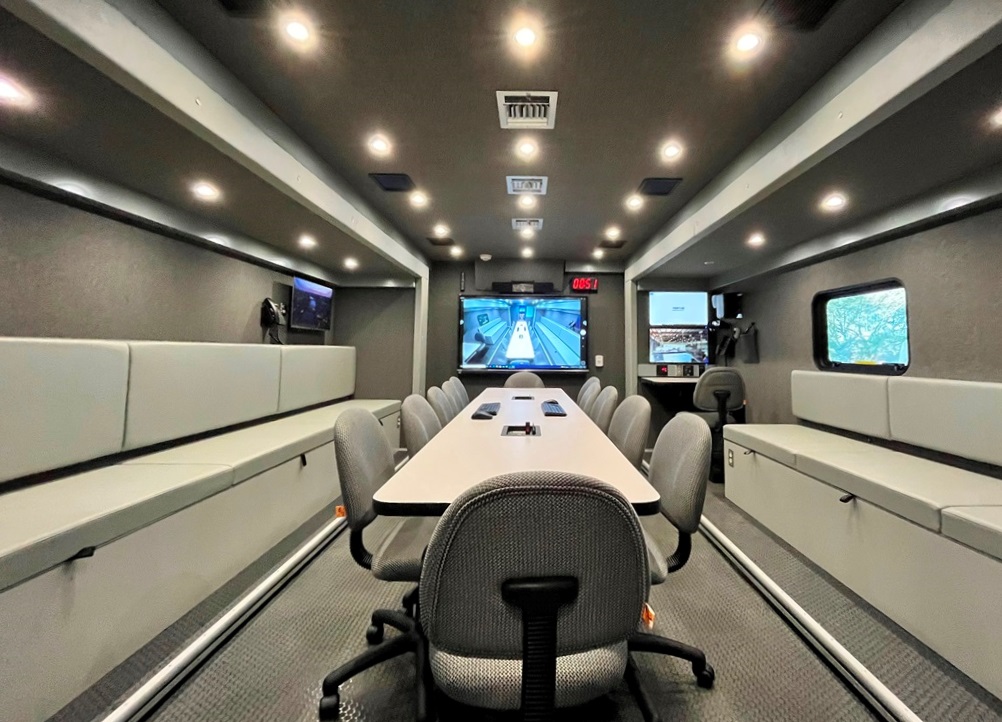

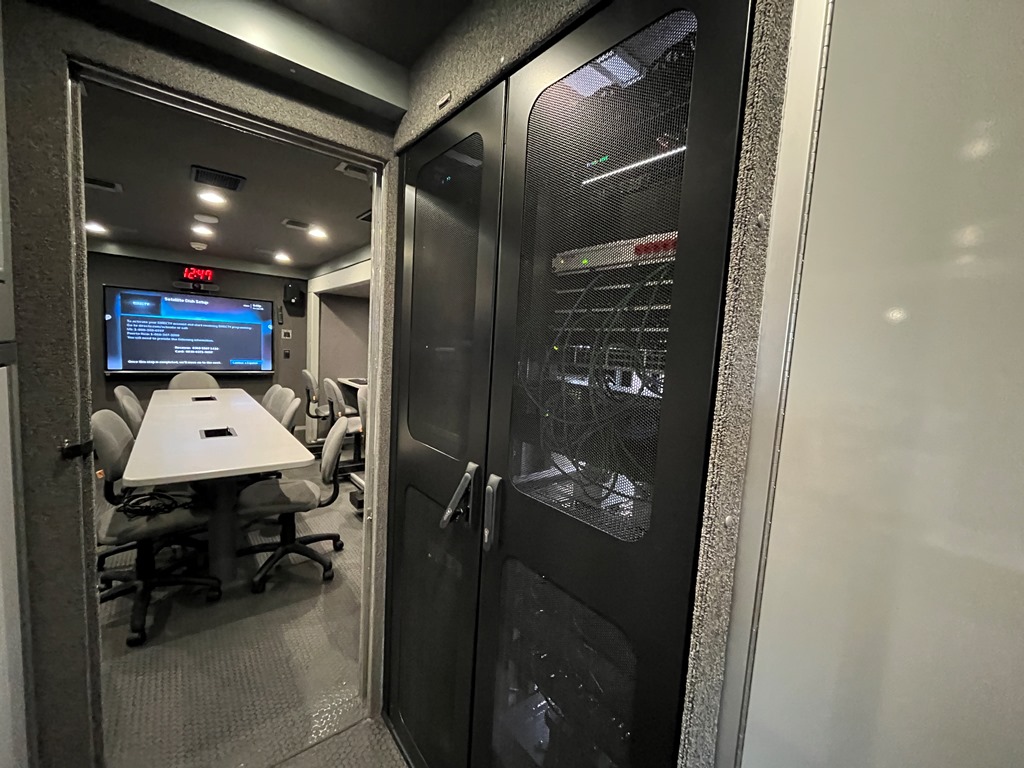

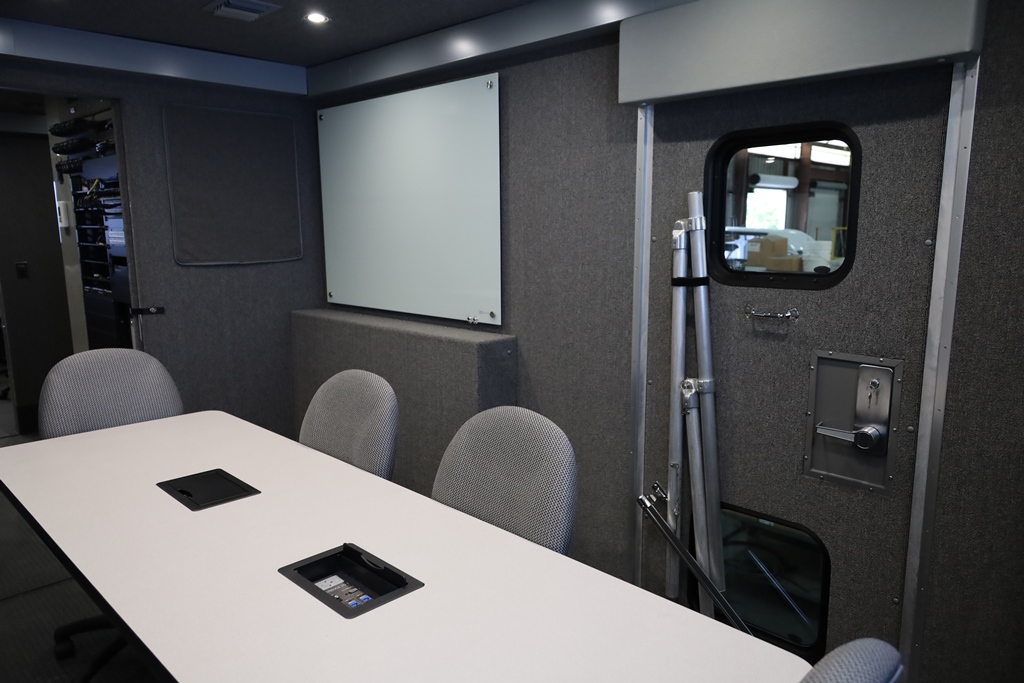

Large conference table

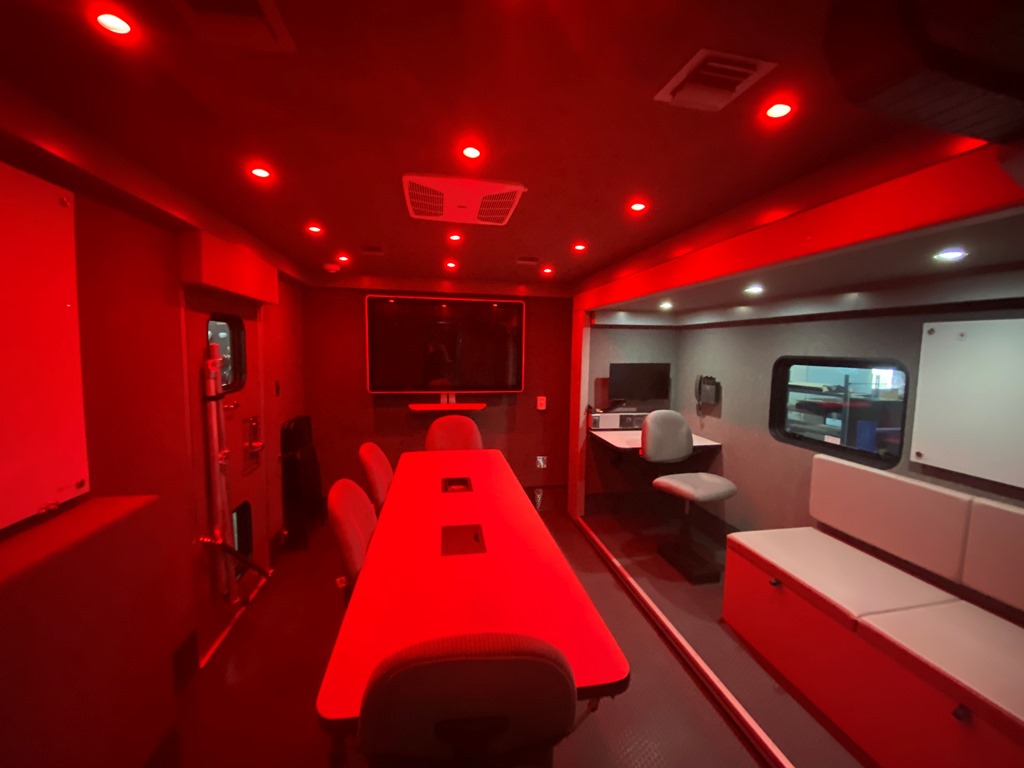

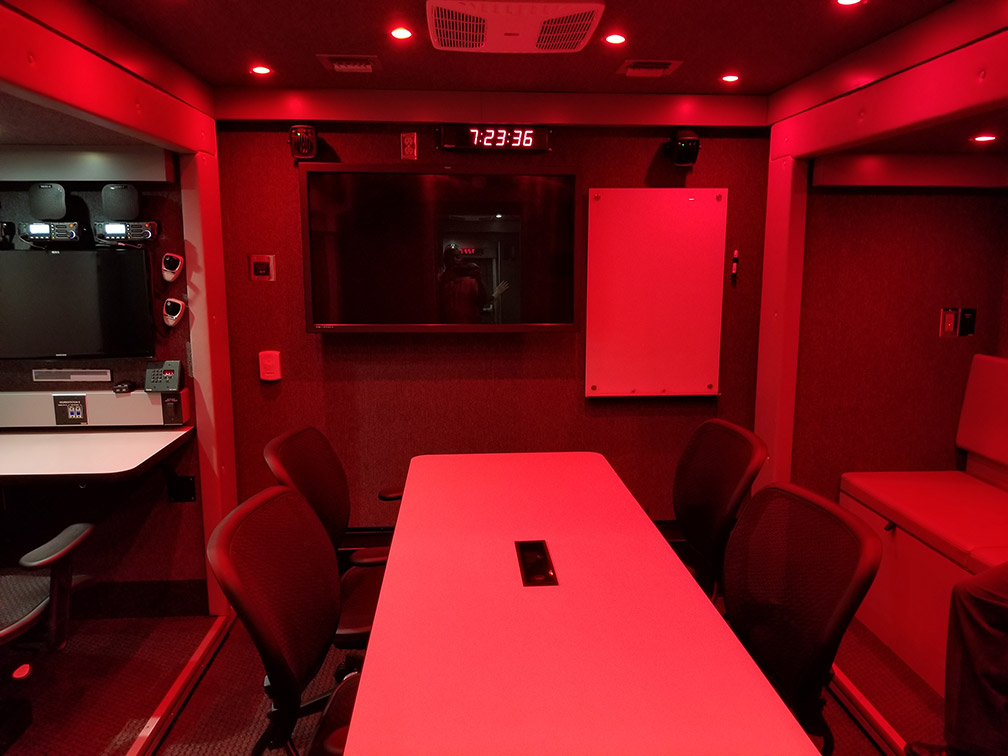

Red/white dimmable interior lighting

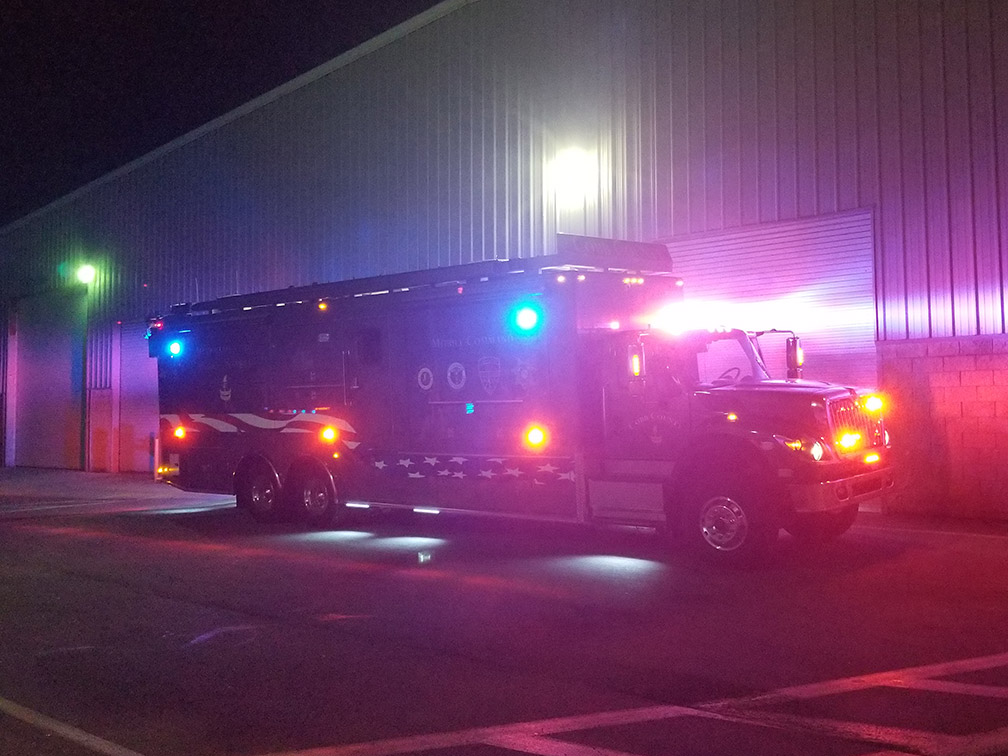

Emergency lighting
Scene lighting

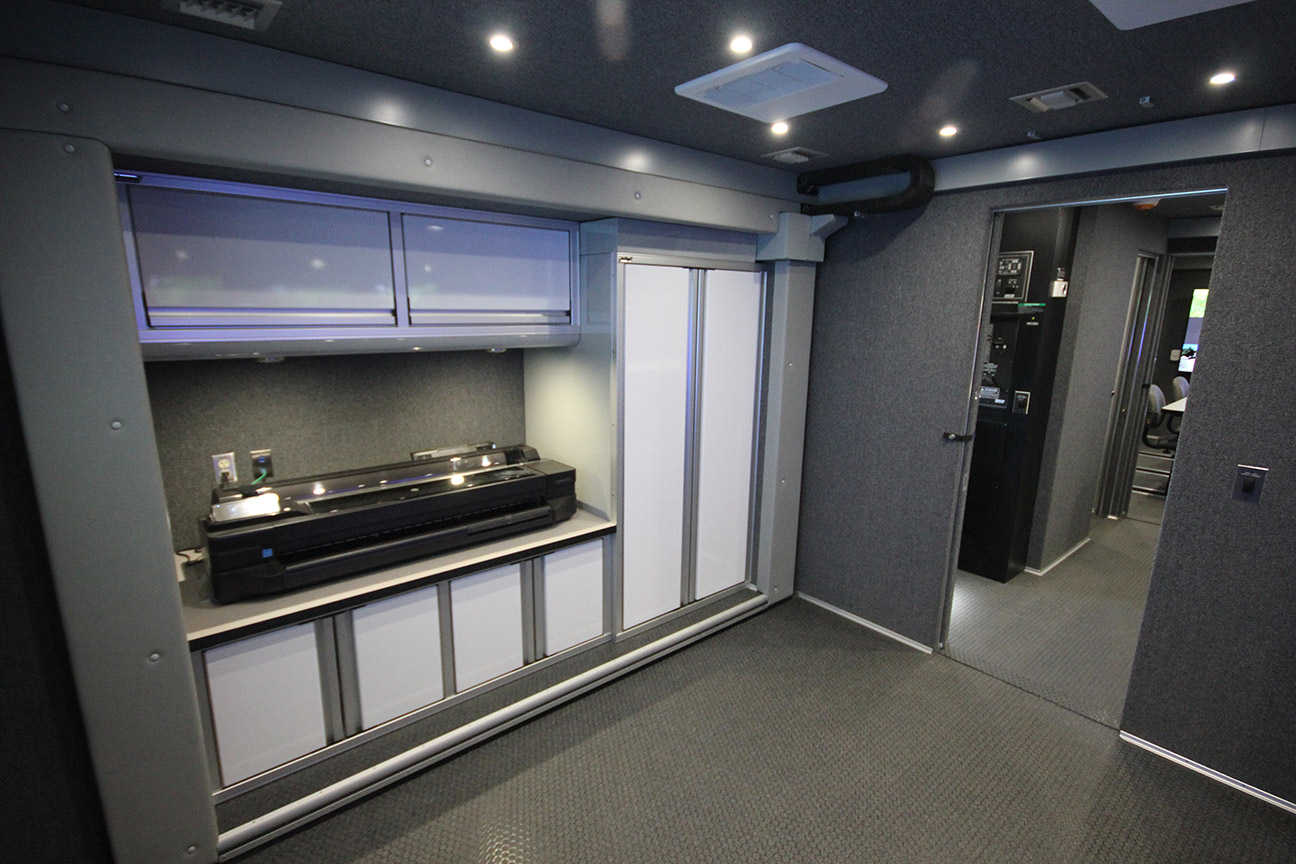

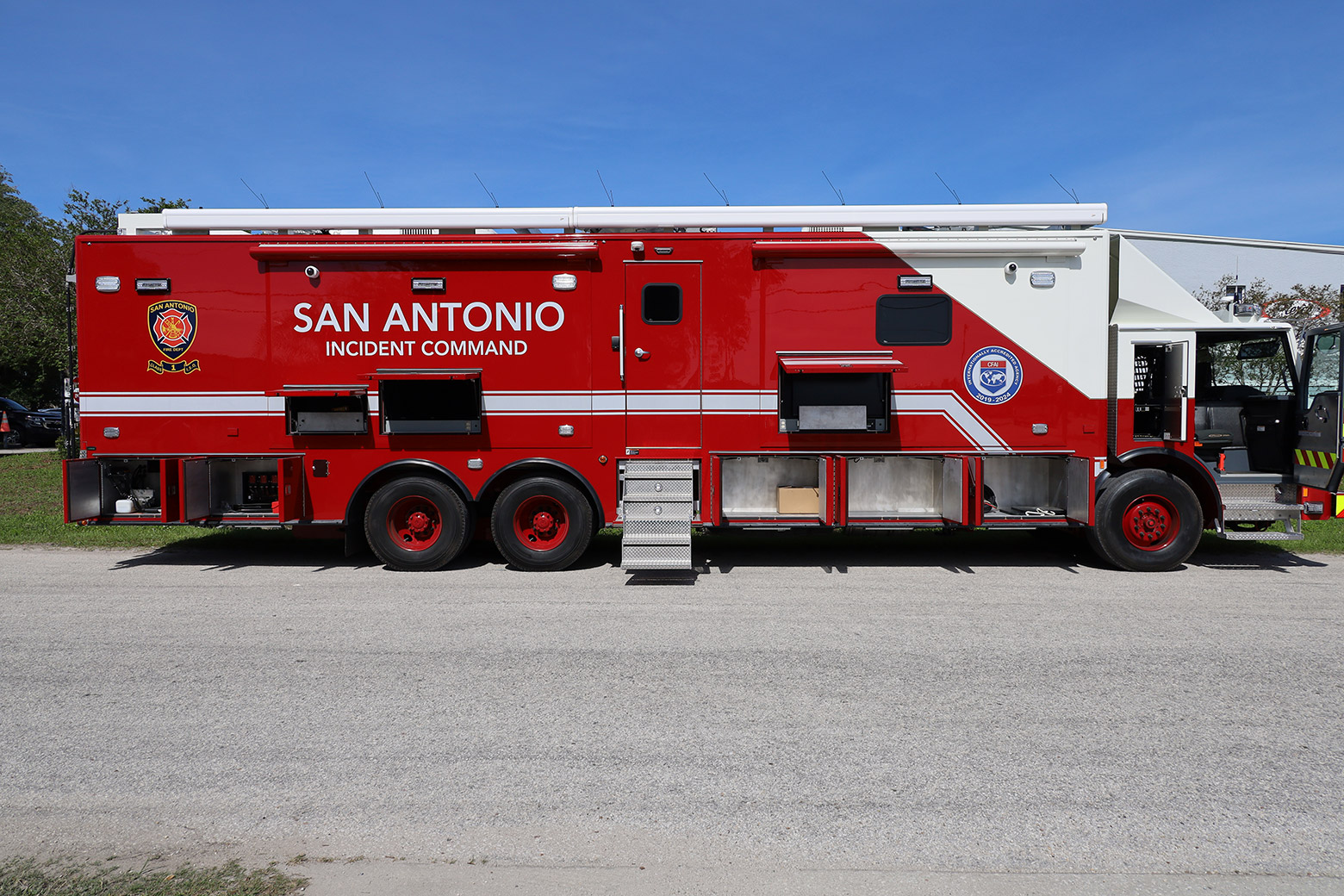

Custom aluminum cabinets

Systems

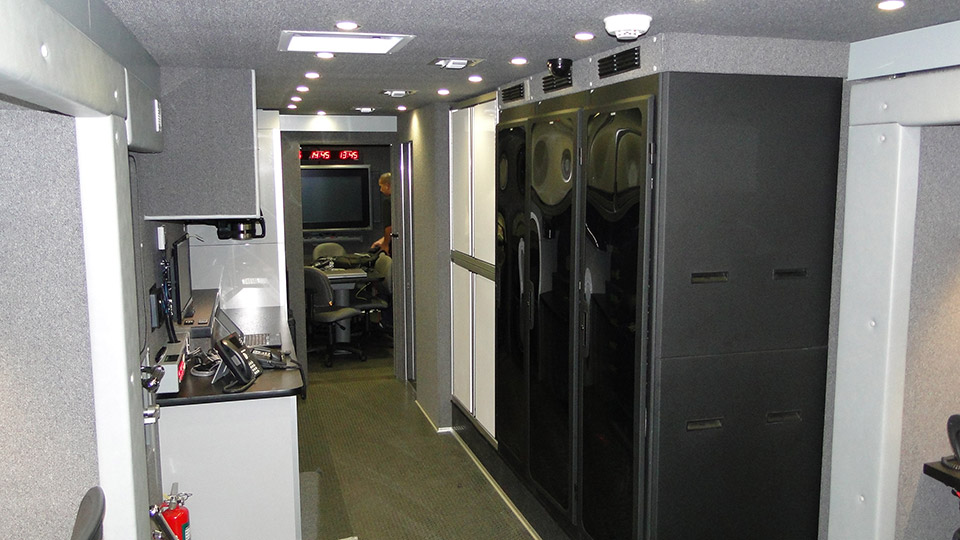

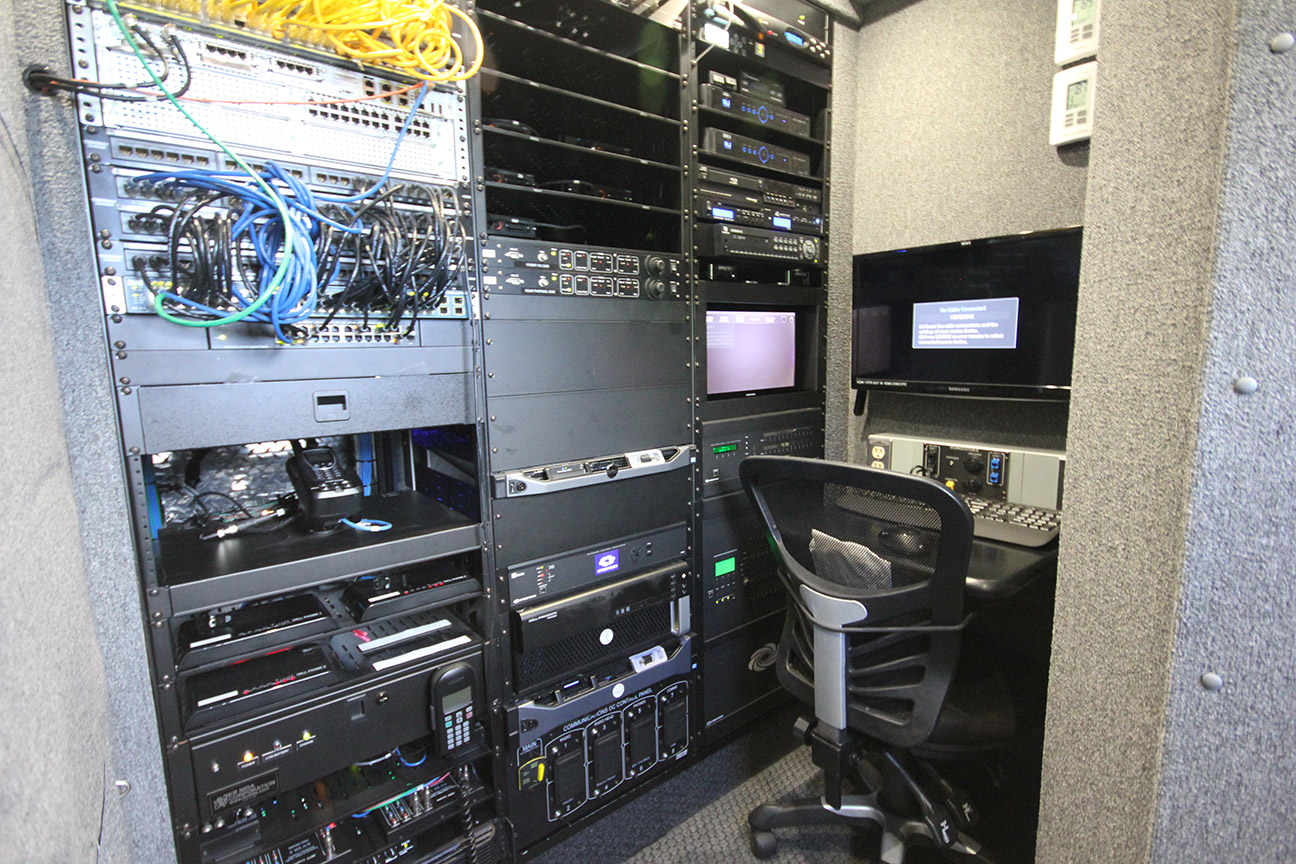

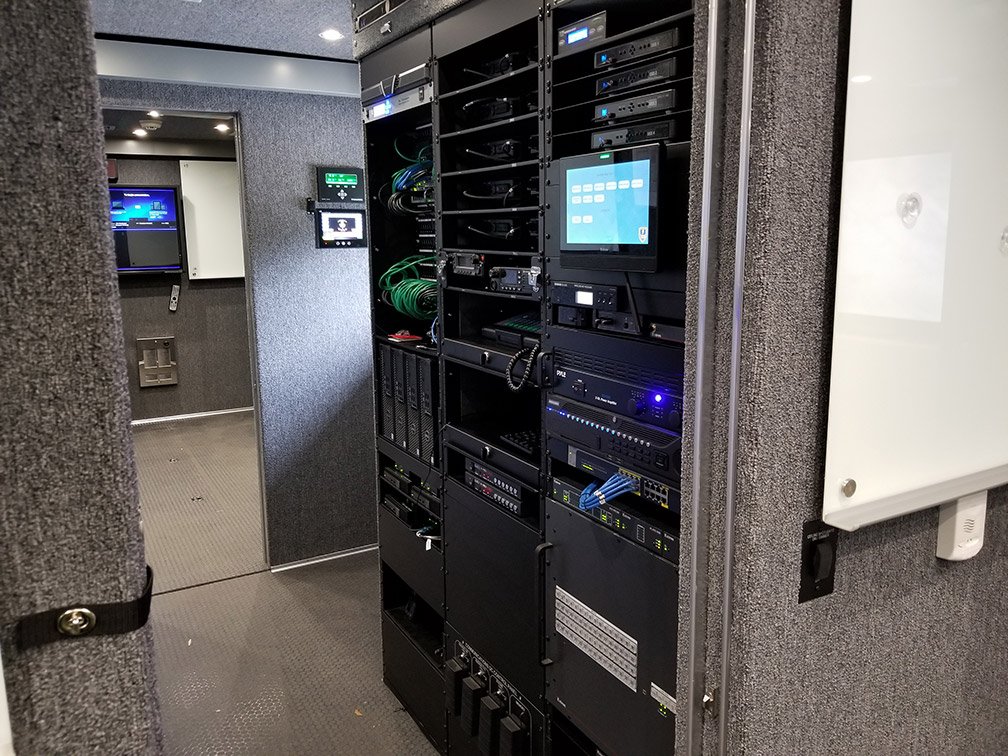

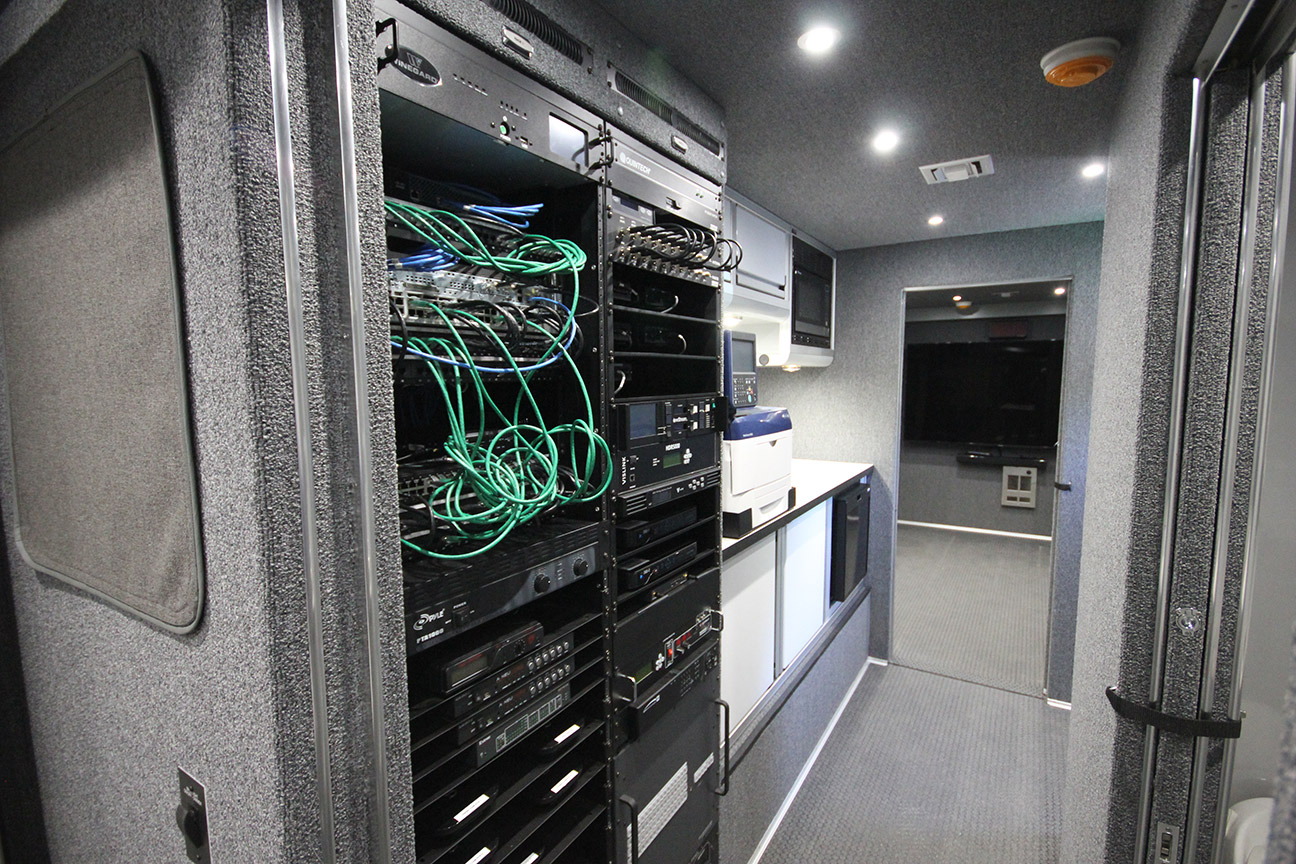

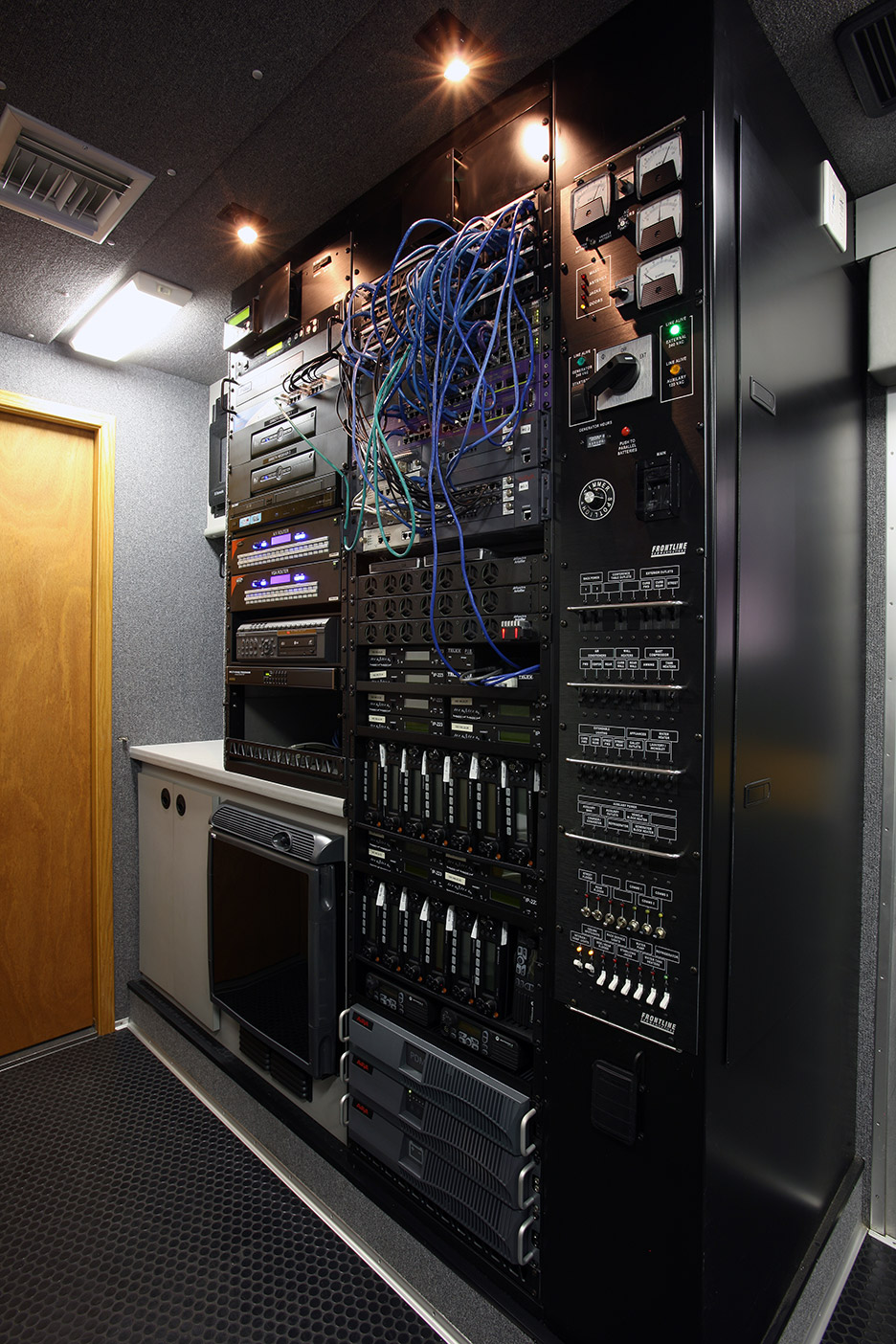

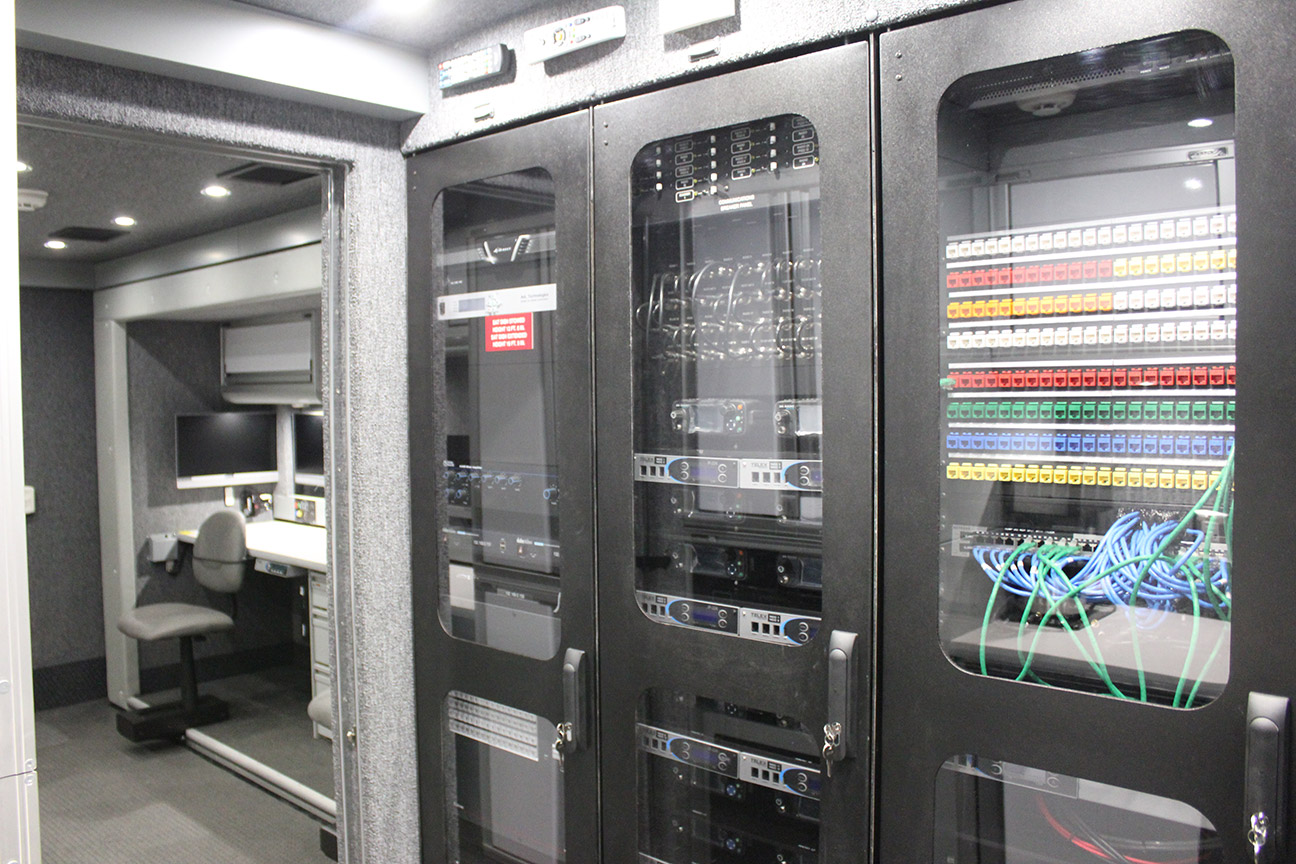

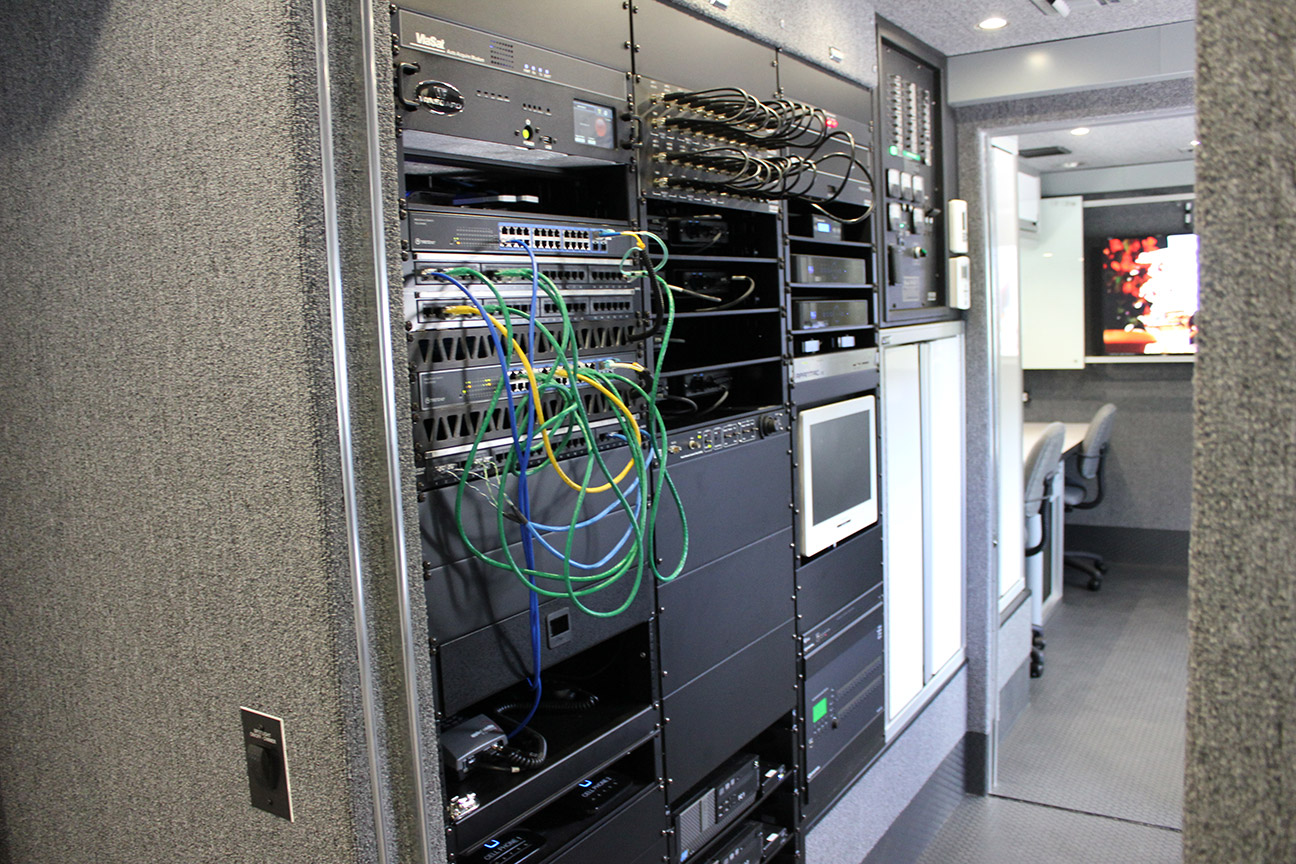

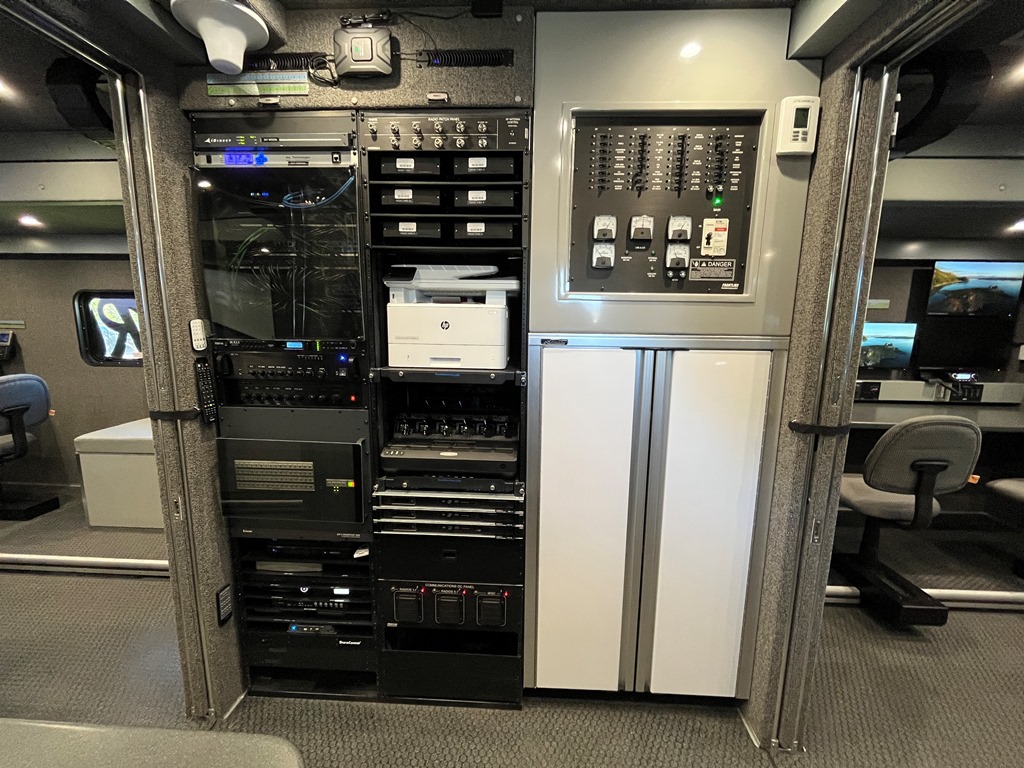

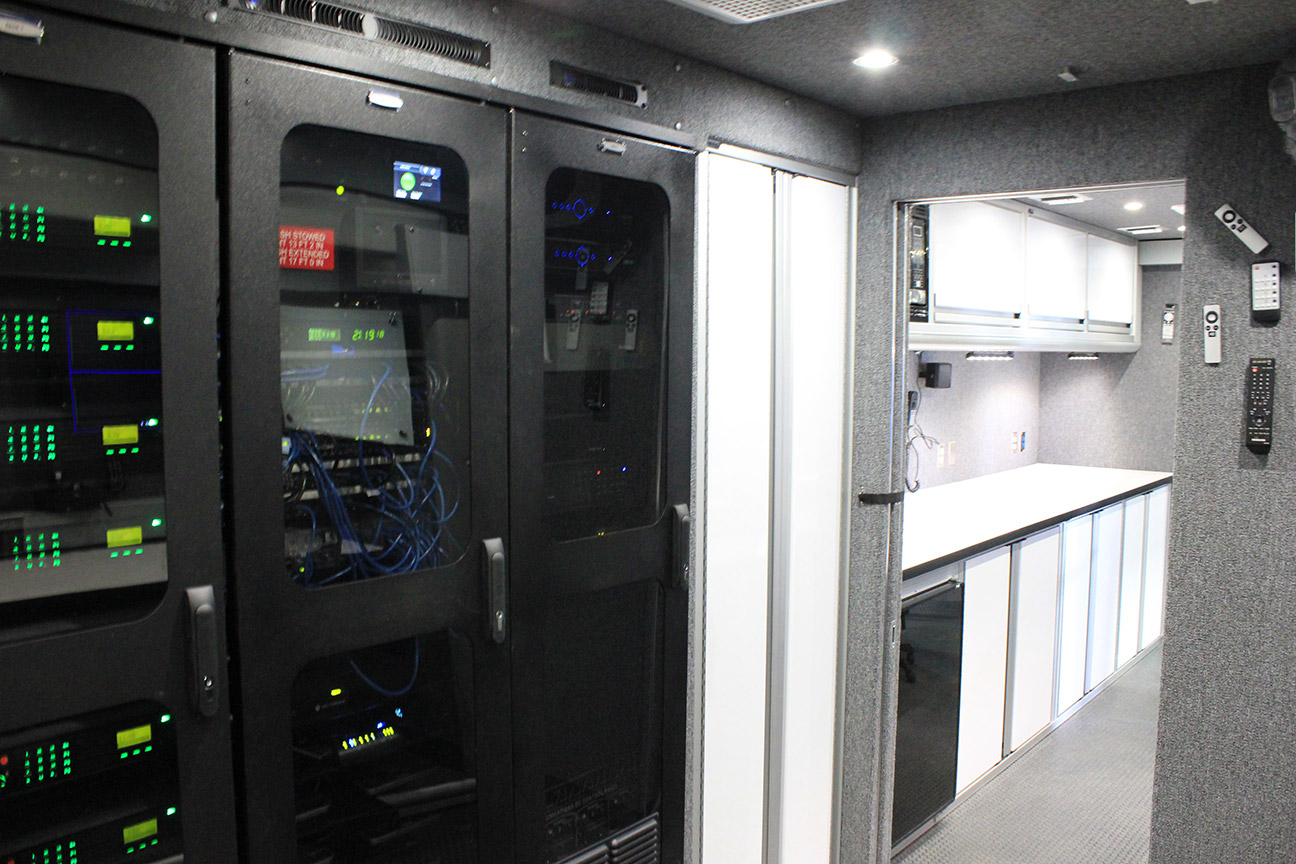

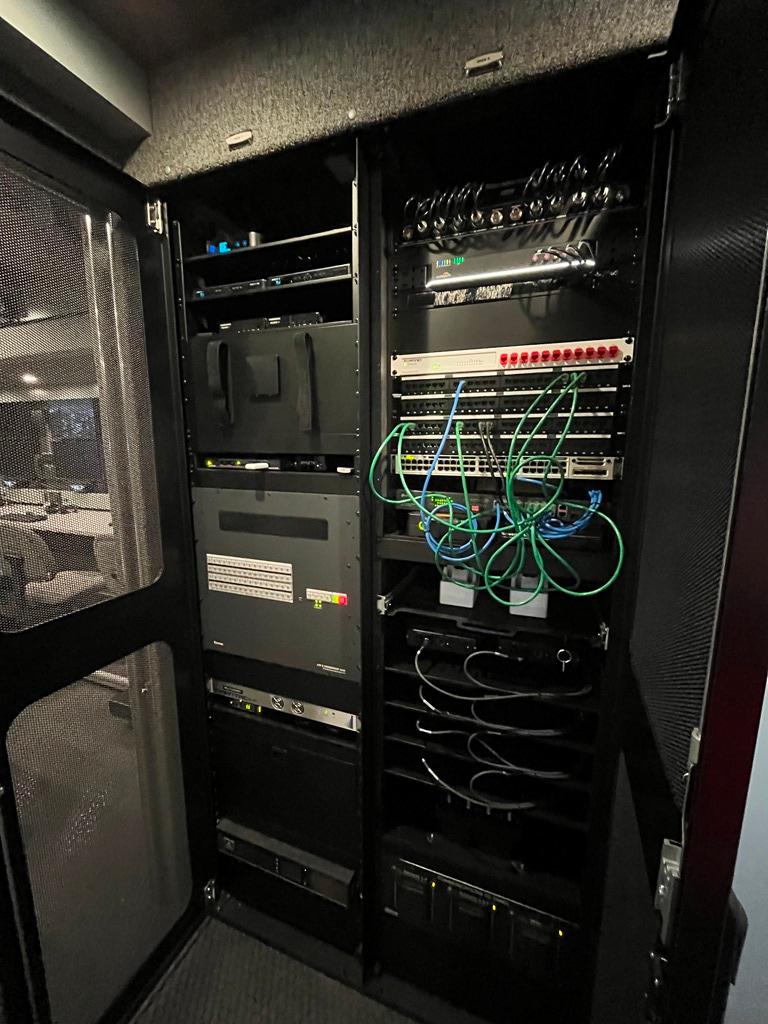

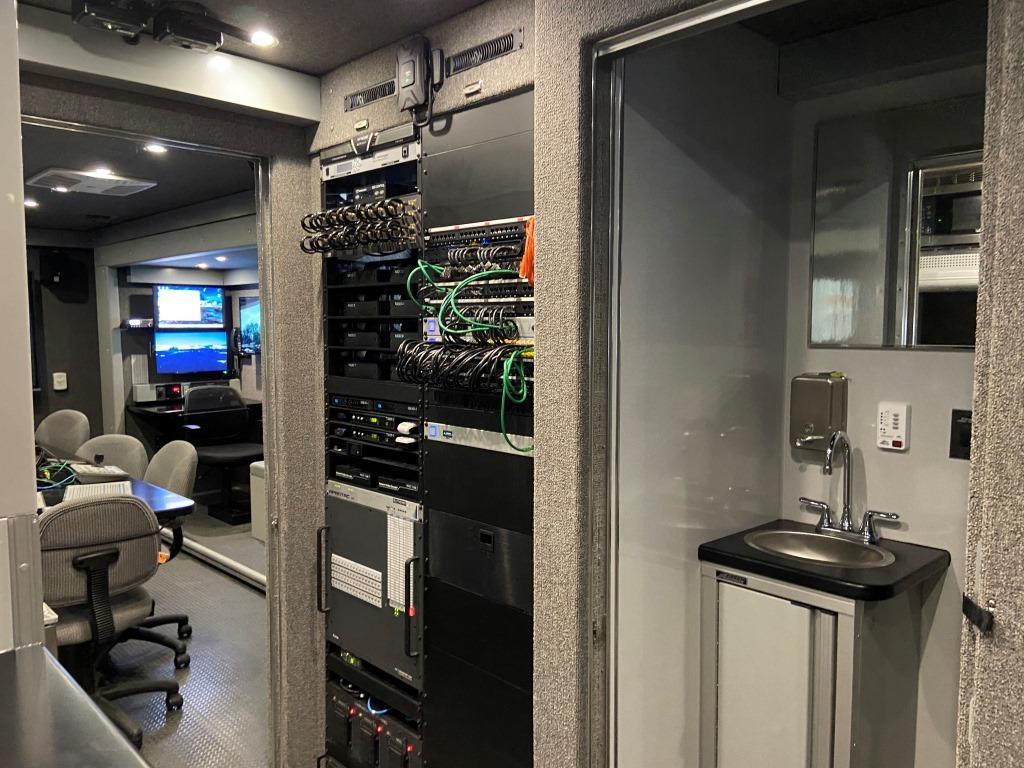

Up to 3 full-height equipment racks

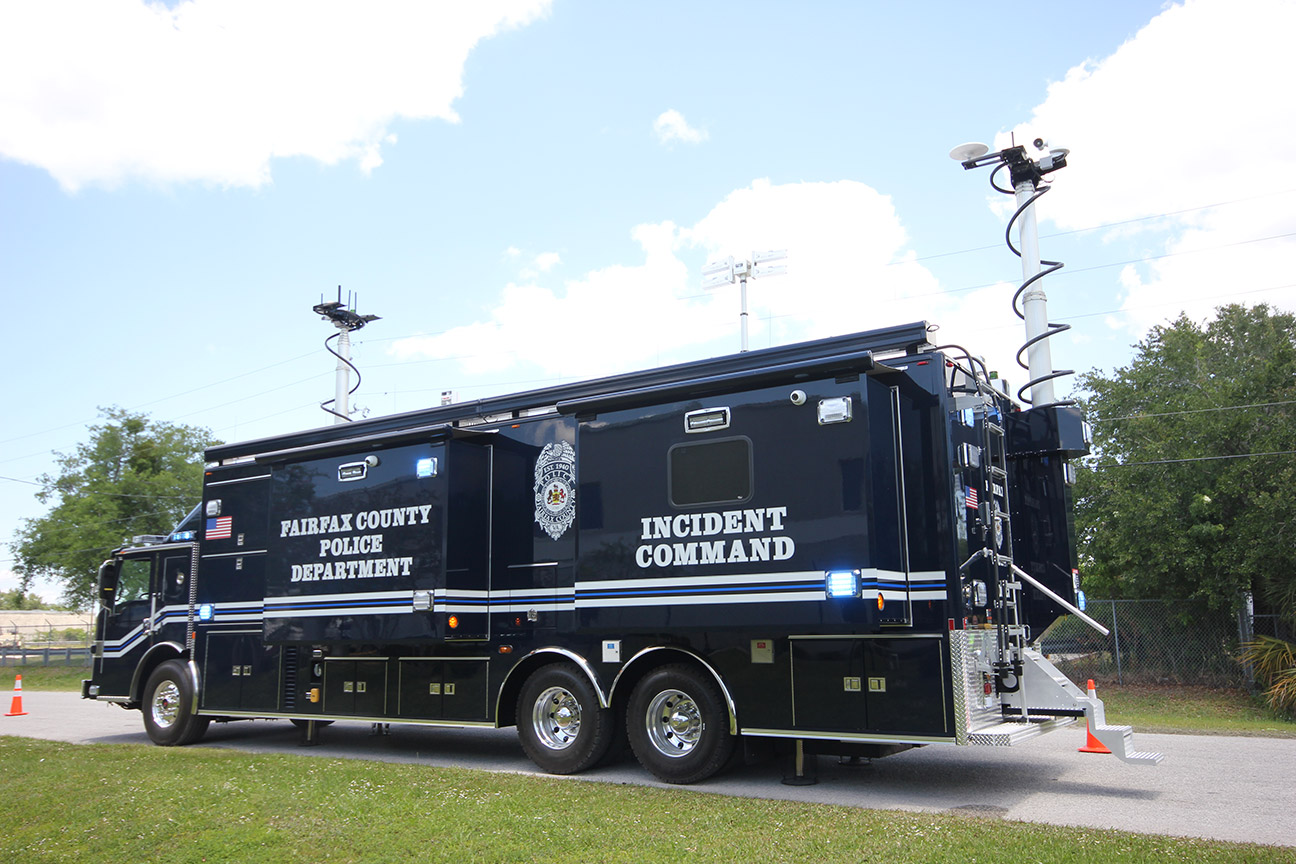

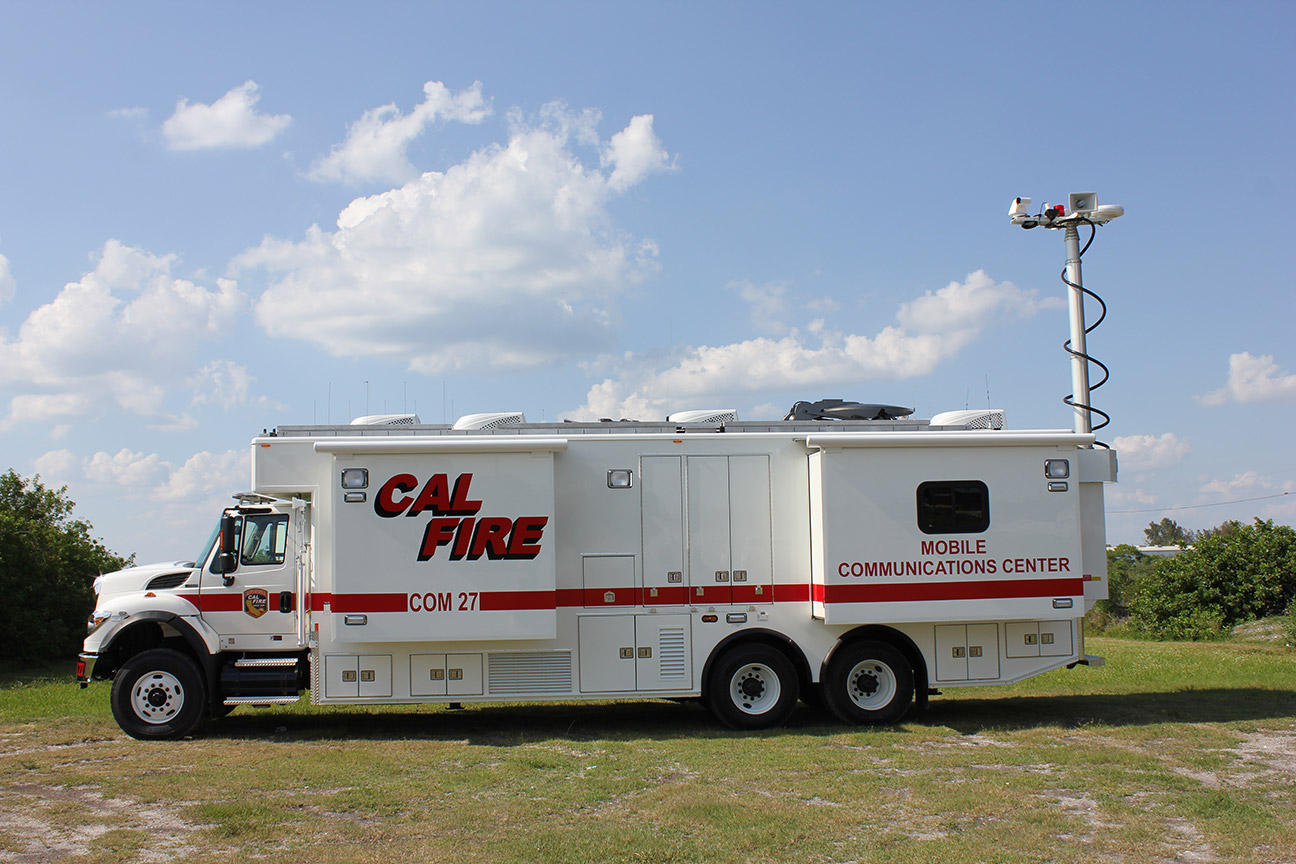

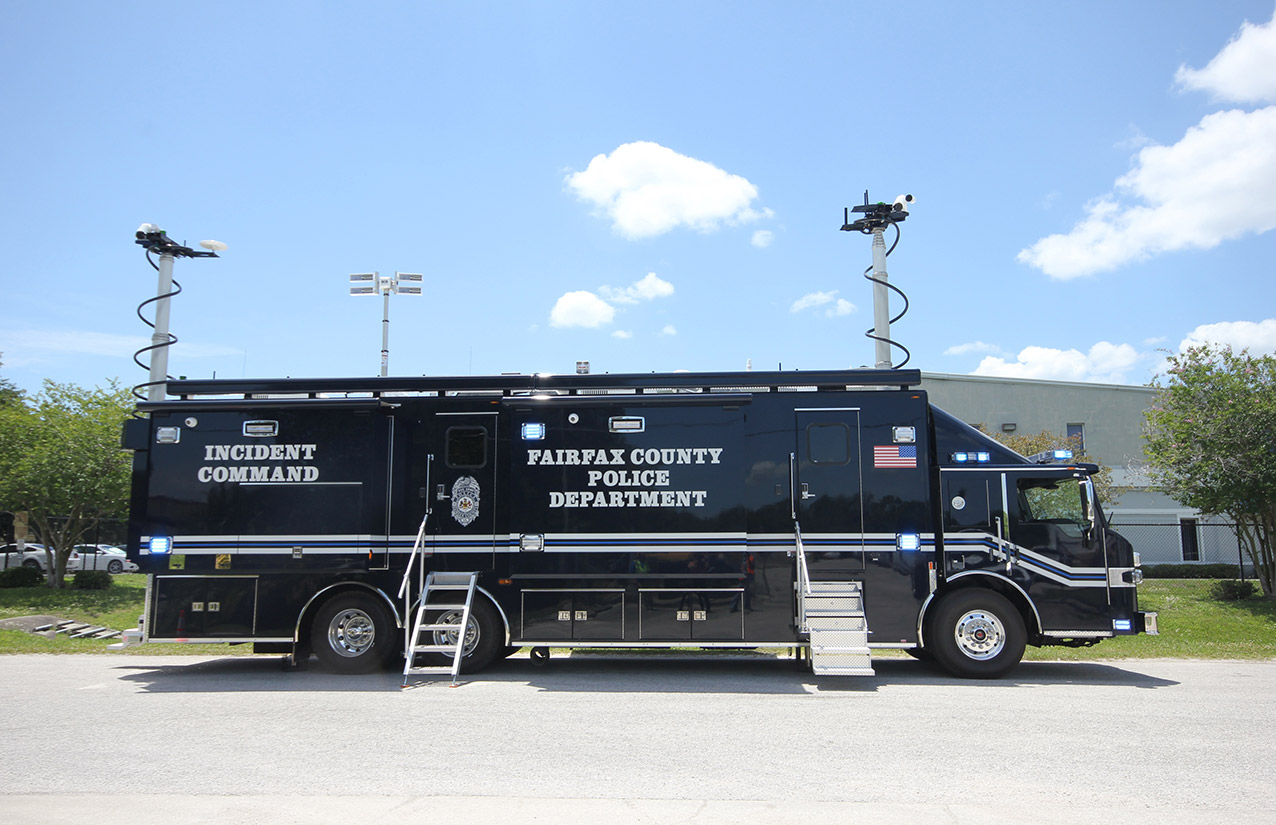

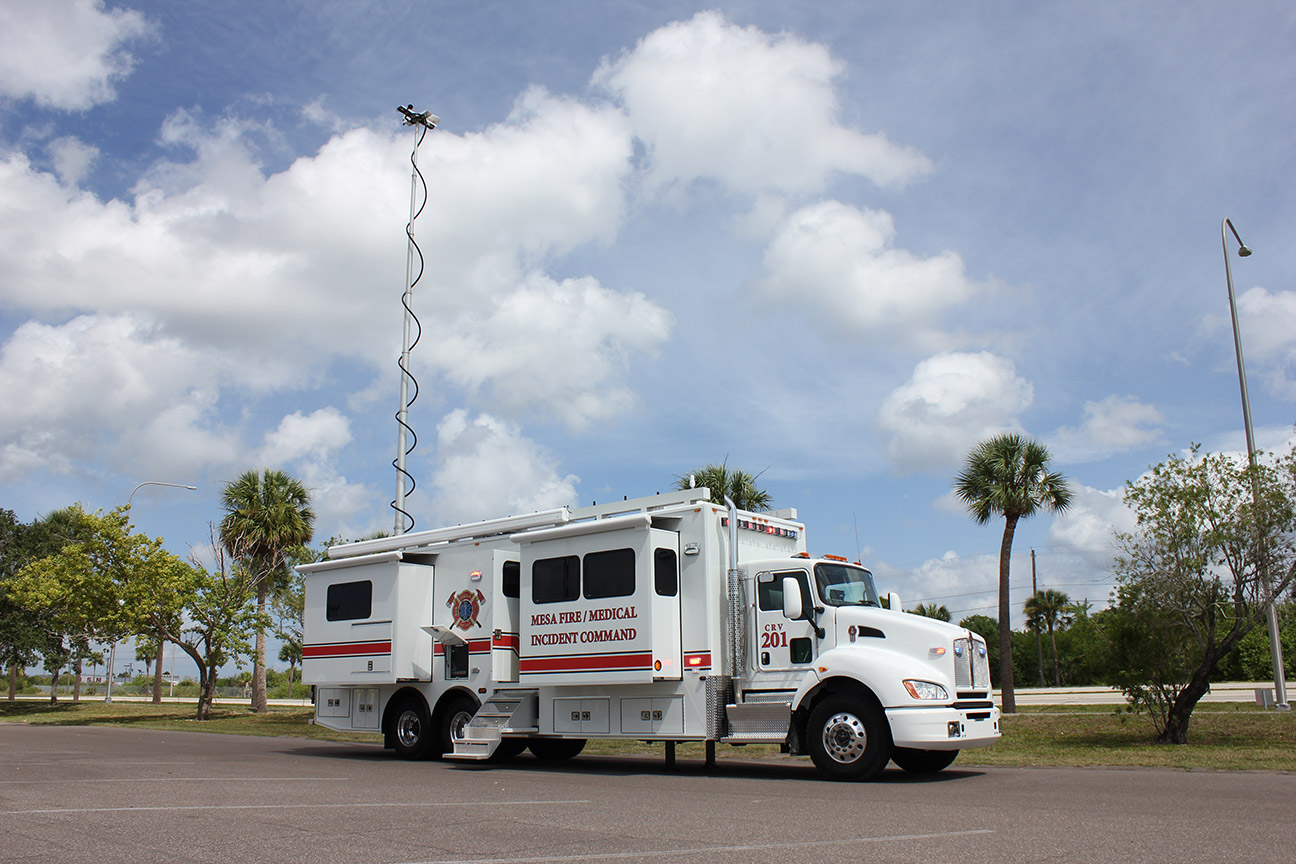

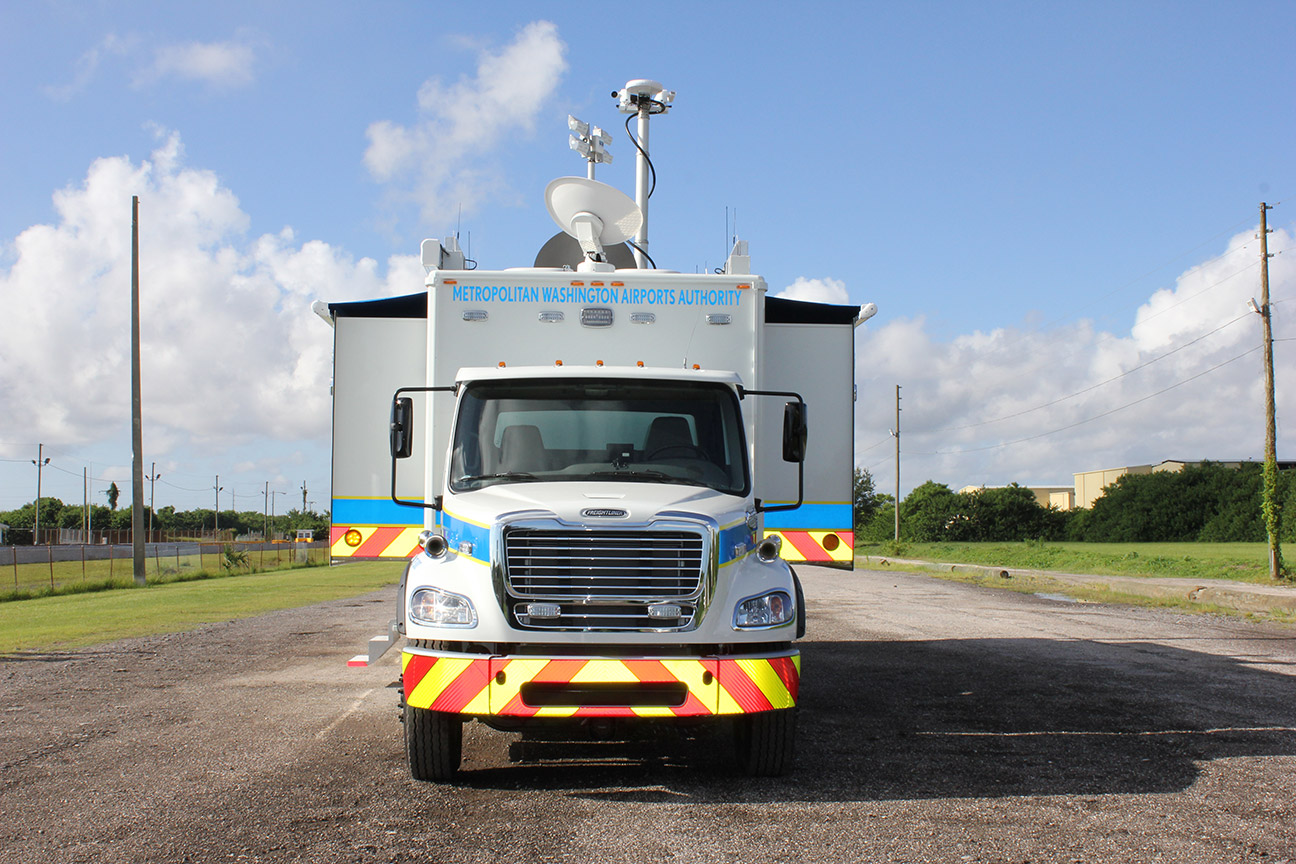

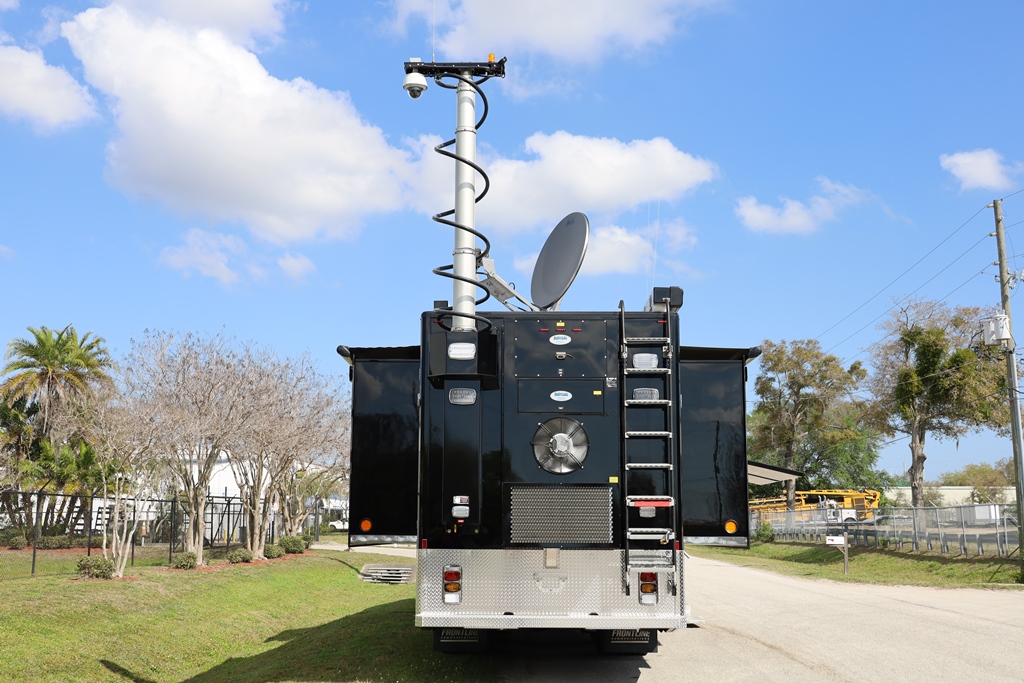

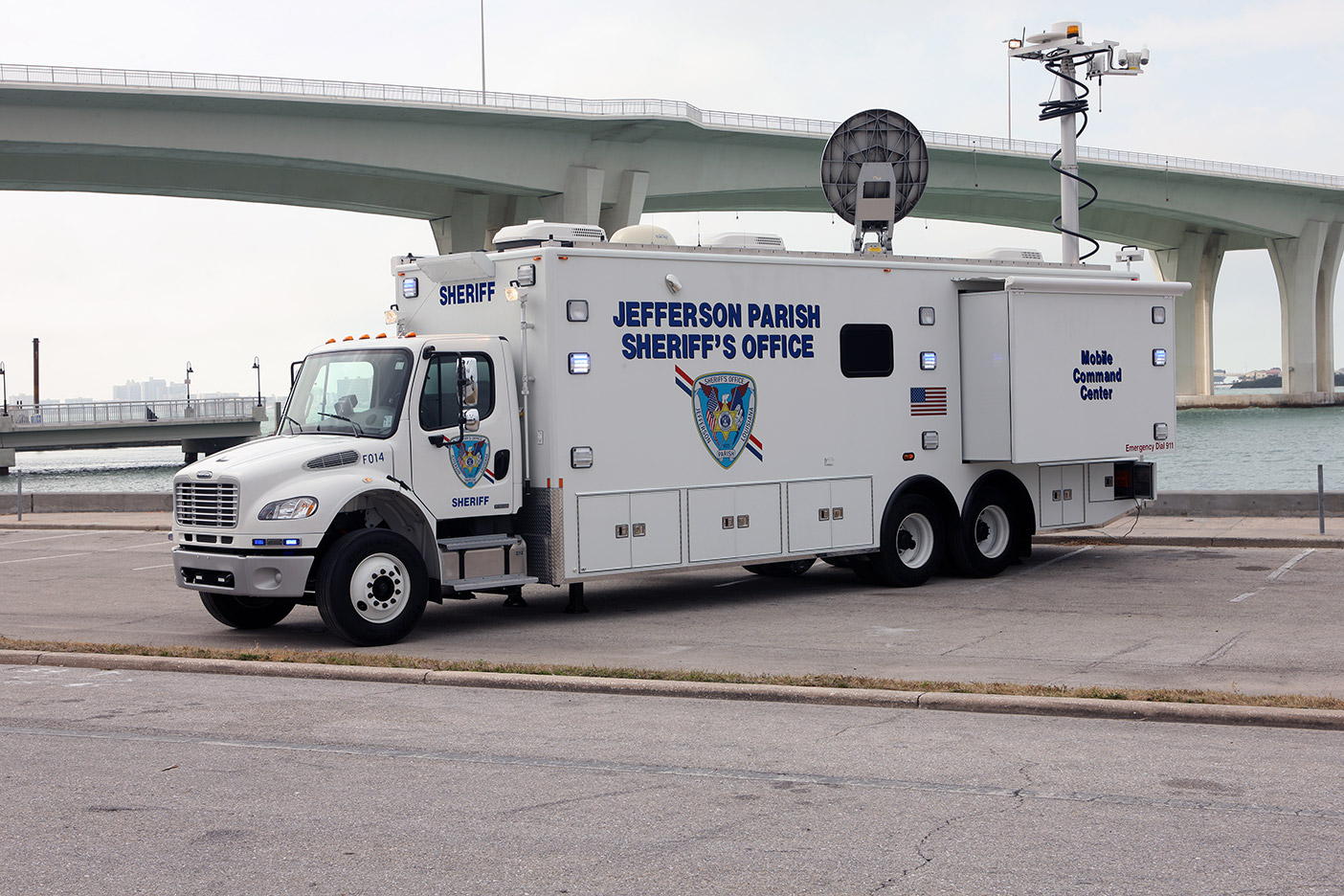

Camera mast
HD and thermal cameras

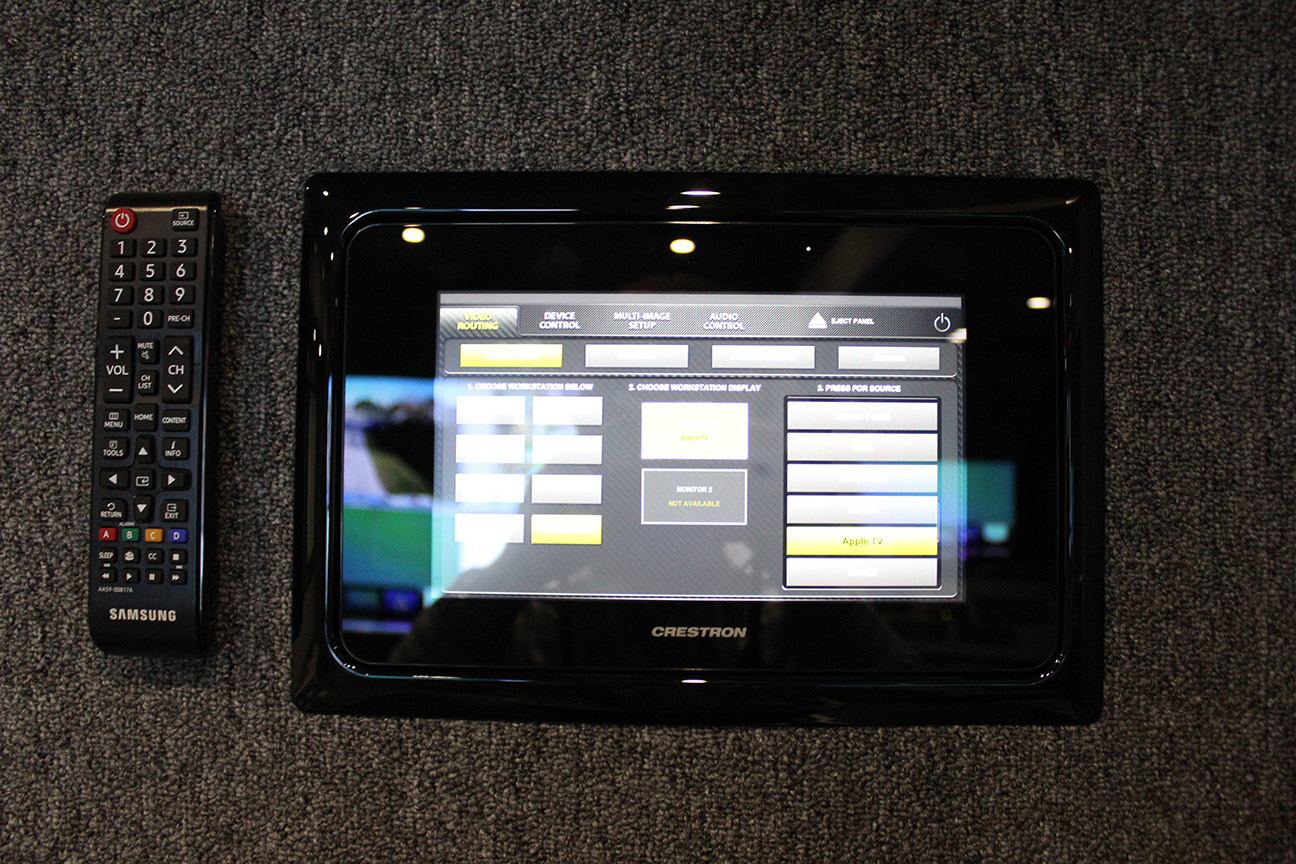

Video routing system

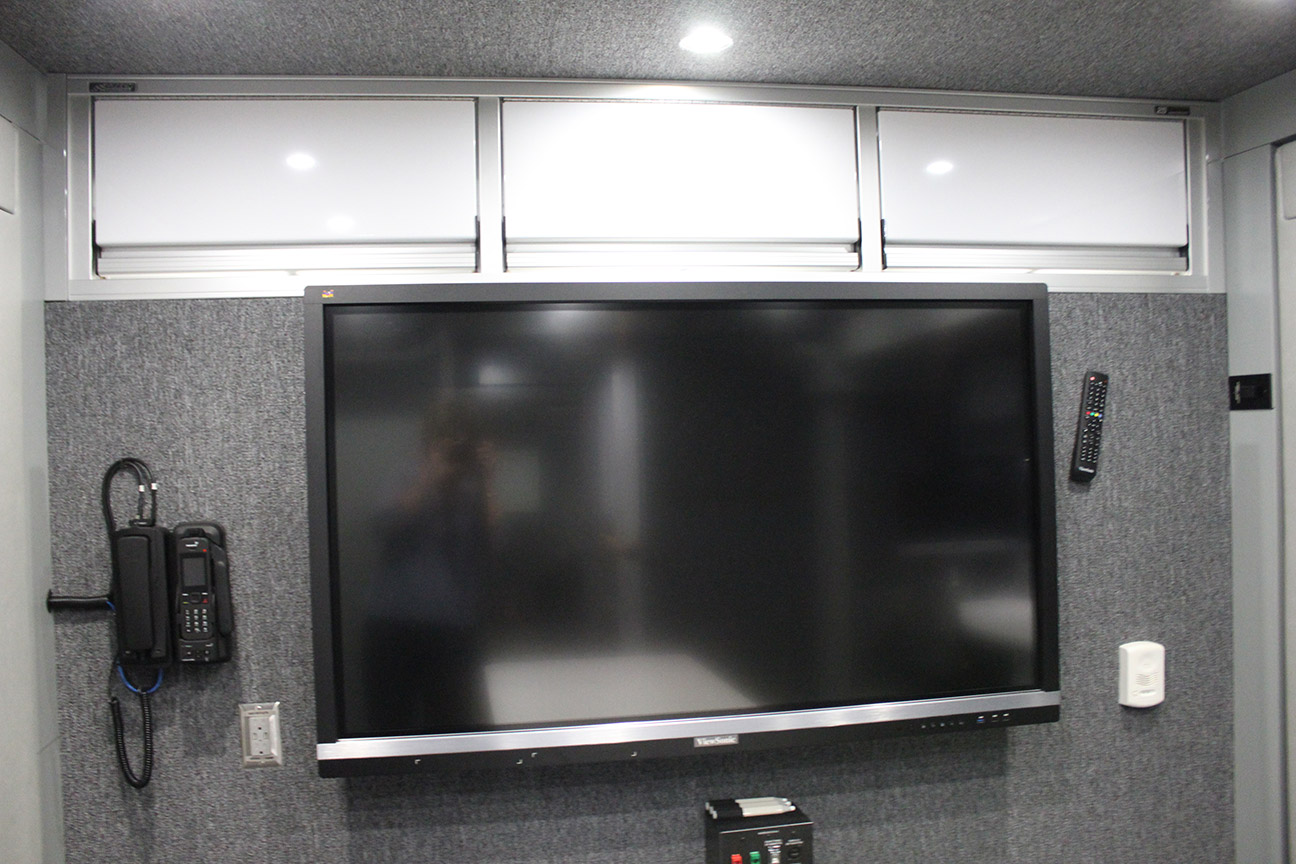

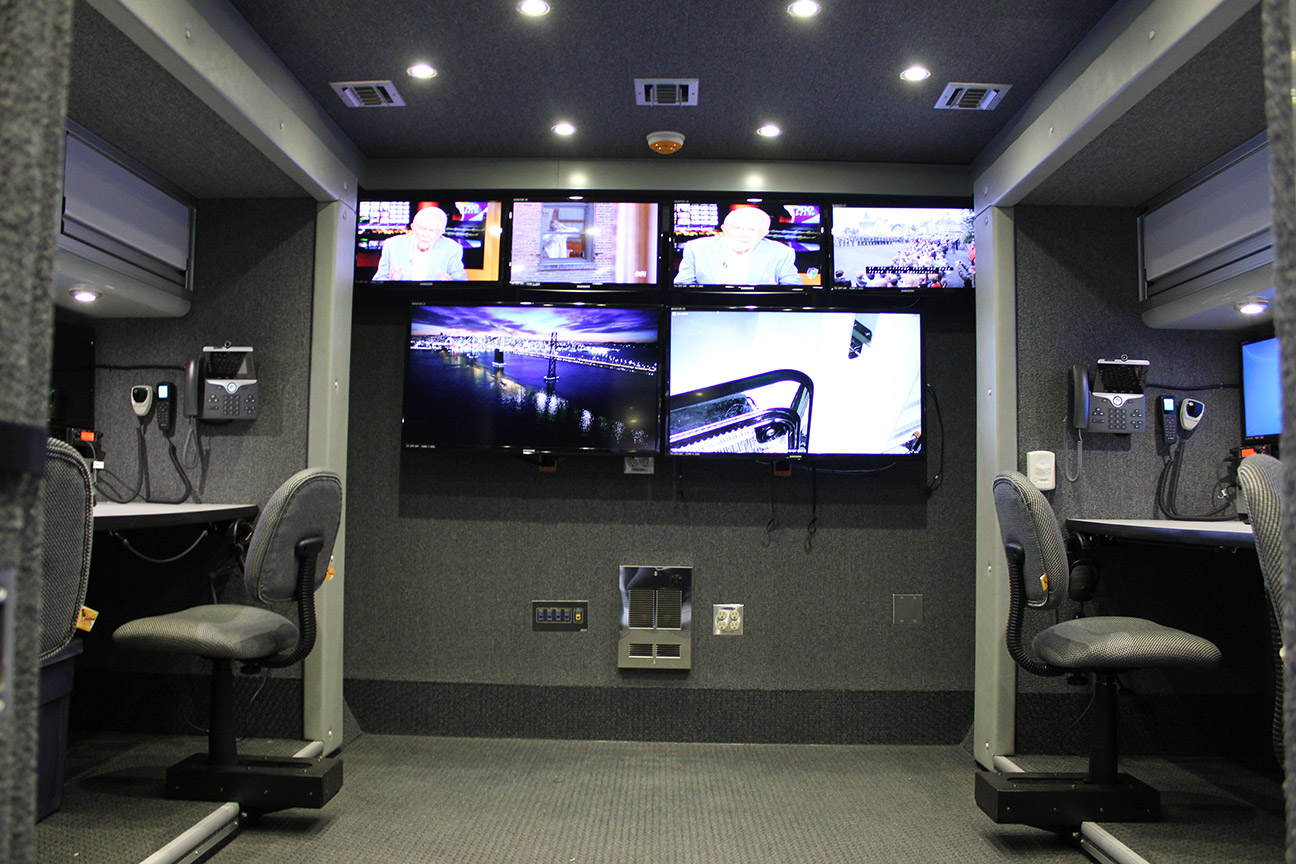

LCD/LED video displays
Interoperability systems

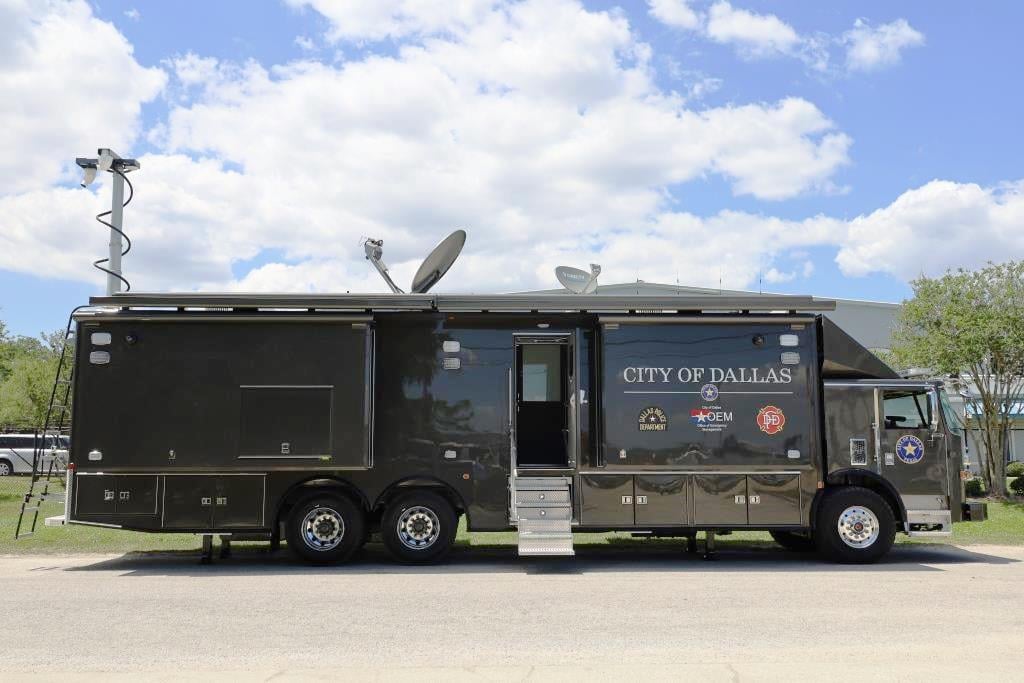

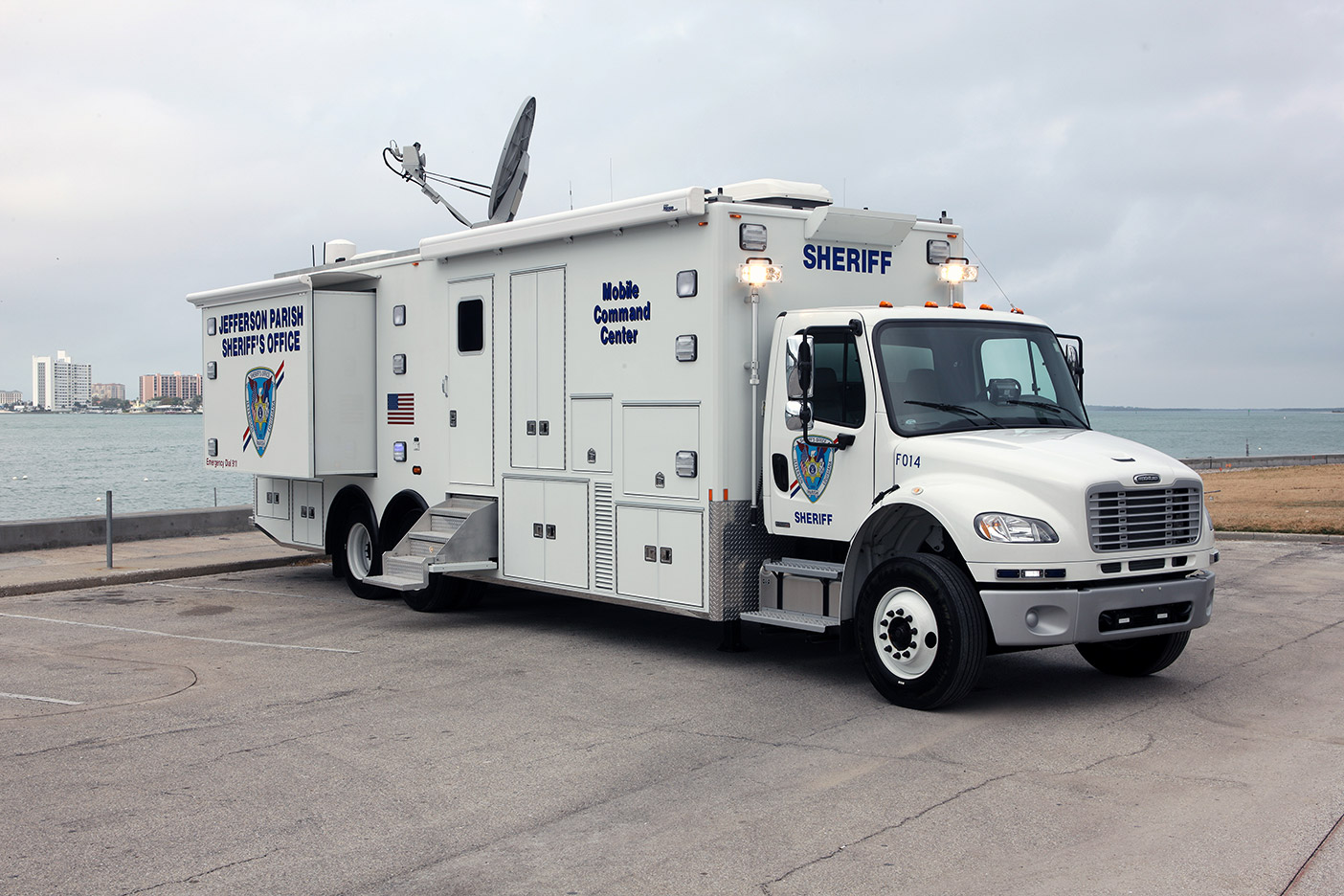

VSAT satellite systems
Satellite TV
Microwave downlink system

Popular Options

Vehicle

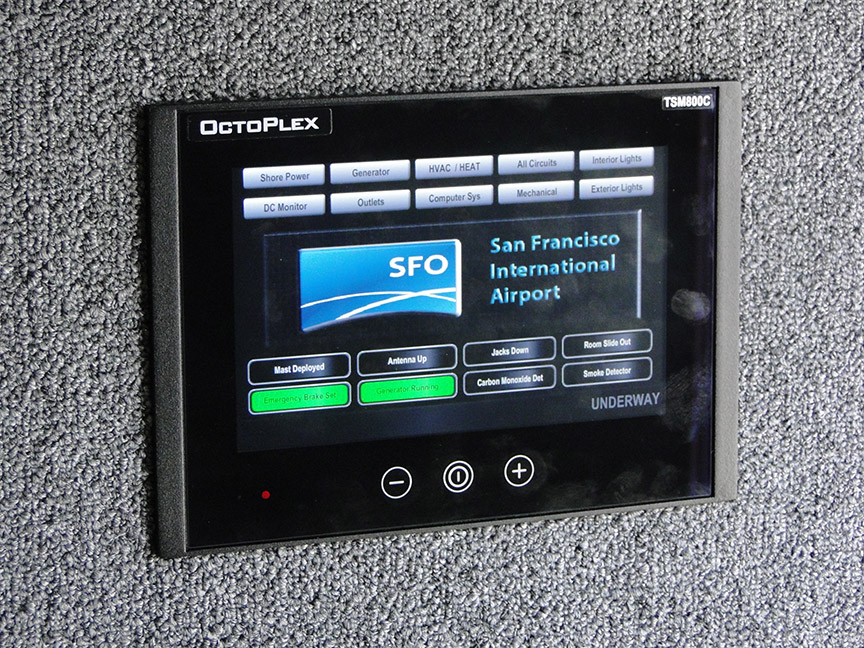

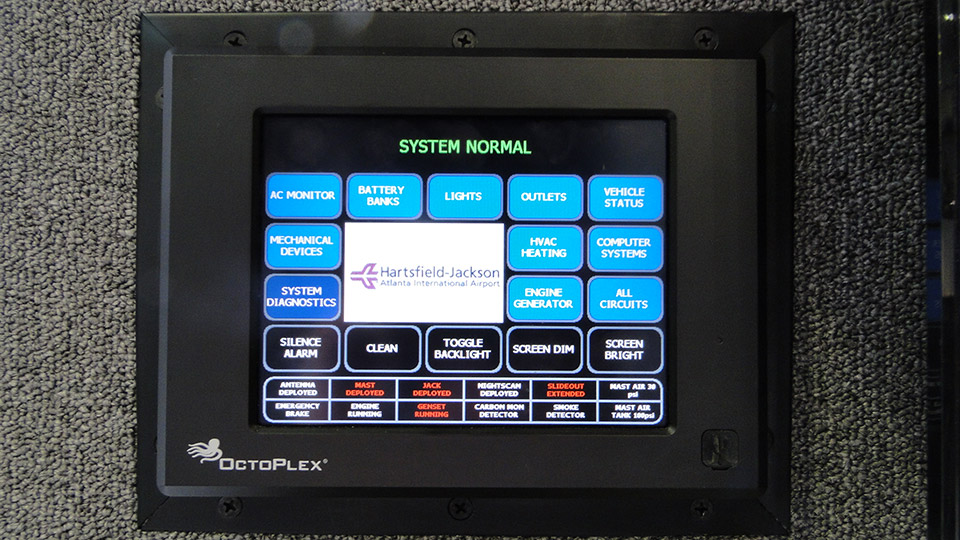

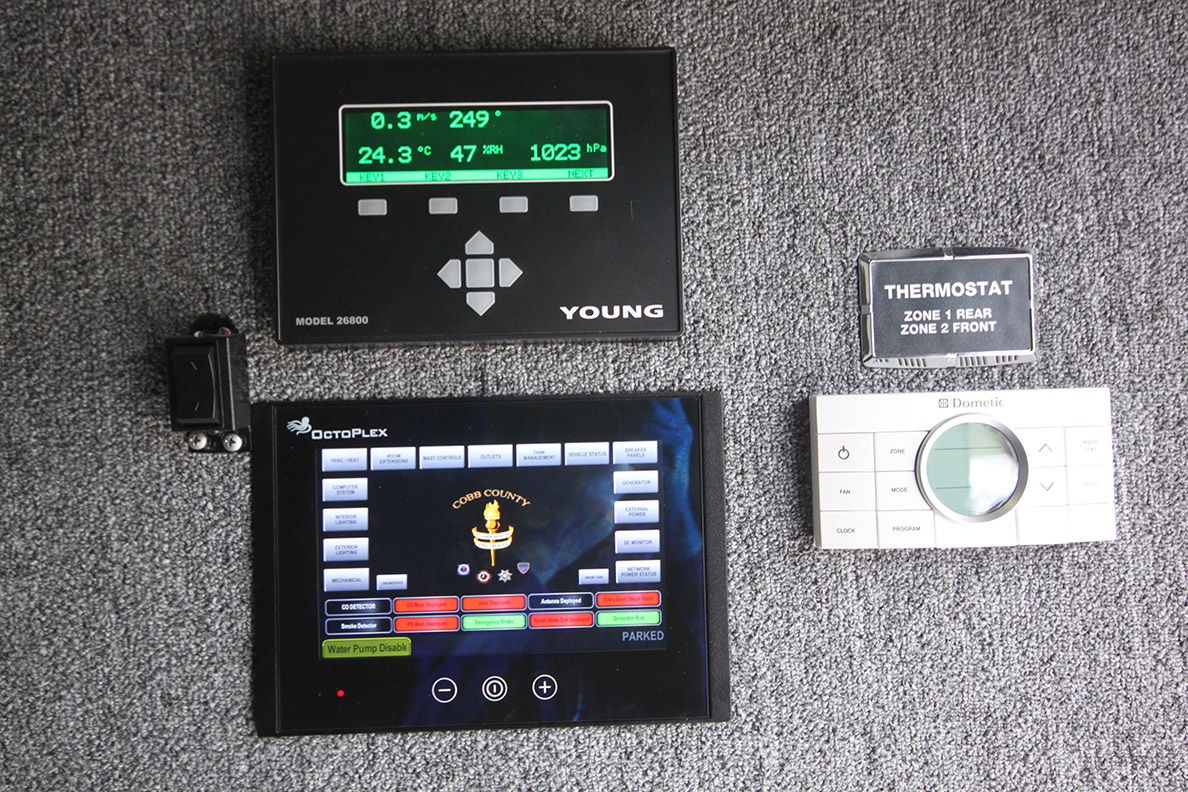

Multiplex control system

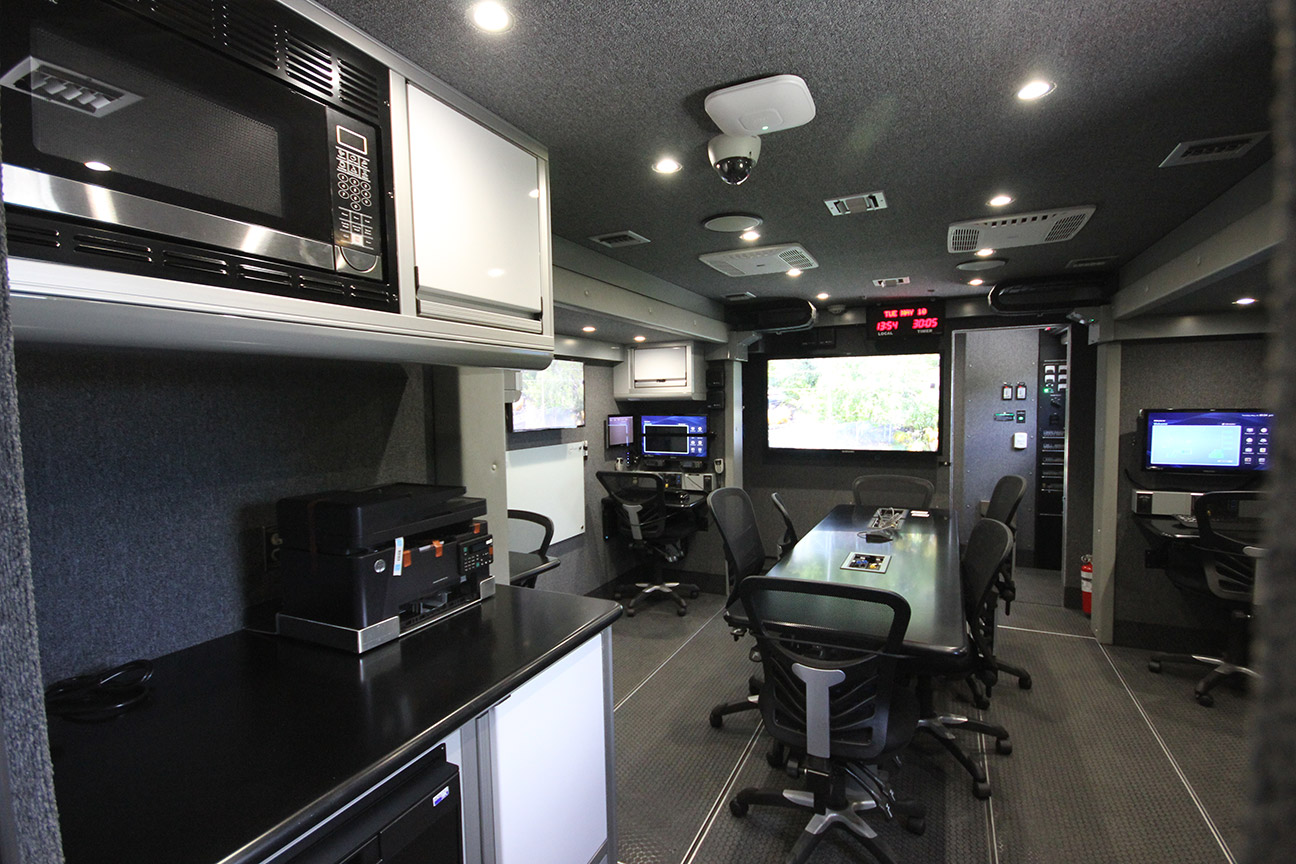

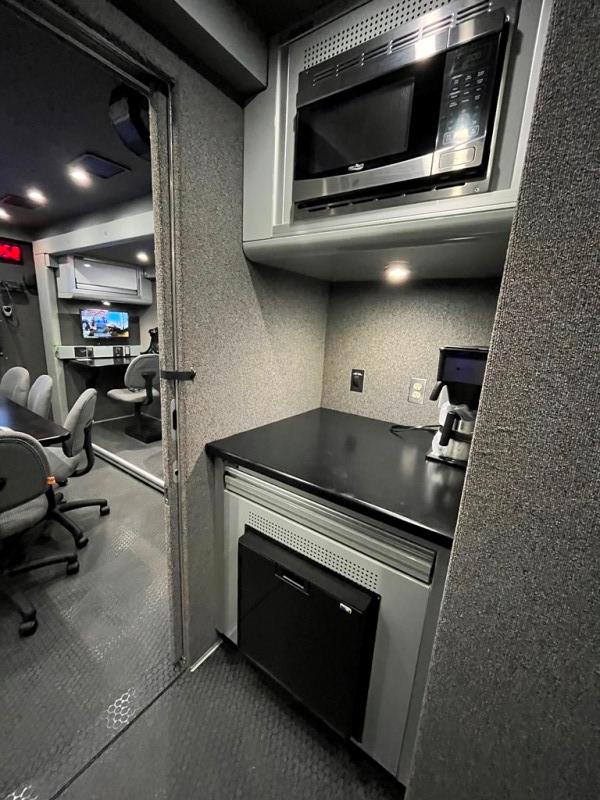

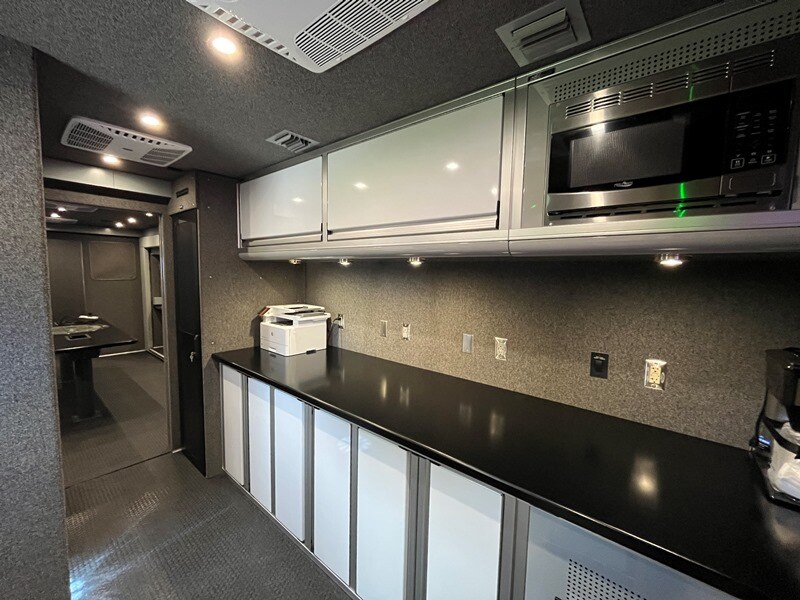

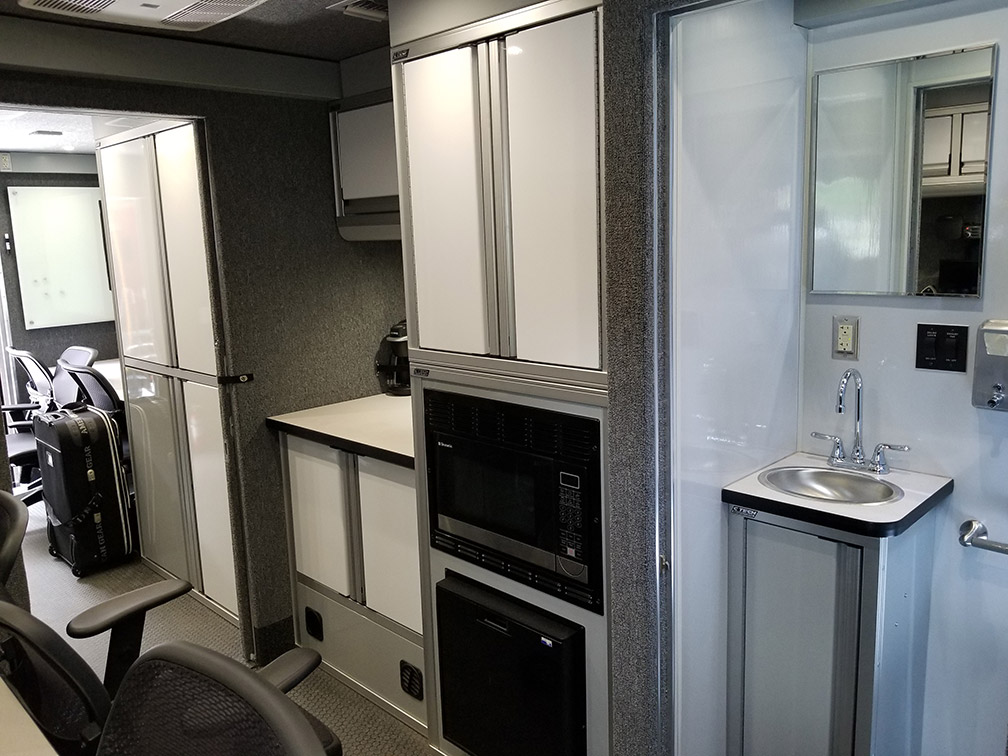

Galley w/microwave, coffeemaker, and refrigerator
Lavatory
Pedestal sliding swivel chairs

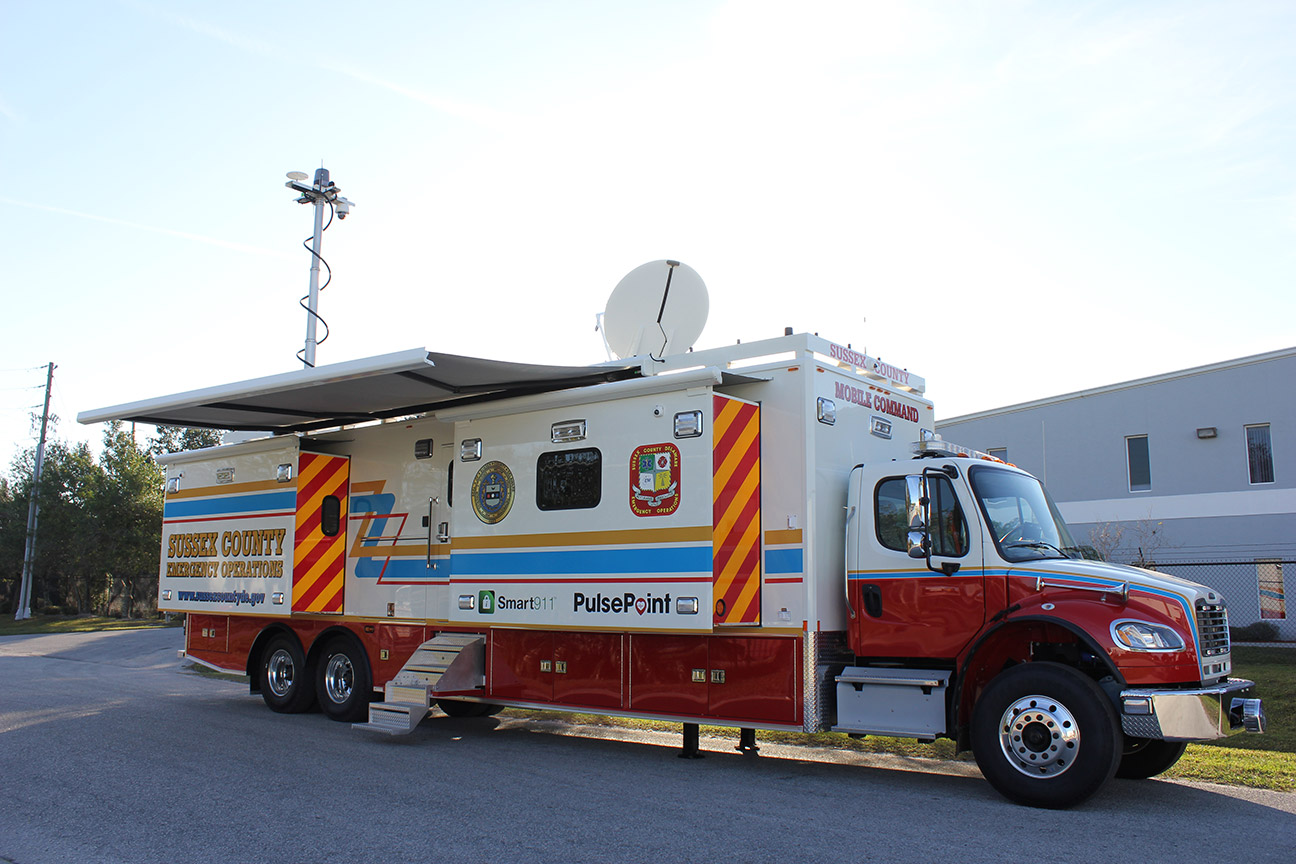

Electric awning
Custom paint and graphics

Systems

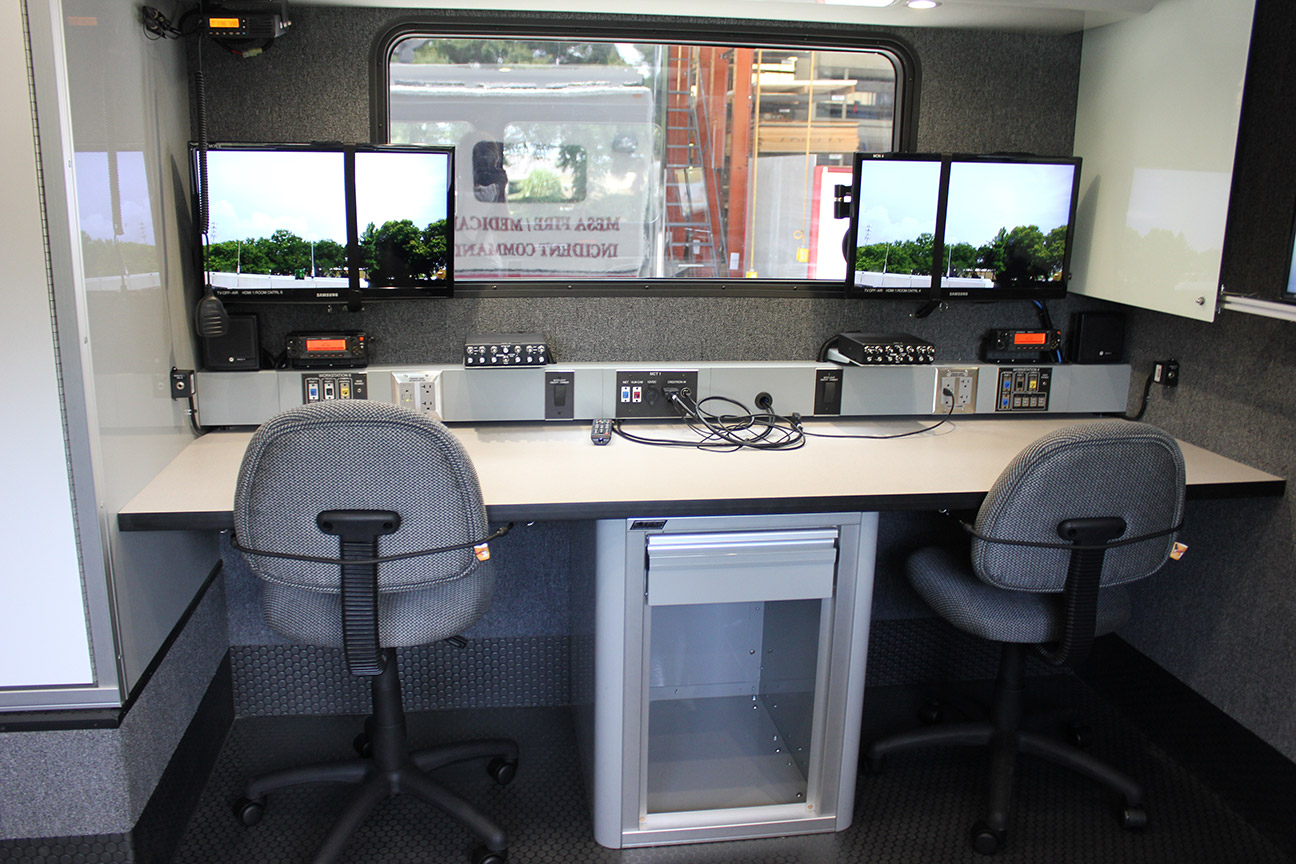

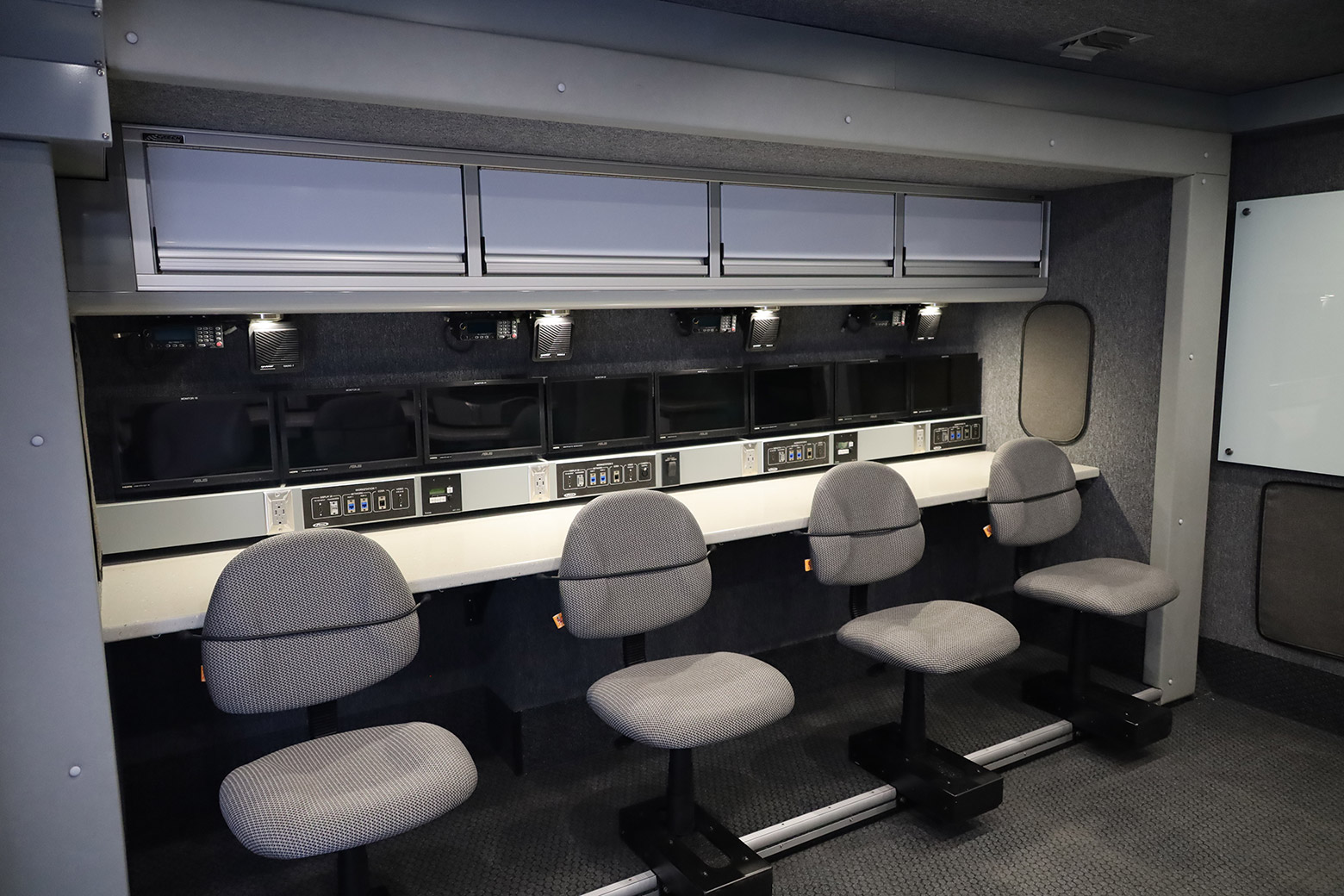

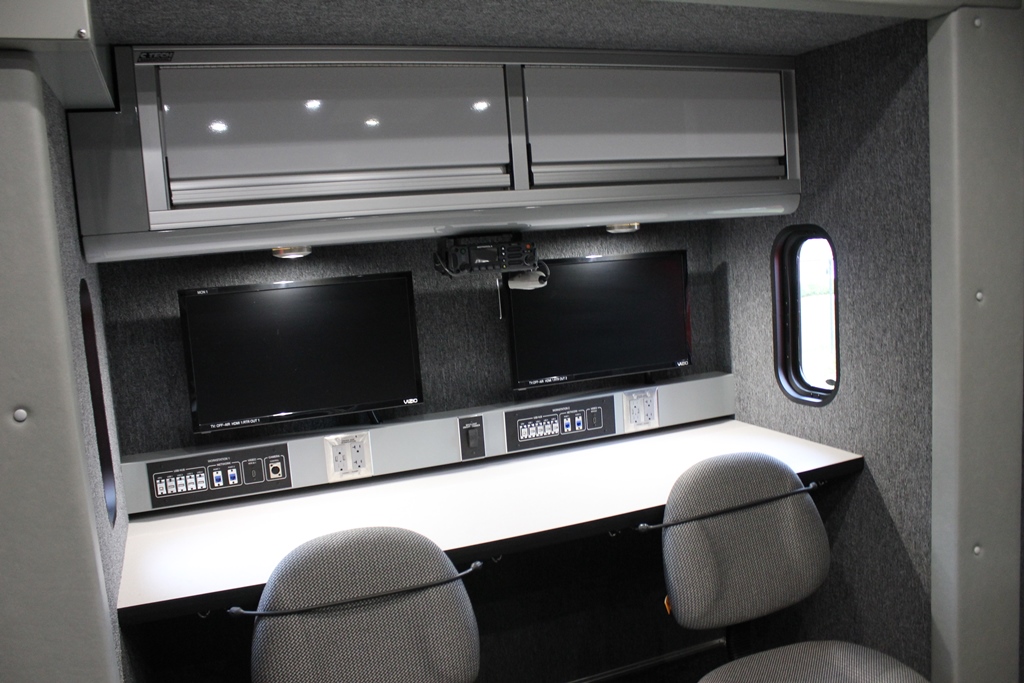

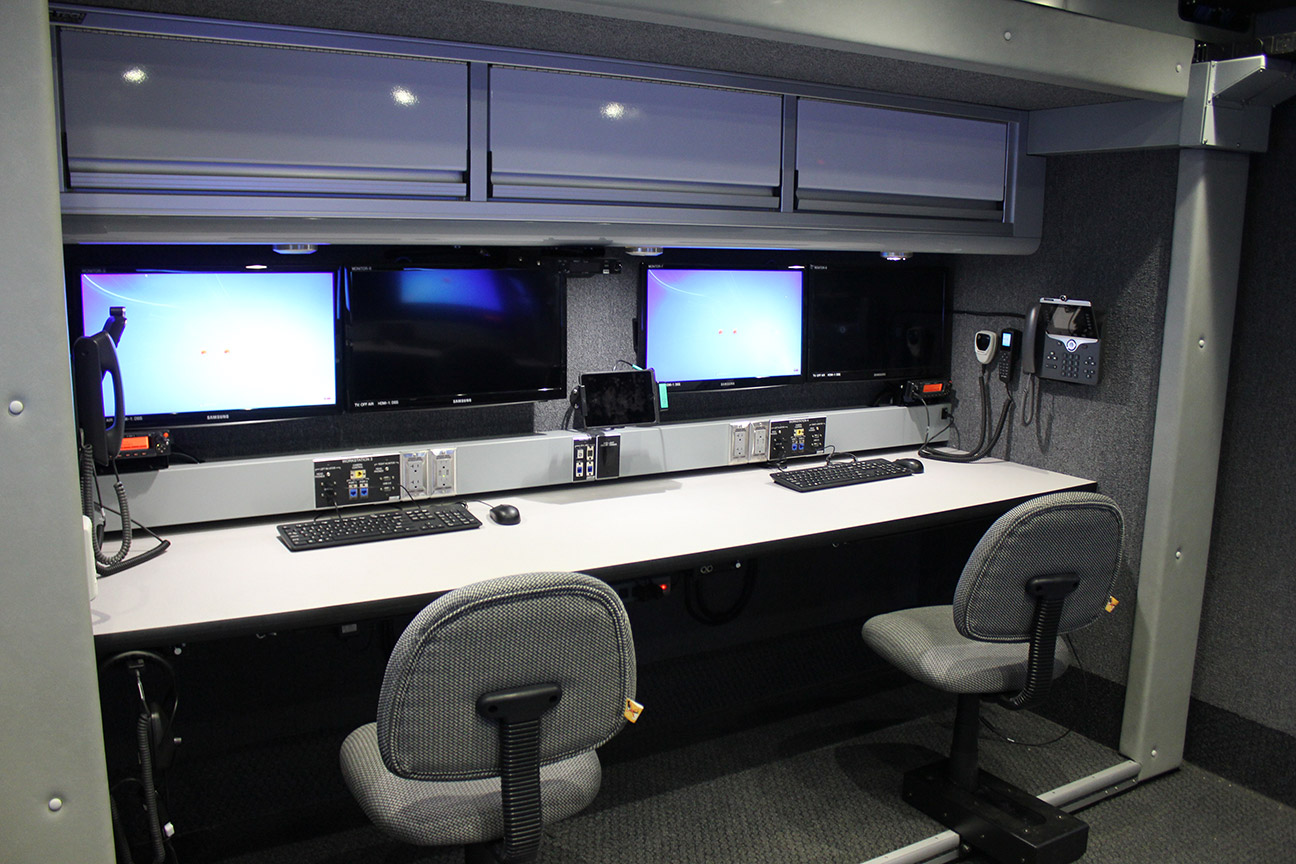

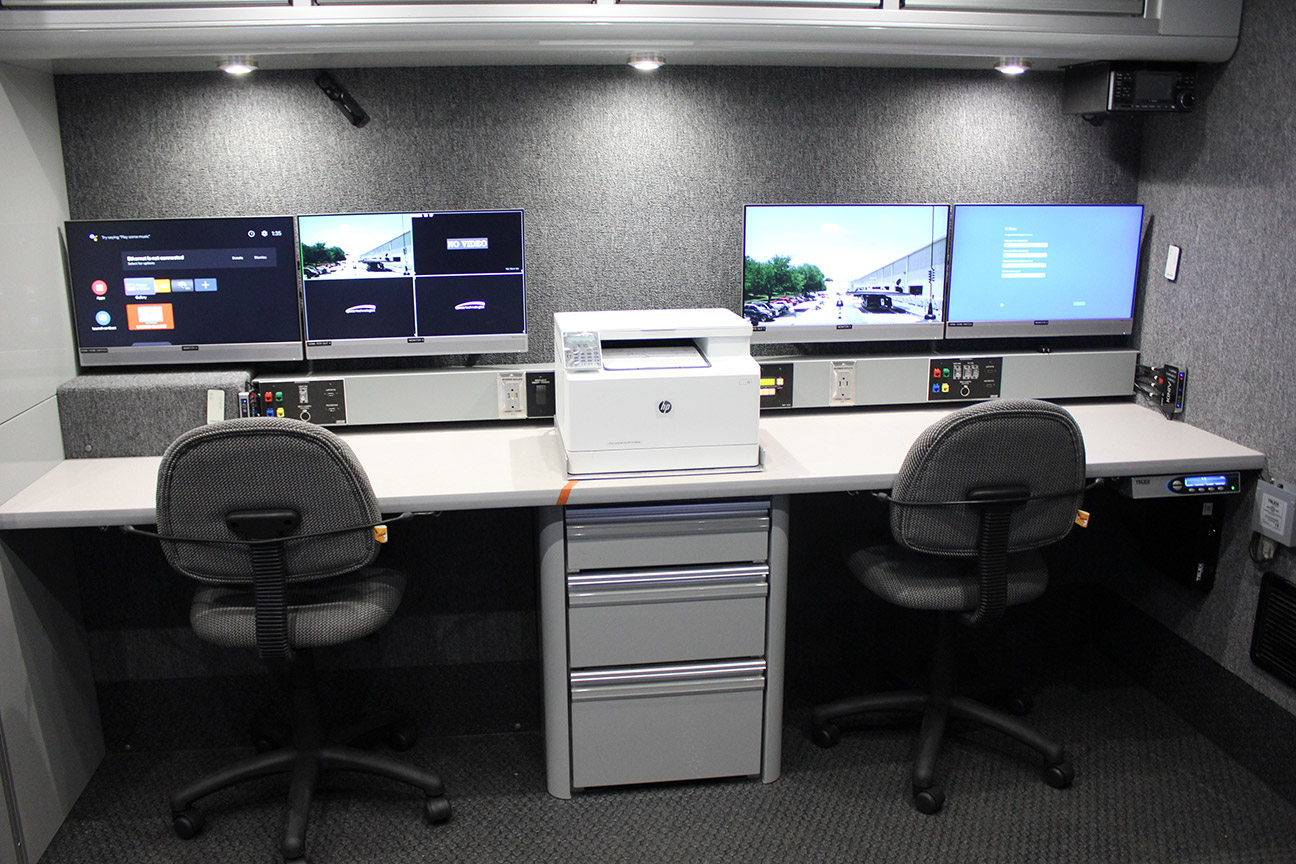

Angled consoles at workstations

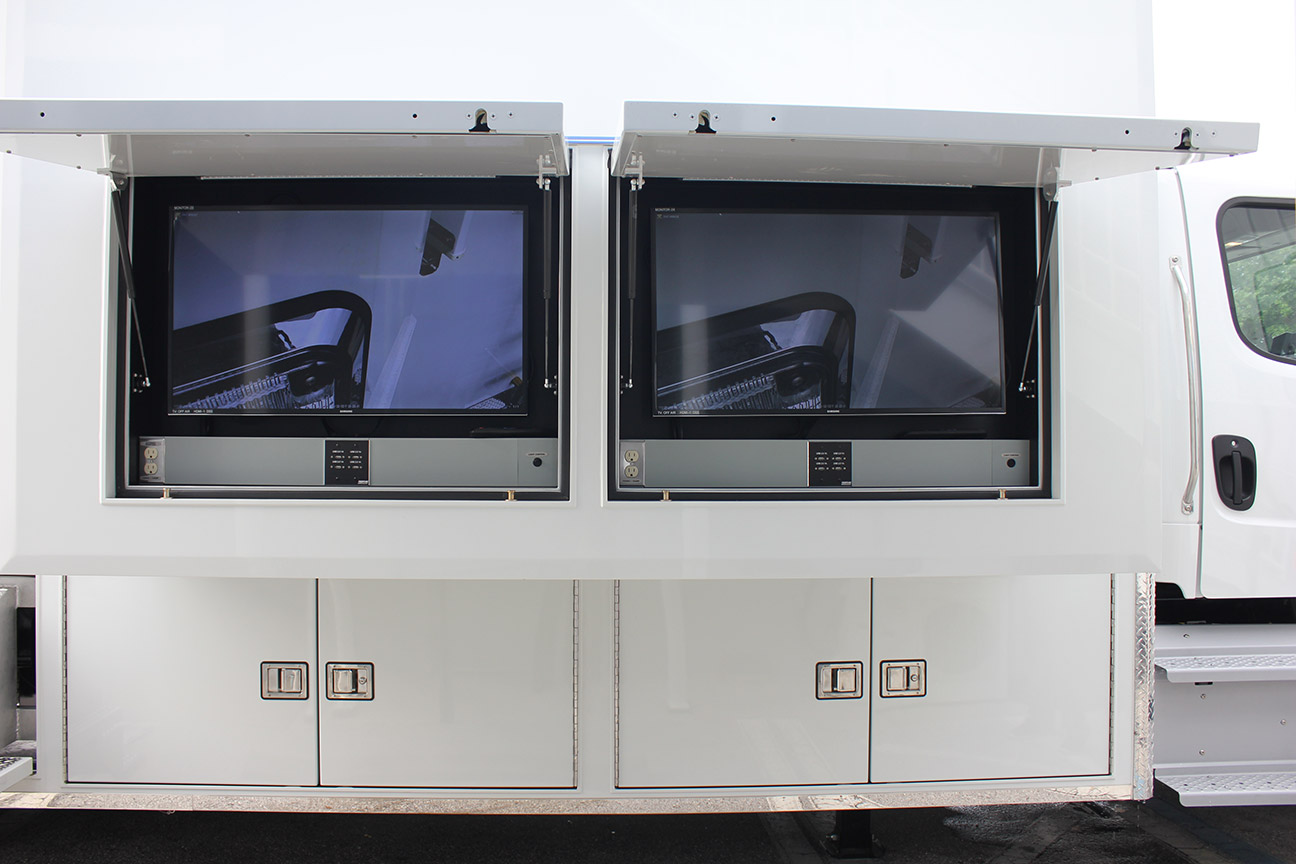

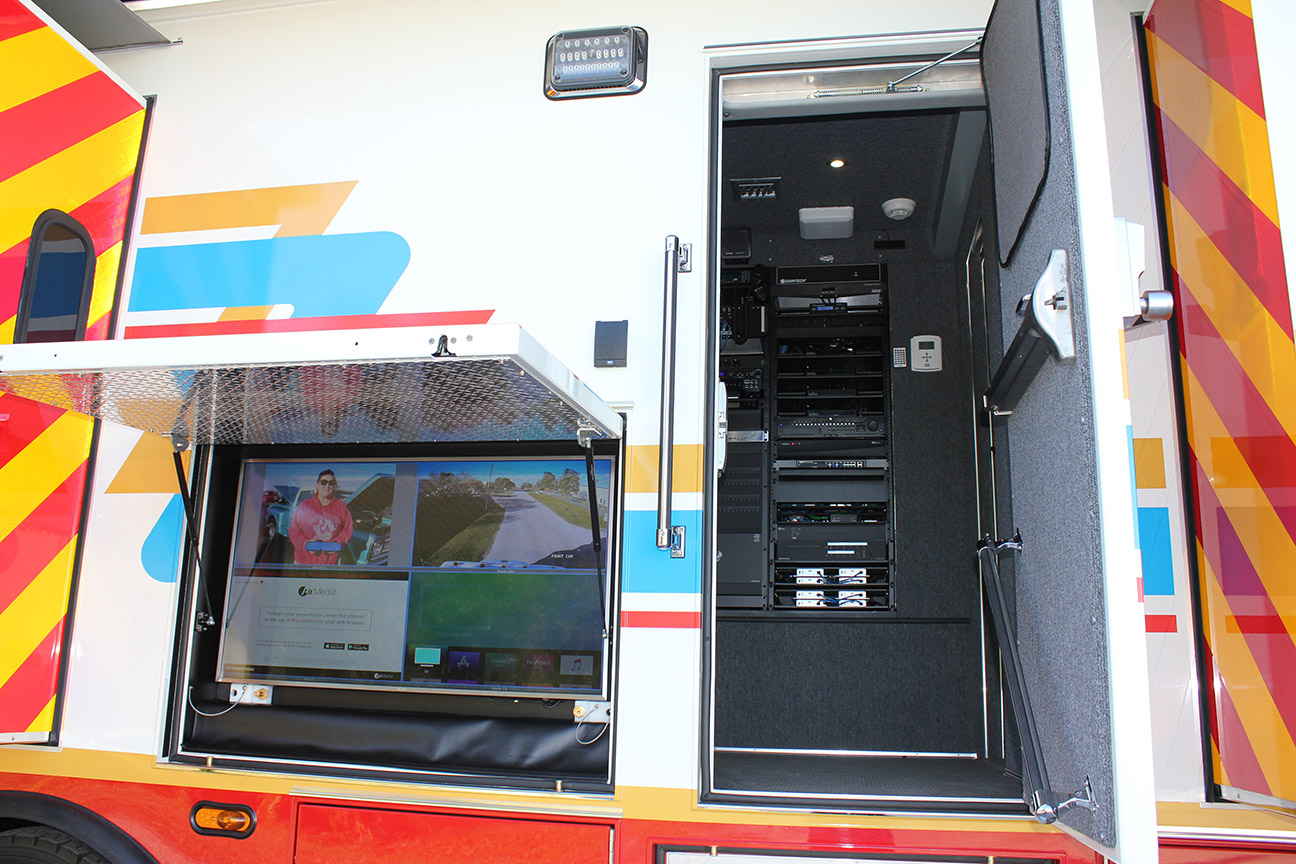

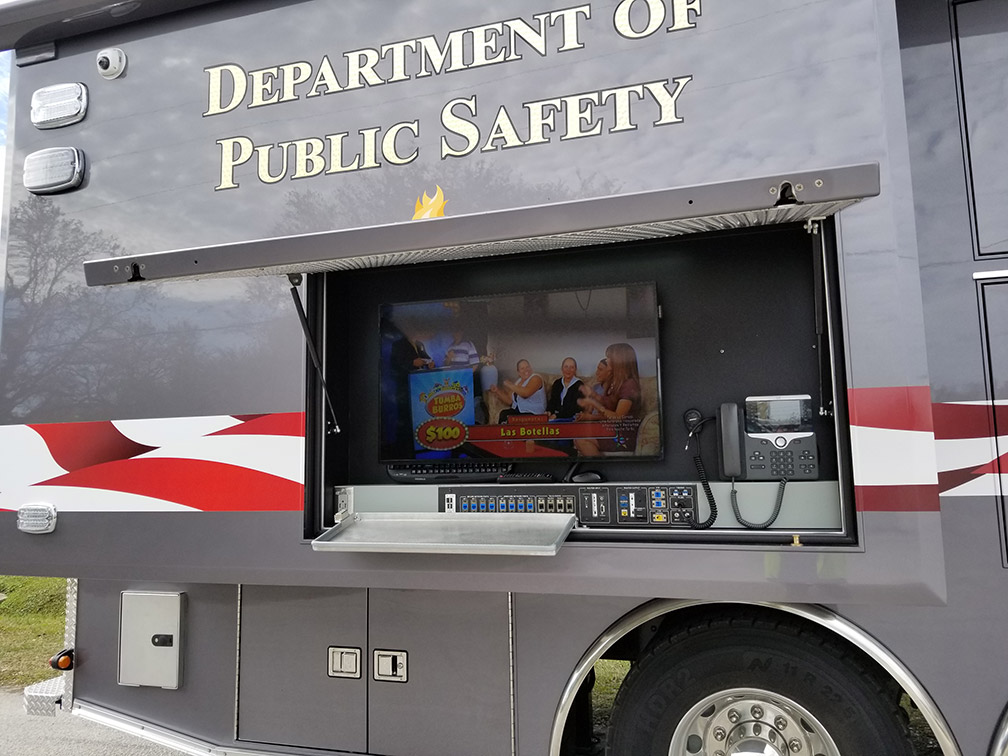

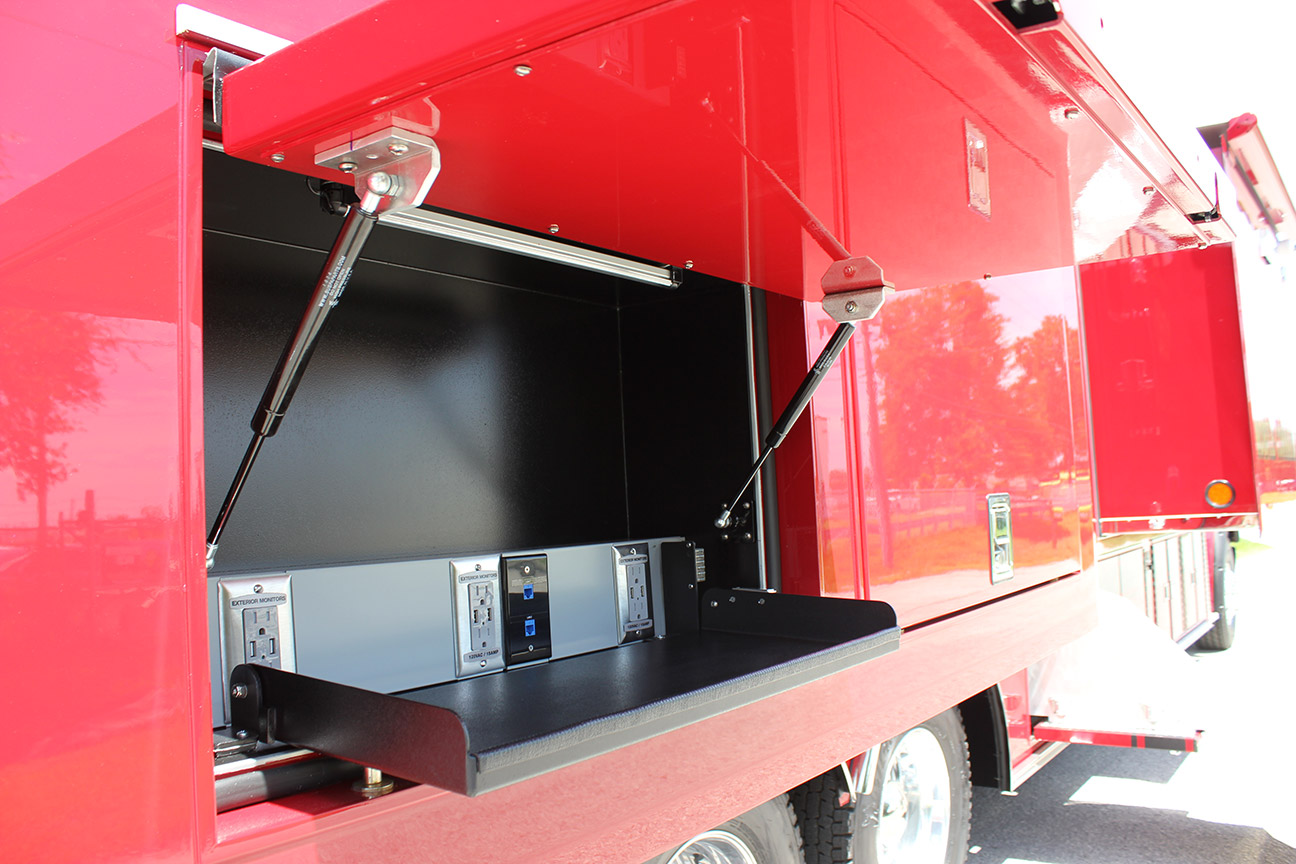

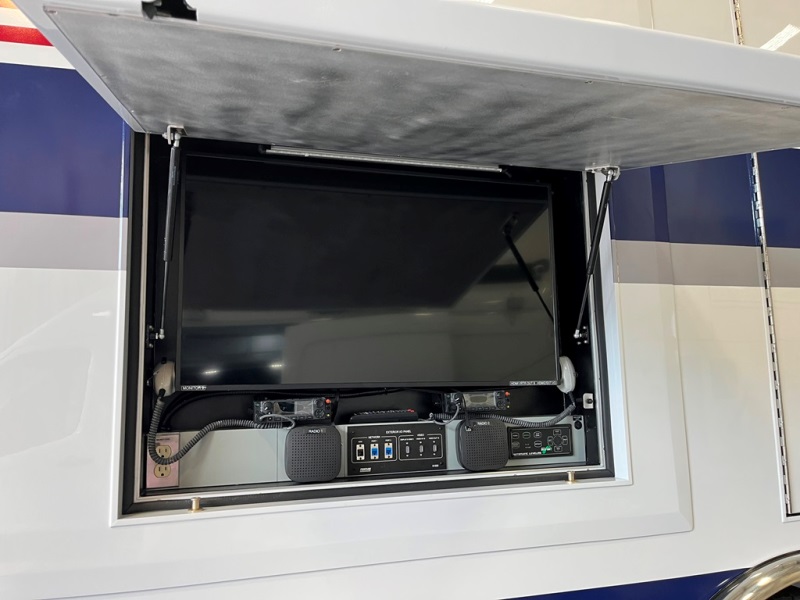

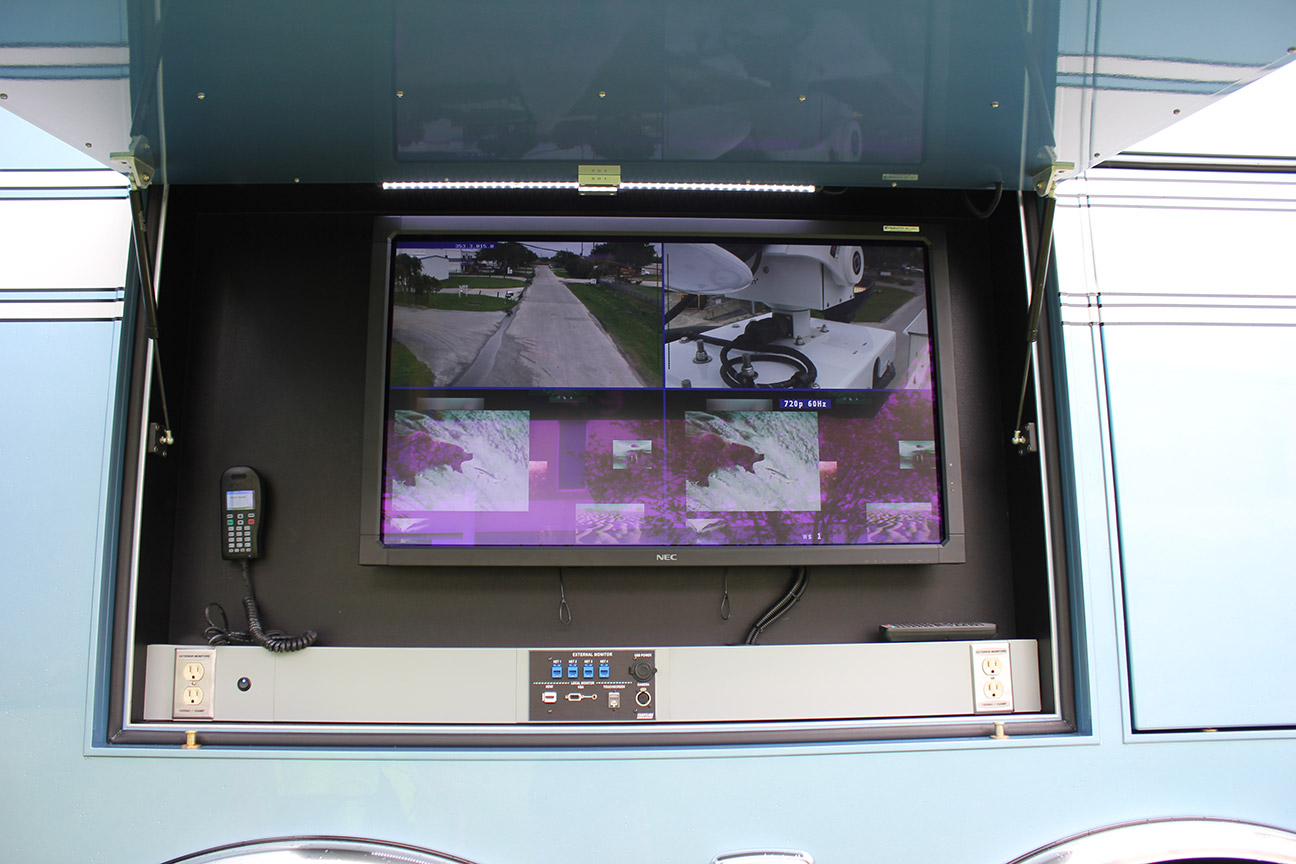

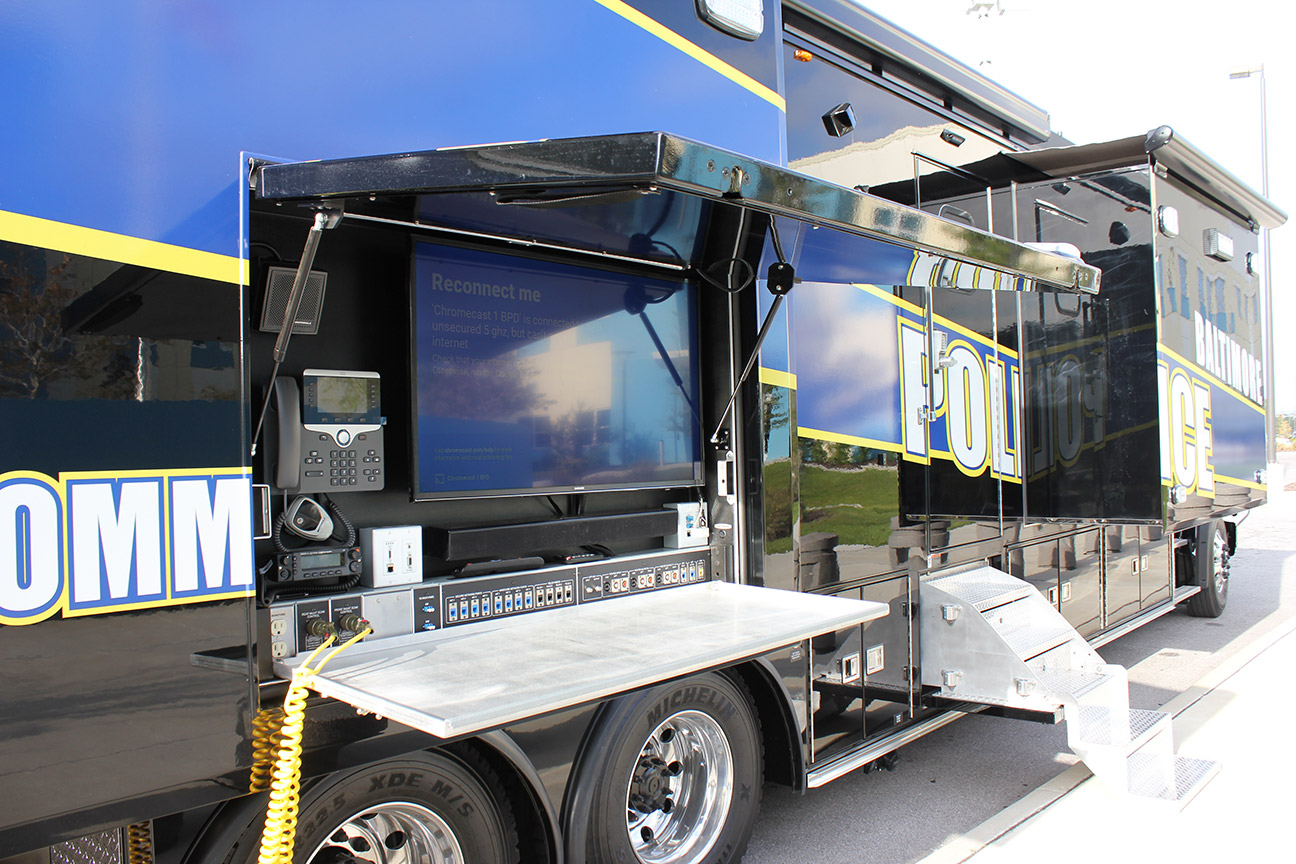

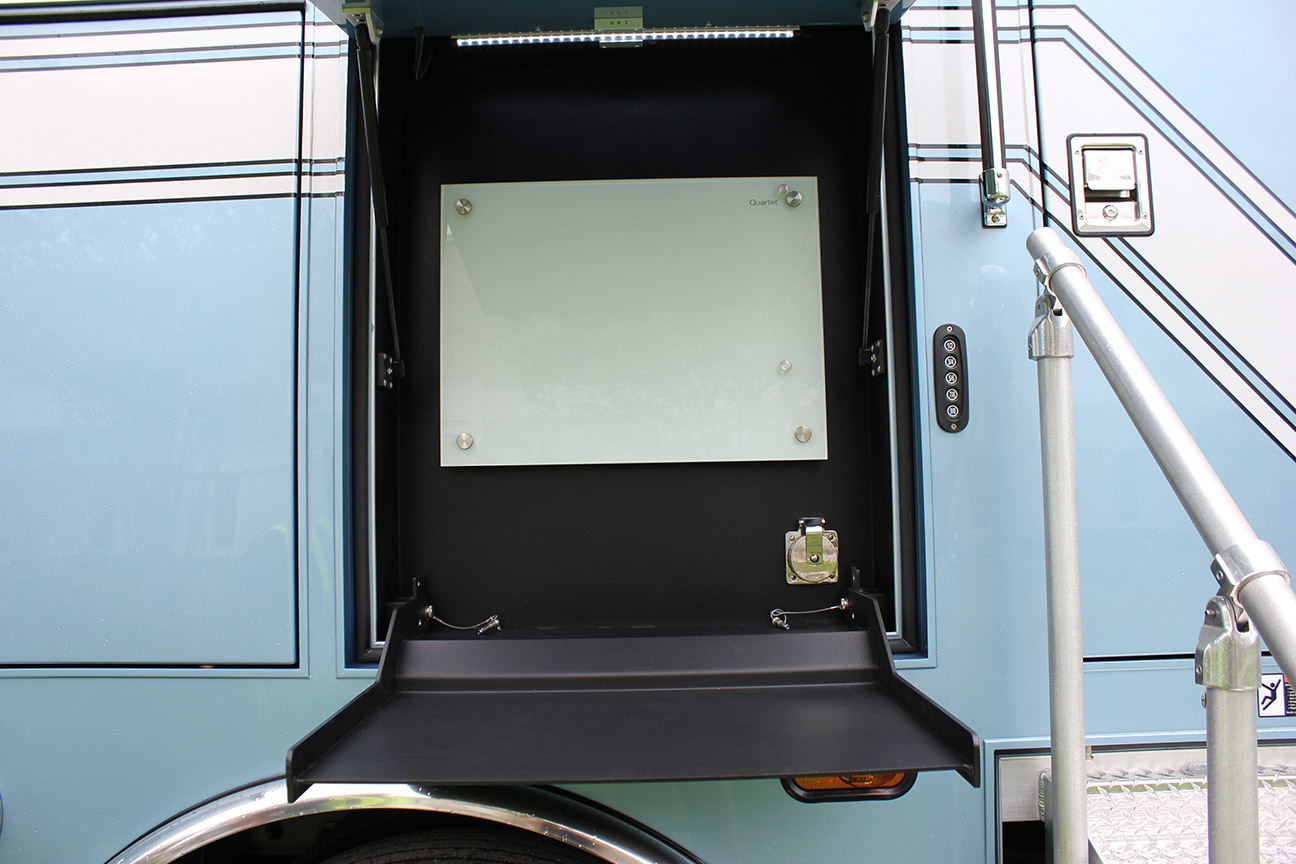

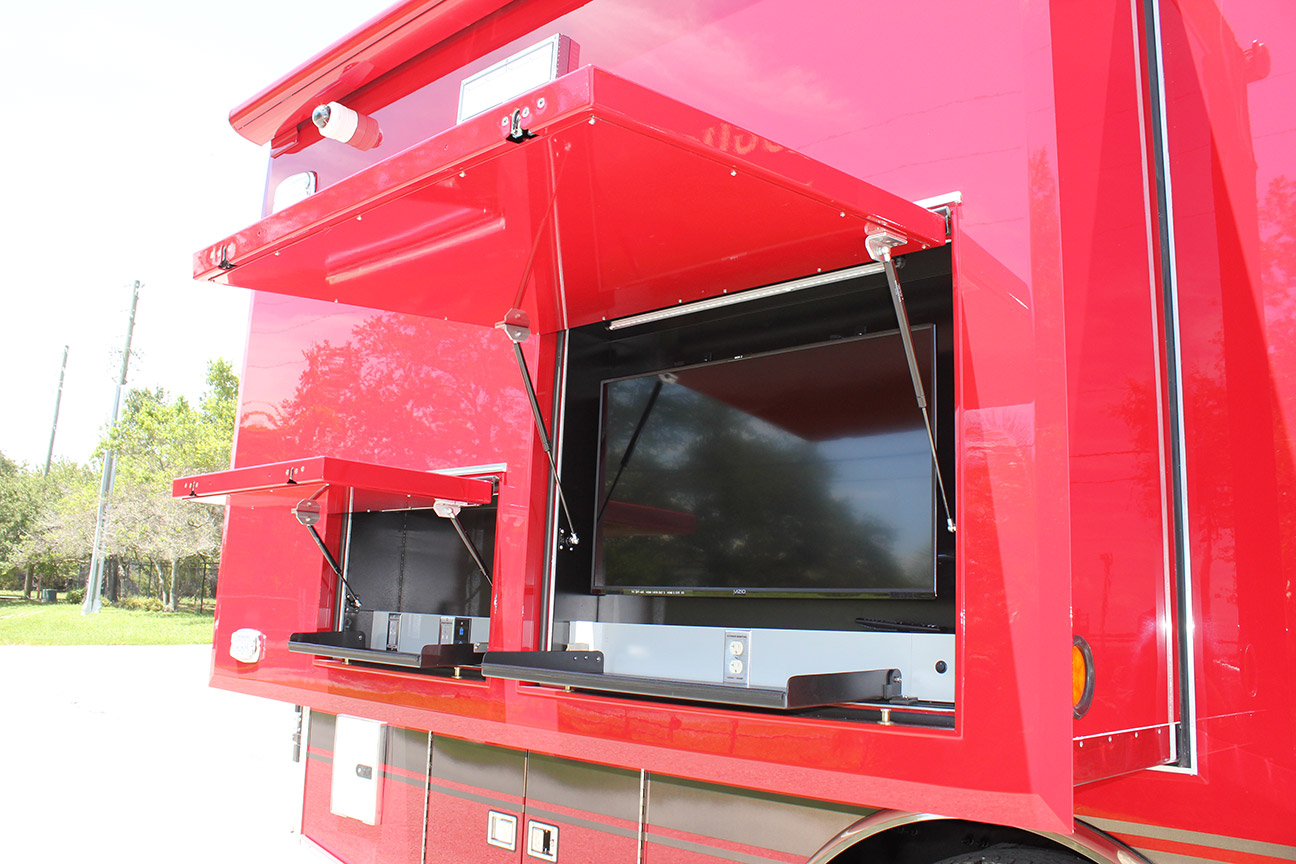

Exterior workstations and monitors
Custom communications console in cab for mounting radios and controllers
Weather-station
Apple TV
Cellular signal booster
