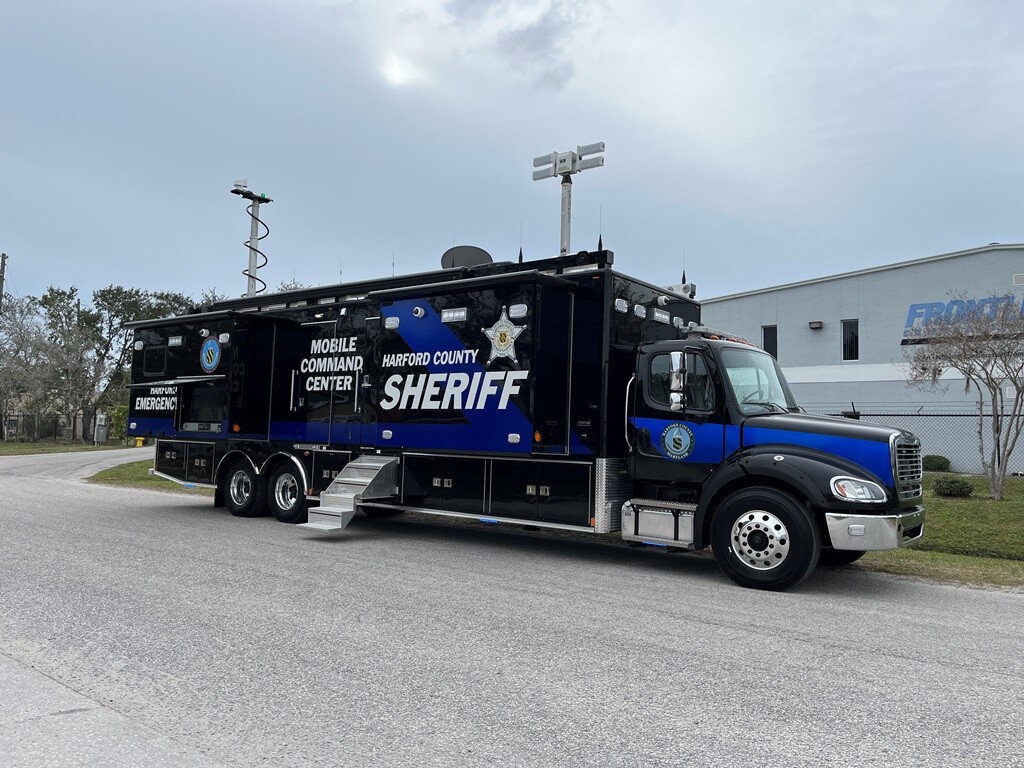

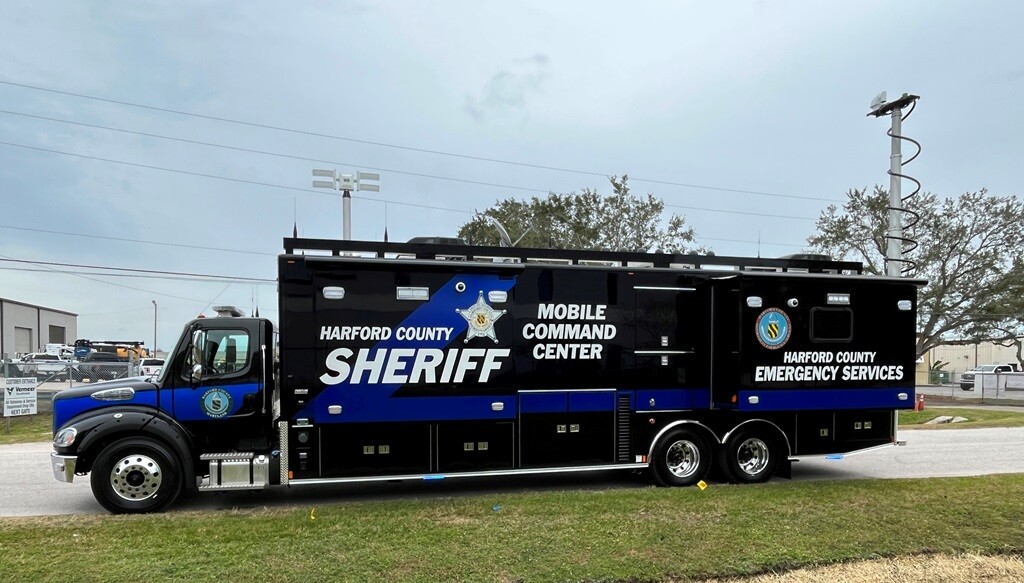

C-45X-4 Mobile Command Center

Harford County Sheriff's Office

Customer Name:  Harford County Sheriff's Office
Location: Bel Air, MD
Product Name: C-45X-4 Mobile Command Center
Job #: 91970
Dealer:  Atlantic Emergency Solutions

Project Overview:

Harford County Sheriff's Office recently received their new Frontline Communications C-45X-4 Mobile Command Center.  What a way to celebrate their 250 years of service to their community than with this state-of-the-art mobile operations center that will assist their agents in responding to active emergencies and protecting their citizens and visitors during major events. The Harford County Sheriff's Office mission is to protect the rights and dignity of their citizens with courage, honor, and integrity, and in partnership with their communities they strive to preserve peace and provide a safe environment for all.  Frontline Communications is proud to have built this custom command unit that will allow them to uphold their mission.


Technology:

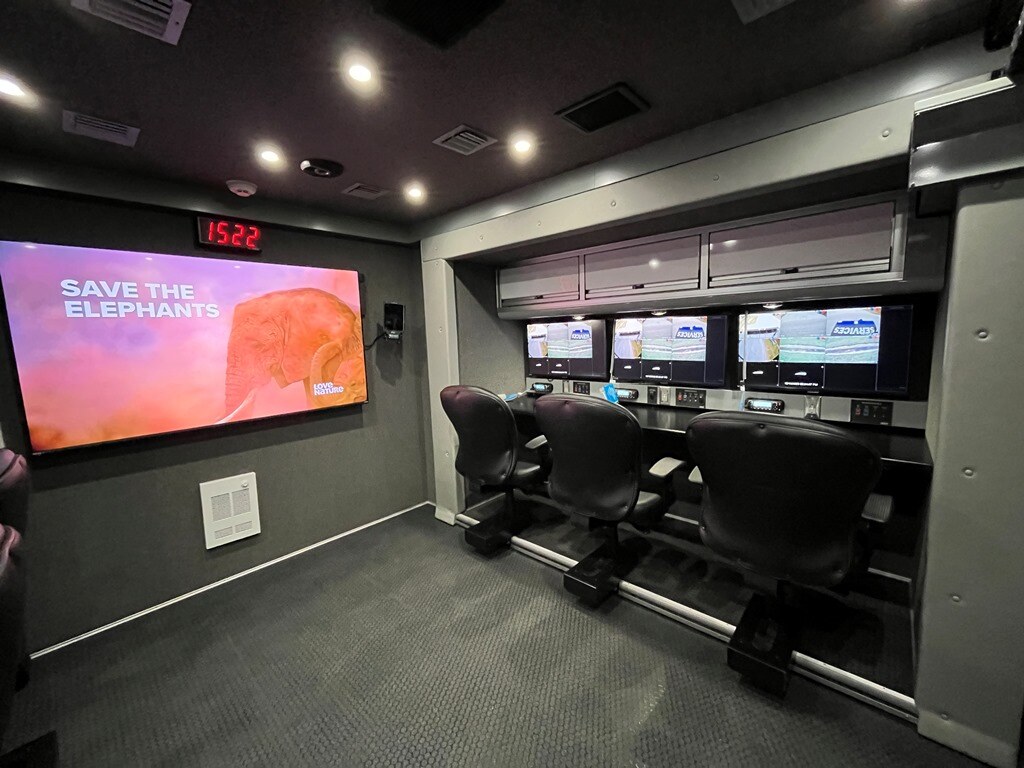

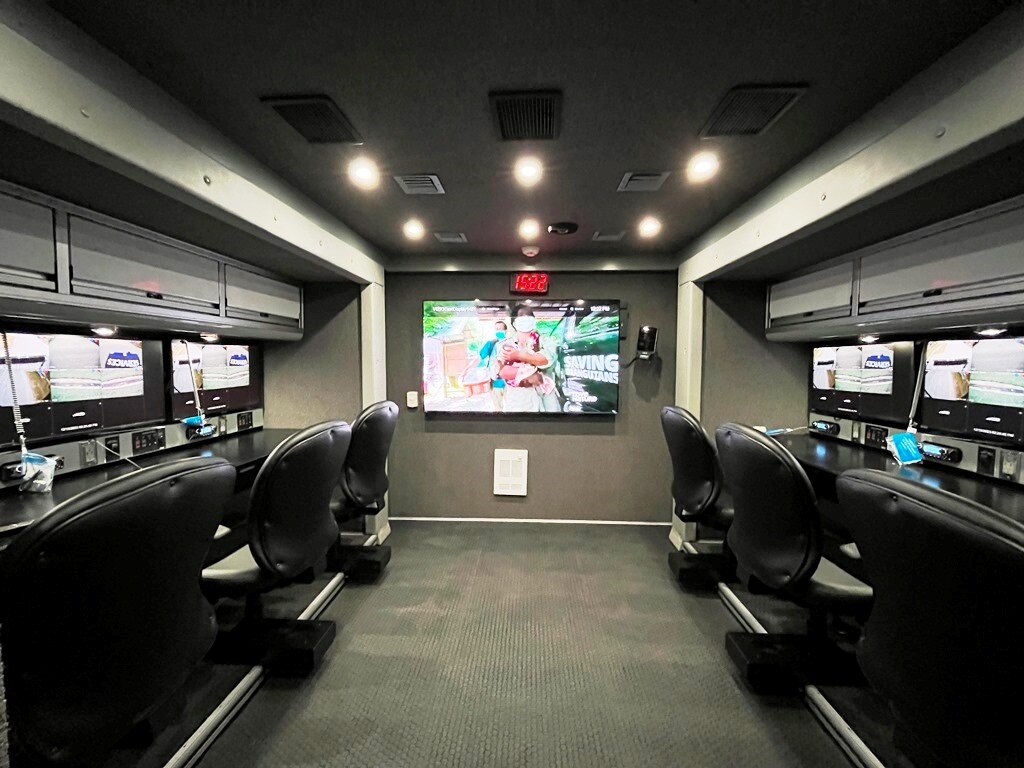

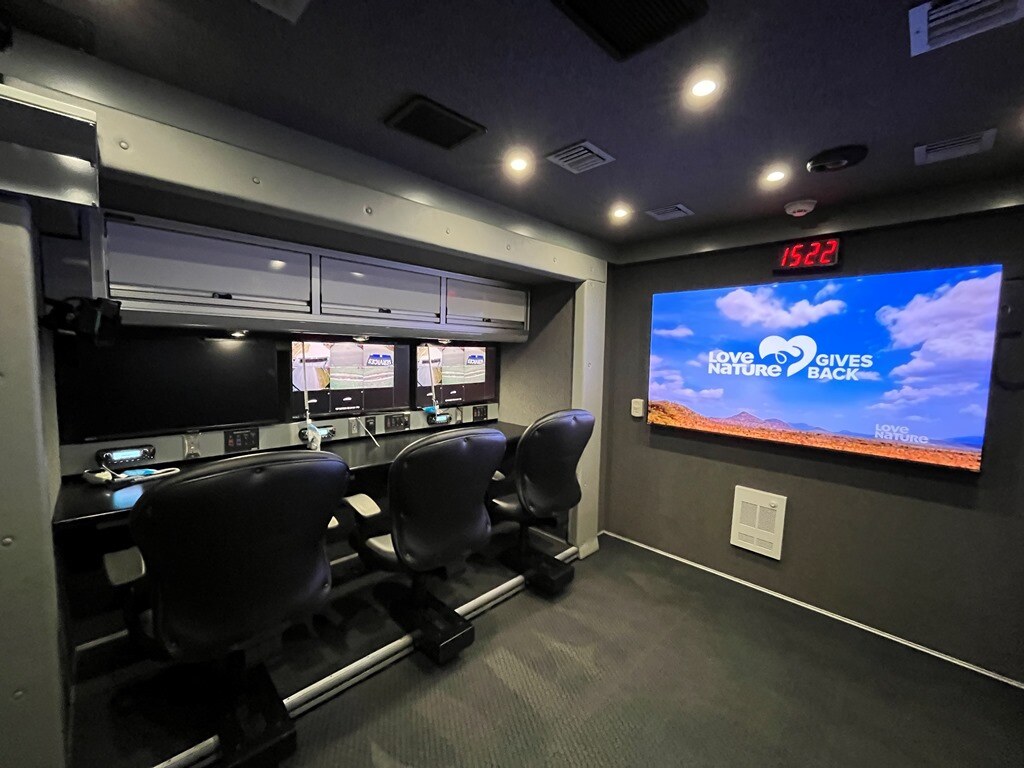

Bonded cellular and satellite package featuring Kymeta flat panel antenna, Dejero Gateway LTE router with six LTE modems, and 100GB SuperGig data plan; WTI Viper HD IP mast camera with 30x zoom; Extron 32x32 video switcher with Touchpanel system; AppleTV 4K with Siri remote and voice search; Public Address system; two Over-the-air television tuners; two DirecTV receivers; Perimeter camera system with 8-channel network video recorder; Cradlepoint 5G FirstNet ready cellular router; Cisco network switch; Setcom system for seven Motorola radios; Seven workstations each with a computer and in/out panel with connections for network, video router, display, and mast camera controls; seven 32” LED workstation monitors, one 43” monitor in slide-out, one 70” UHD Smart TV in operations area, and one 65” UHD monitor with 20-point touch screen in conference area; and a custom laptop storage assembly for seven laptops in overhead cabinet.
Download Drawings

Specifications

Vehicle Specs

Chassis

Freightliner M2-112
Overall Length

44' - 7"
Slide-outs

4
Generator Power

25kW
Workstations

7
HVAC

4 Rooftop mount units
Vehicle Options
  • Sharpvision color backup camera system
  • Coosa composite material on walls, floor, and ceiling in lieu of plywood

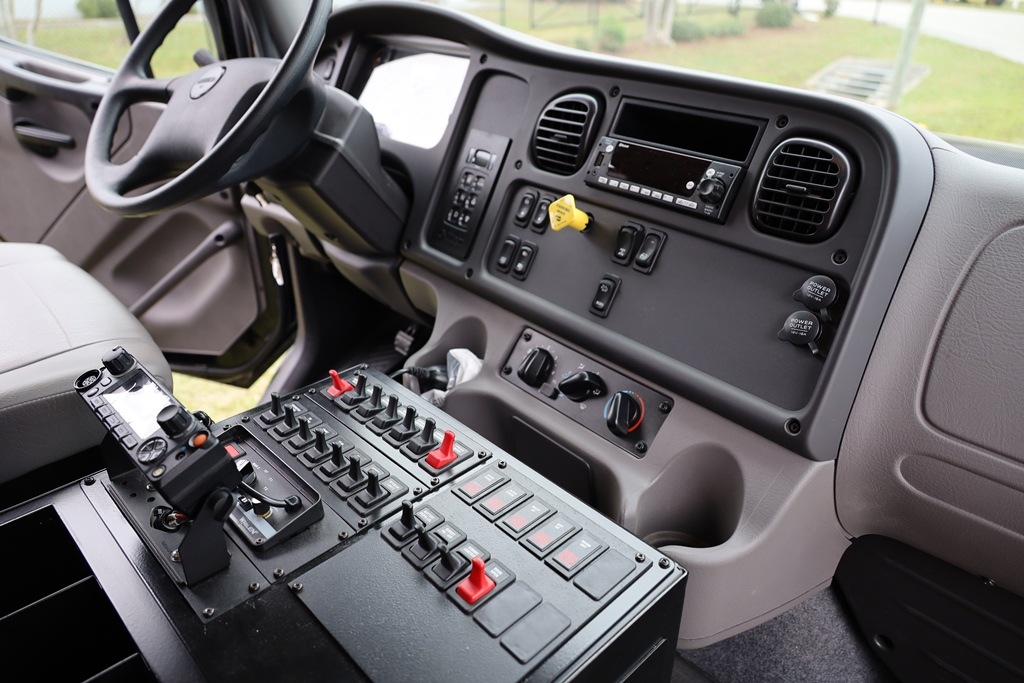

  • Whelen emergency light package
  • Will-Burt Night Scan 15’ light tower
  • Keypad electric lock system for entry and compartment doors

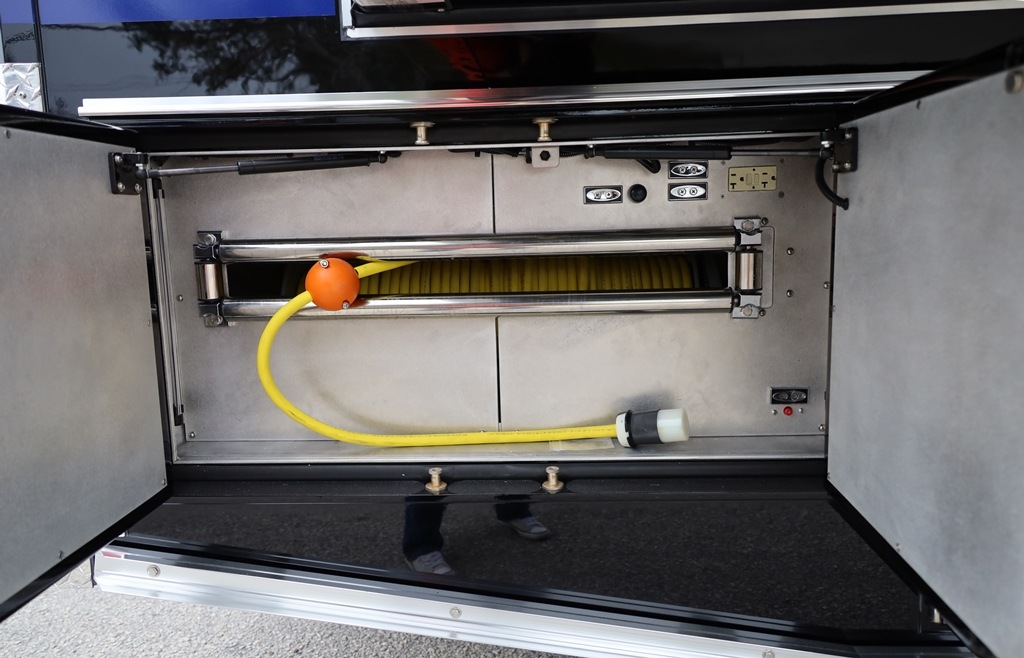

  • 100A shore power upgrade with 30A auto-eject
  • Battery parallel system for vehicle and aux batteries
  • Blue LED underbody perimeter lighting
  • Operations entry door features porch light and grab handle that illuminate when entry steps are deployed, cipher lock, and panic bar exit device

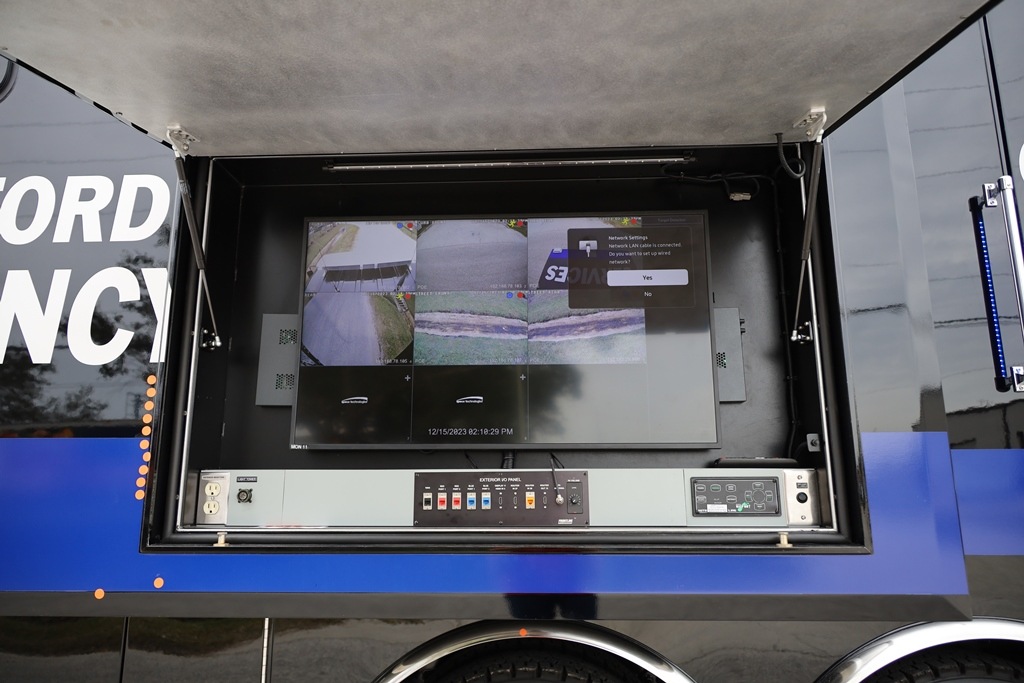

  • Exterior monitor compartment with 43” monitor, clip-on tray for laptop, jack controls, and in/out panel for network, video, router, and PA system control

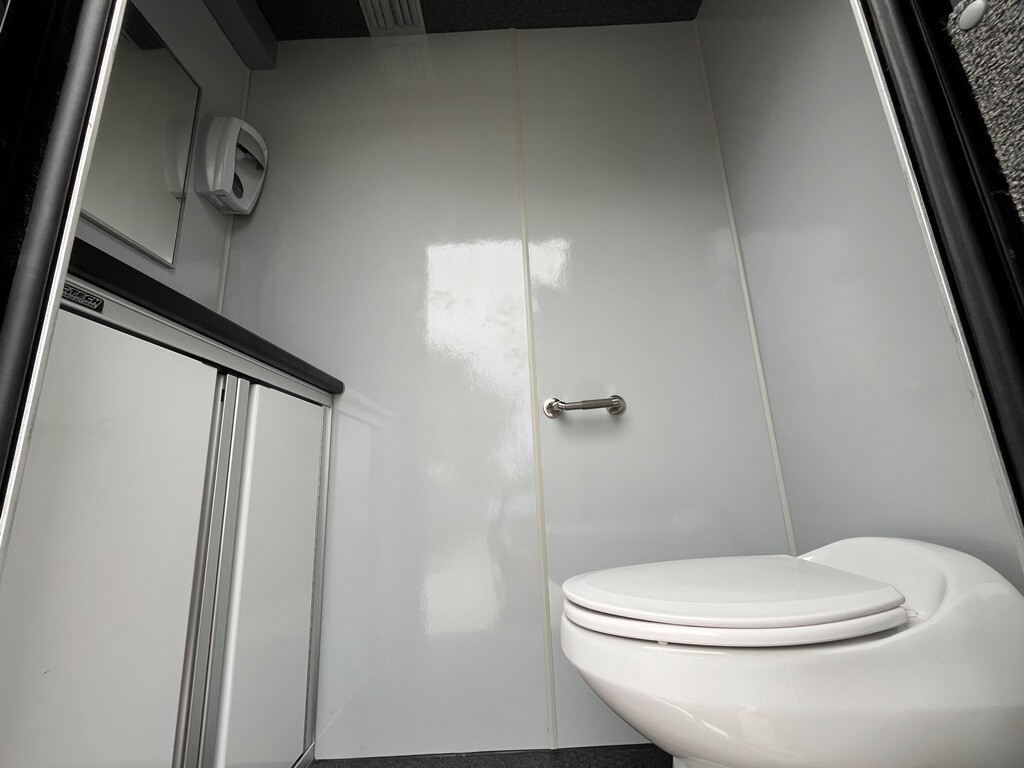

  • Wet lavatory with exterior entrance

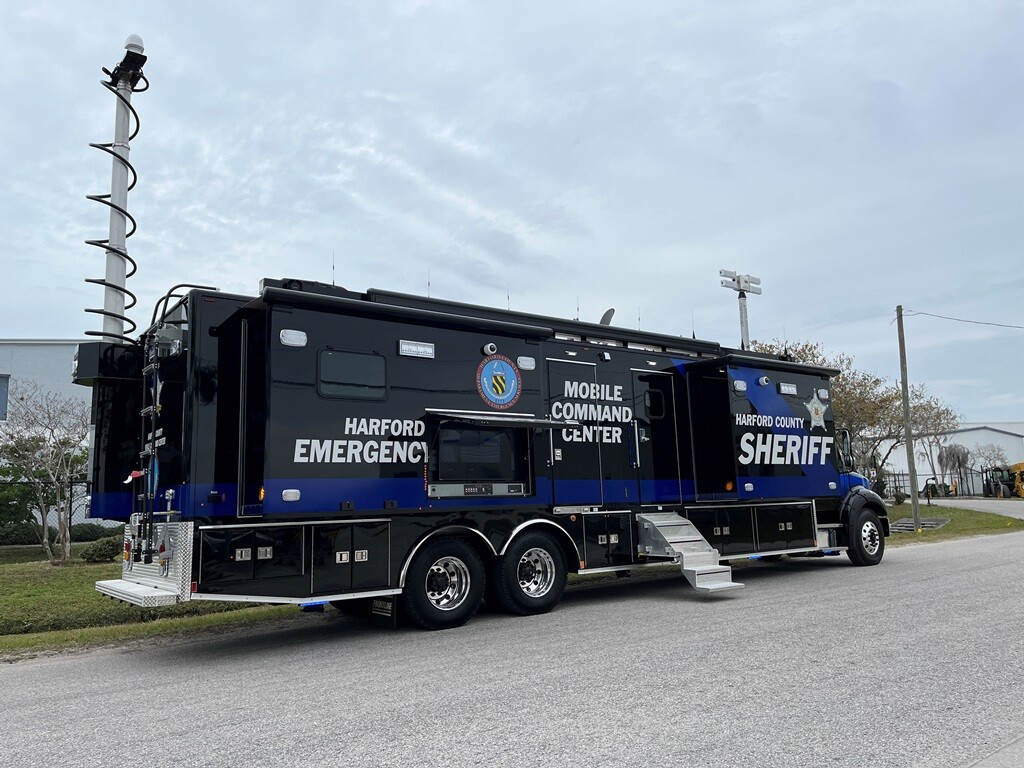

  • Will-Burt 42’ mast with shroud painted to match vehicle
  • Solid-surface countertops
  • Three drop-down work surfaces at bench seats

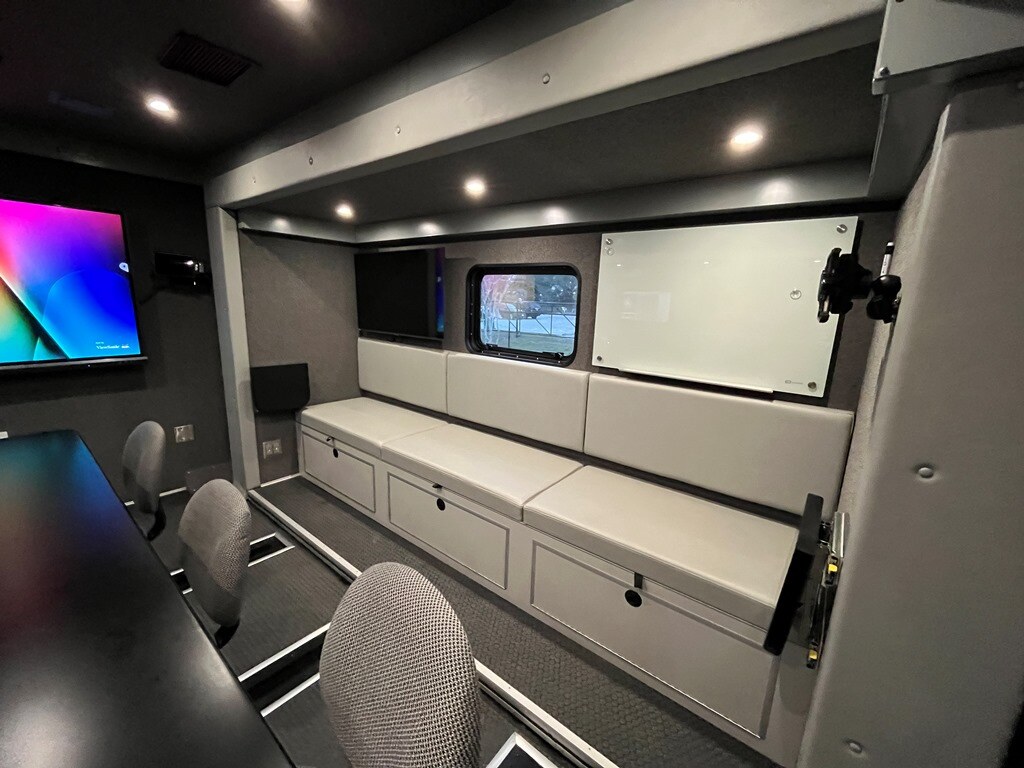

  • Bench seating in conference room slide-outs feature exterior panels to access under-cushion storage

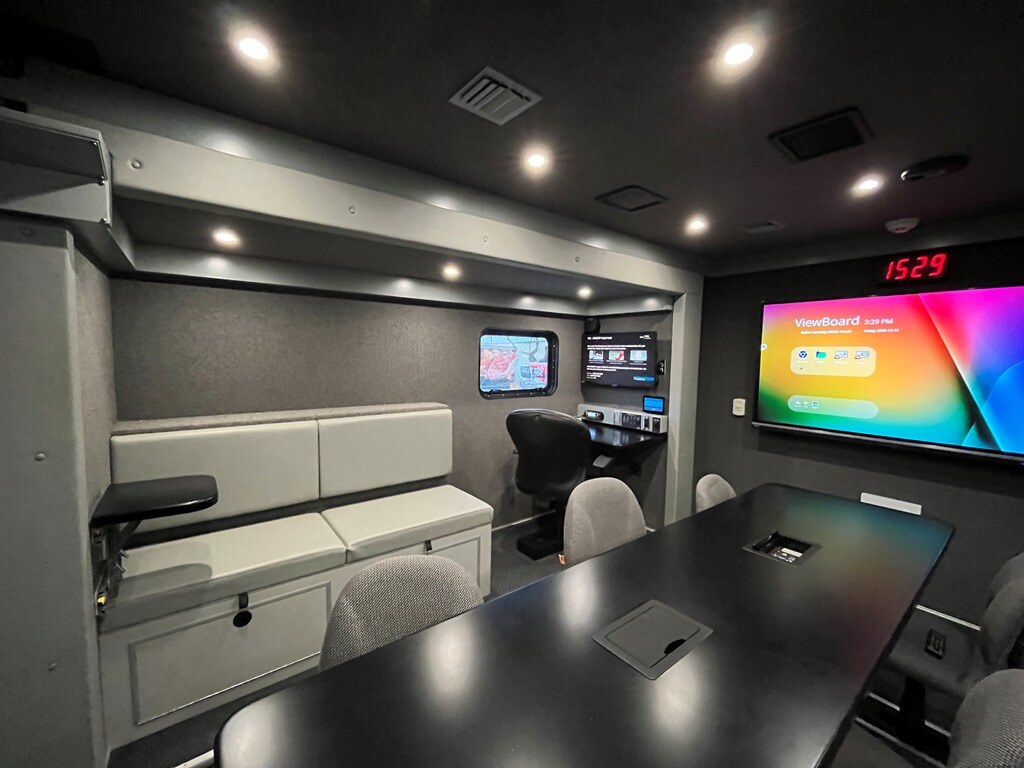

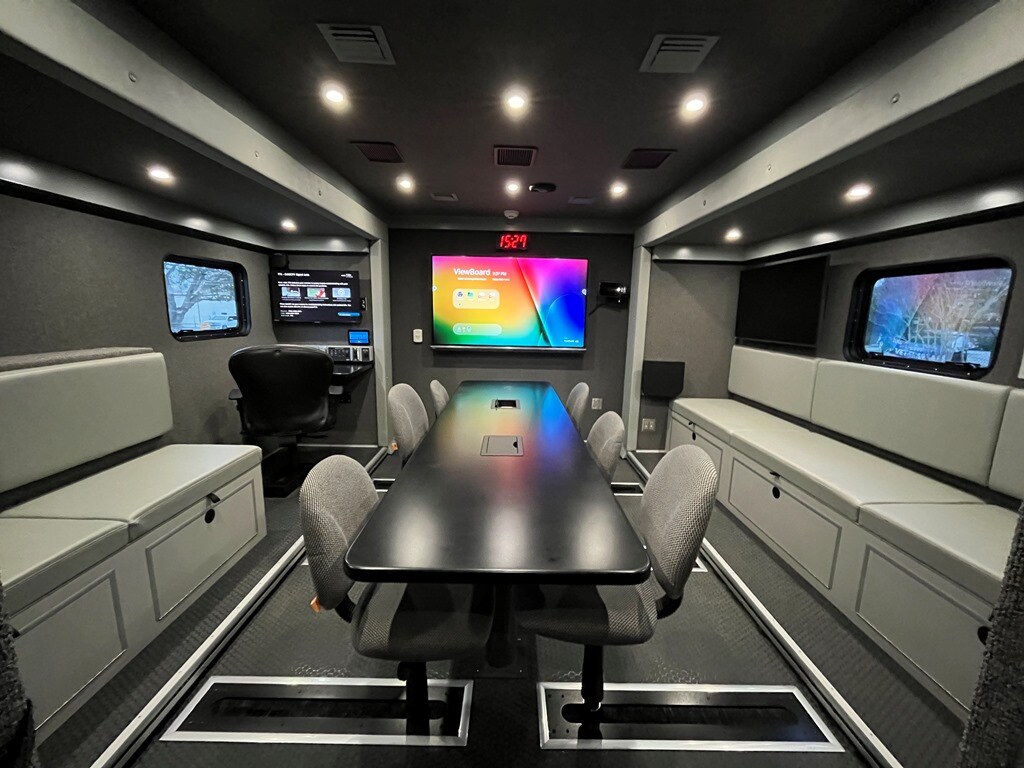

  • Conference table with recessed sliding pedestal seat mounts
  • Two full-height equipment racks with lockable mesh doors
